Bore size [mm]: 20
No load speed [rpm]: 2500 - 5600
Voltage (V): 18
Battery type: Li-ion

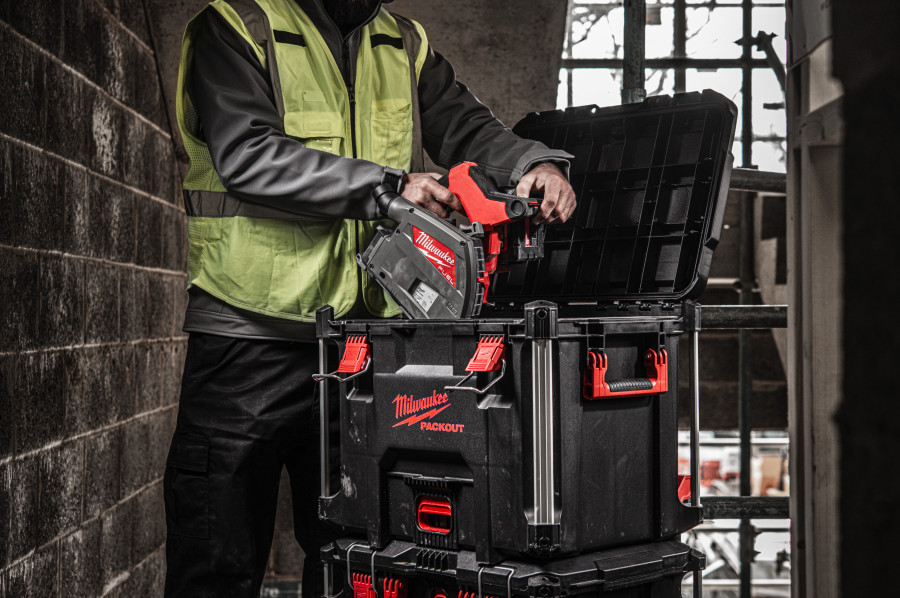

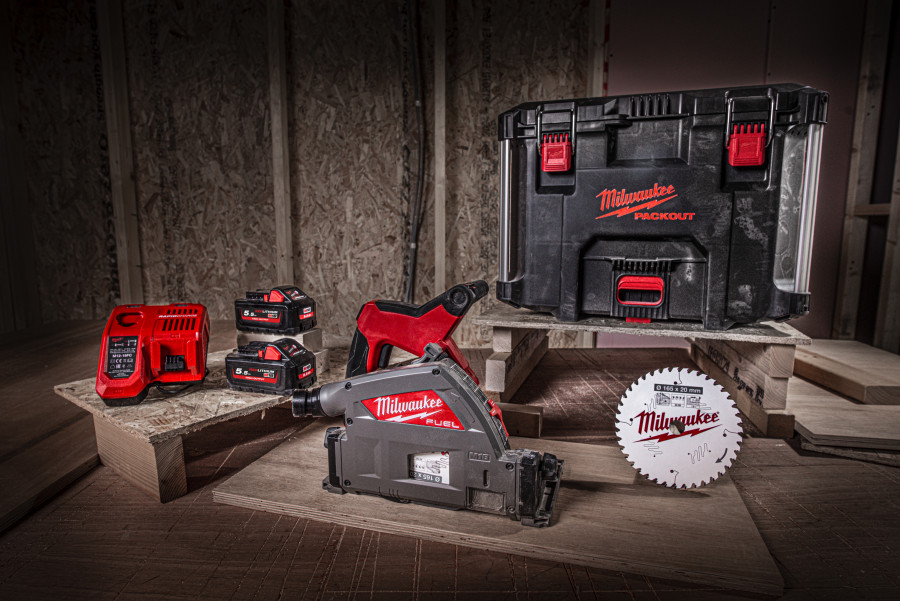

Supplied in: PACKOUT™ XL tool box
Blade diameter [mm]: 165
Weight with battery pack (kg): 4,9 (M18 HB5.5)
Max. cutting depth [mm]: 59
Charger included: M12-18 FC
Battery included: 2 x M18 HB5.5
Technology: FUEL™
System: M18
The M18 FUEL™ plunge saw delivers the power to rip cut at the same feed rate of an equivalent AC circular saw - with the ability to cut 45 metres of 18 mm plywood on one 5.5 Ah battery charge

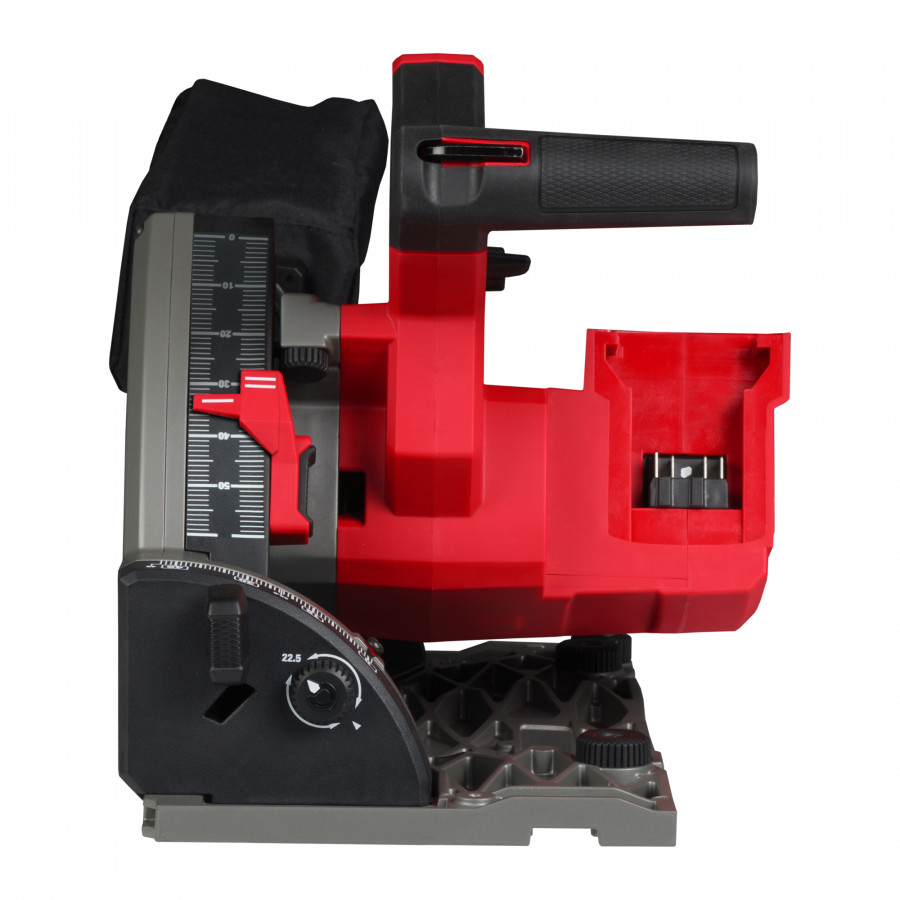

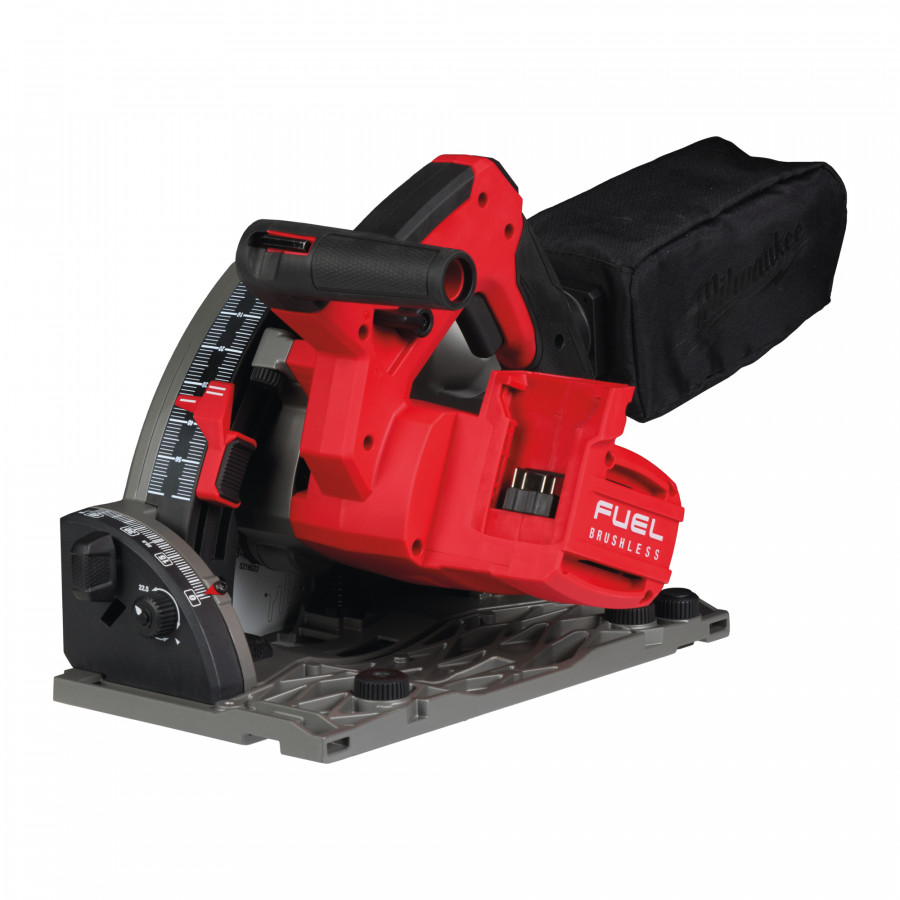

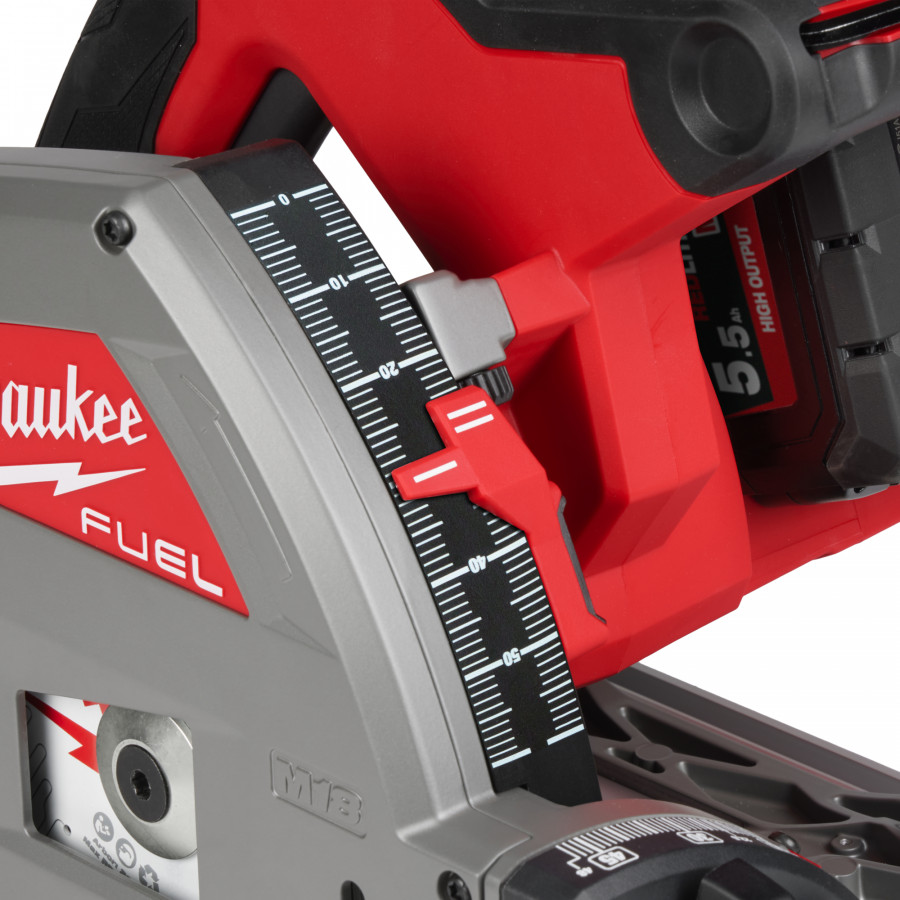

The depth adjustment has two scales, one for on the rail and one for off the rail, this can easily be adjusted by the press of a button

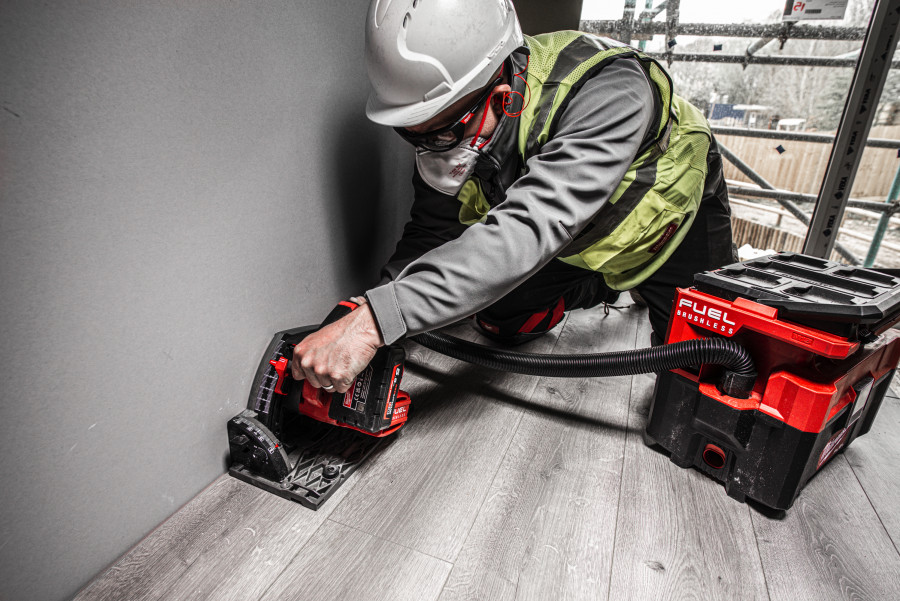

Flat sided upper guard, the blade is only 12 mm from the outer edge of the guard allowing the saw to cut very close to a wall

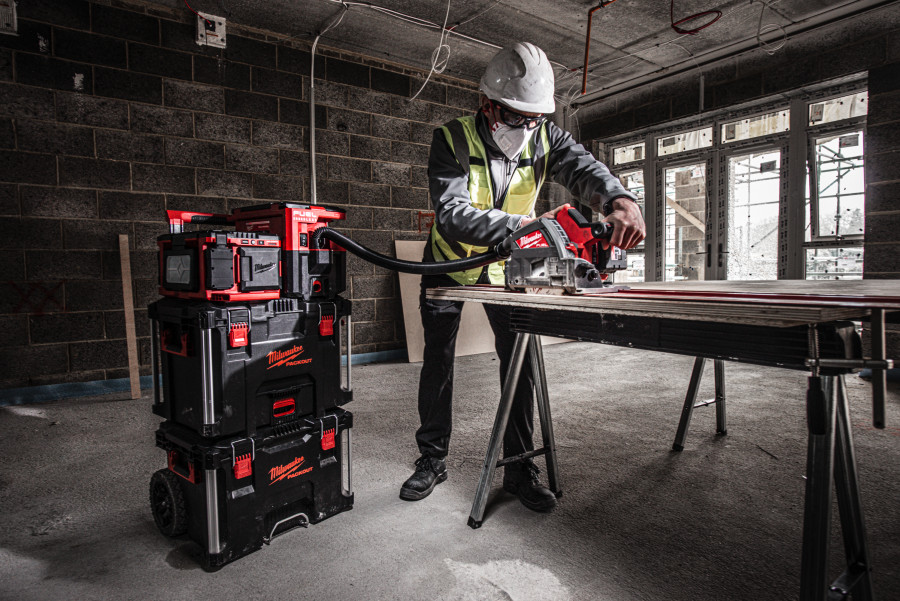

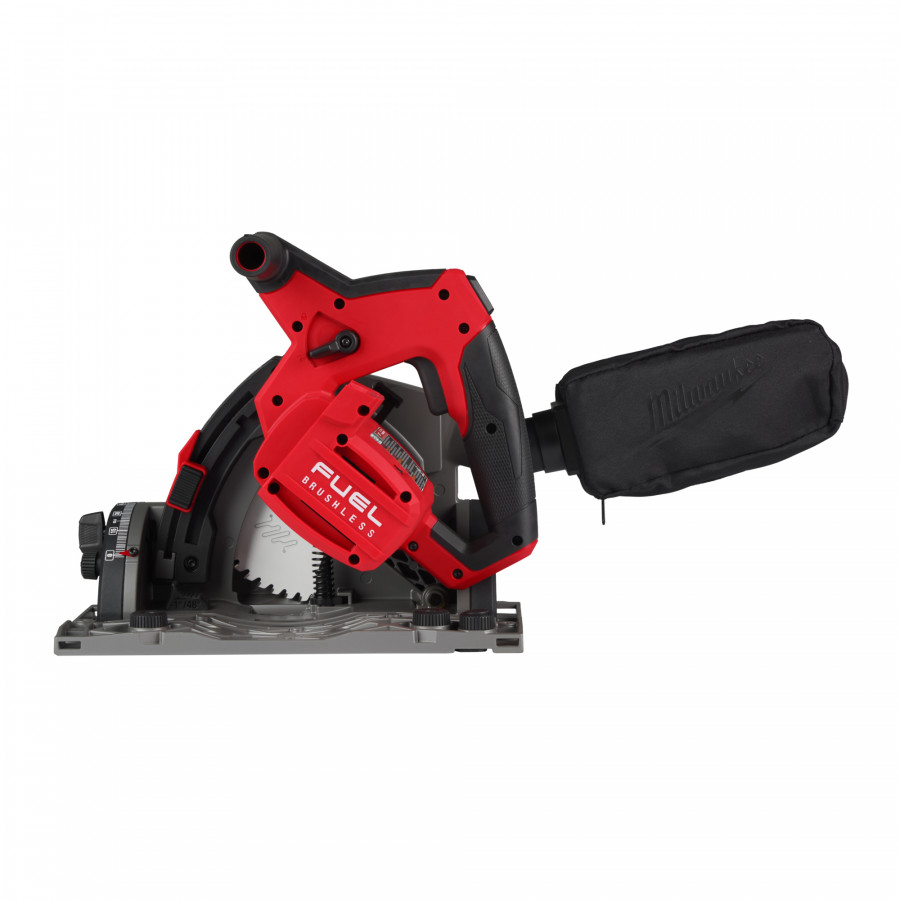

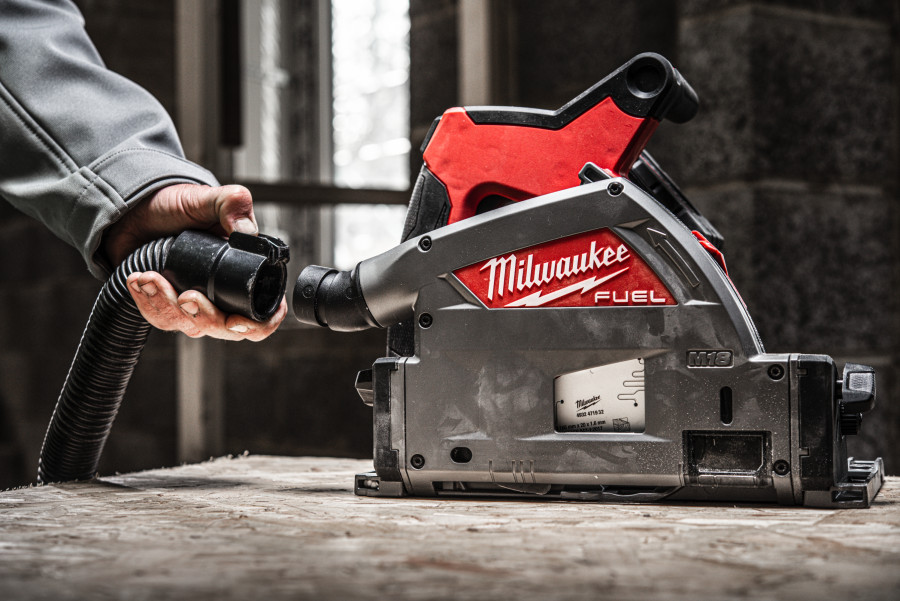

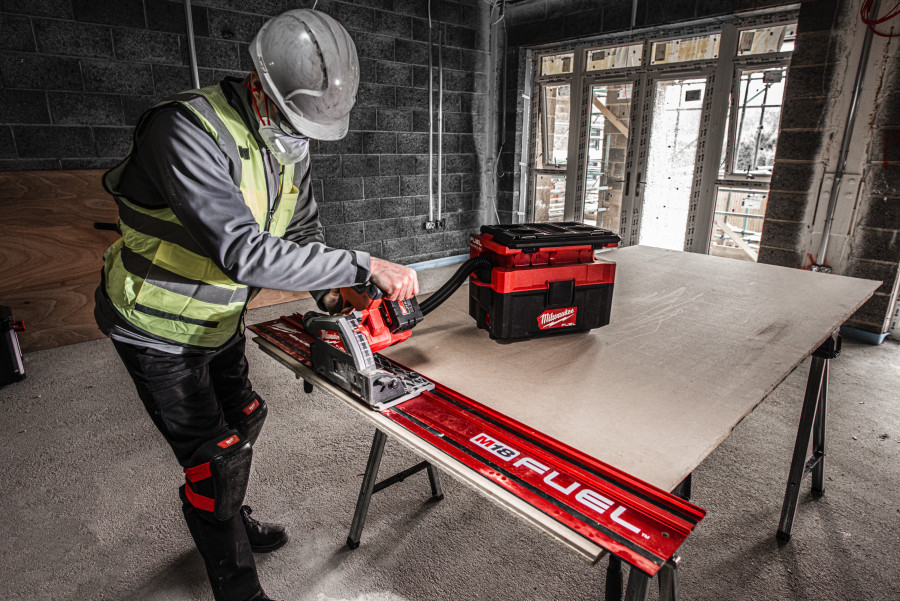

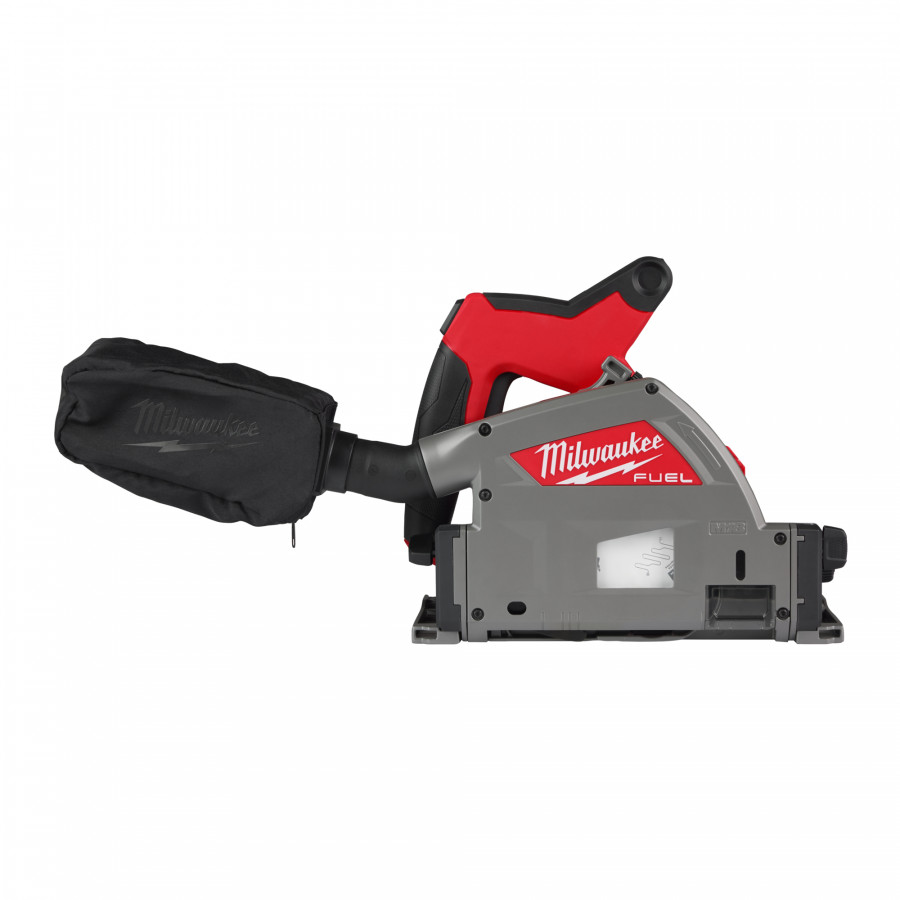

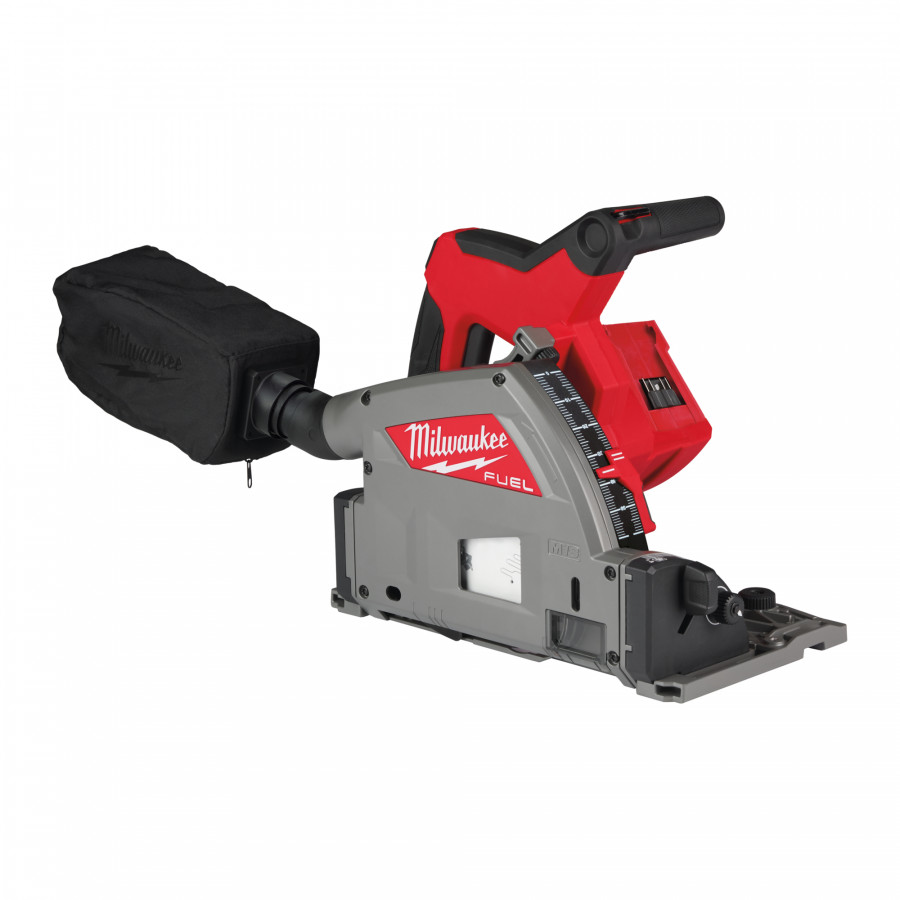

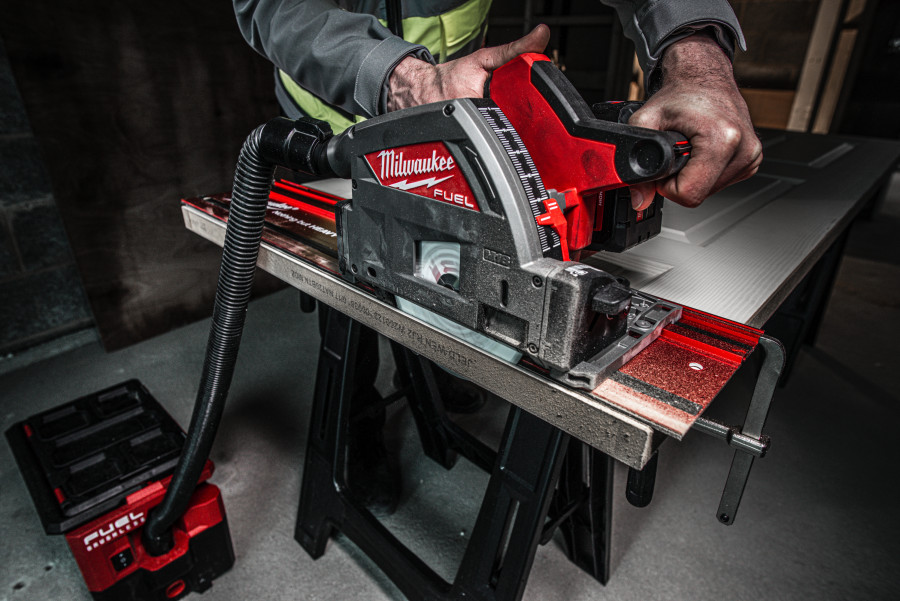

This saw has also been designed for optimal dust extraction on the job site, due to the enclosed guard. It is compatible with the DEK26 system and is also supplied with a dust bag
Scoring stop allows a 1 mm back cut to made minimising any splintering in laminated materials
The bevel adjustment has stops at 22.5°, 45°and 48°. It also has a -1 for making a back cut
The saw also has a cut line window on the side for those cuts where you need to see the front of the blade against the material and also a sprung loaded riving knife
Easy blade change system locks the switch off and the blade in position while the blade can be changed
Retractable riving knife allows the riving knife to stay in position even when making plunge cuts
Variable speed from 2500 rpm to 5600 rpm
The DNA of our FUEL™ platform redefines the balance of cordless technologies. MILWAUKEE®'s POWERSTATE™ brushless motor, REDLITHIUM™ battery pack and REDLINK PLUS™ electronic intelligence delivering outstanding power, run time and durability
Flexible battery system: works with all MILWAUKEE® M18™ batteries
