High-Quality vacuum cleaner for the metal industry and automotive sector – oil filter basket allows separation of metal shavings and emulsions, suitable for collecting oil and coolants.
Technical Specifications:
Power supply (V/Hz): 220 - 240 / 50 - 60
Airflow (l/s): 179
Vacuum (mbar/kPa): 250/25
Container capacity (l): 90
Nominal power (W): 3.3 kW
Standard hose diameter: DN 38
Cable length (m): 8.5
Sound pressure level (dB(A)): 76
Weight without accessories (kg): 38.8
Dimensions (length x width x height) (mm): 570 x 700 x 1140
Features:
Robust steel frame with handle

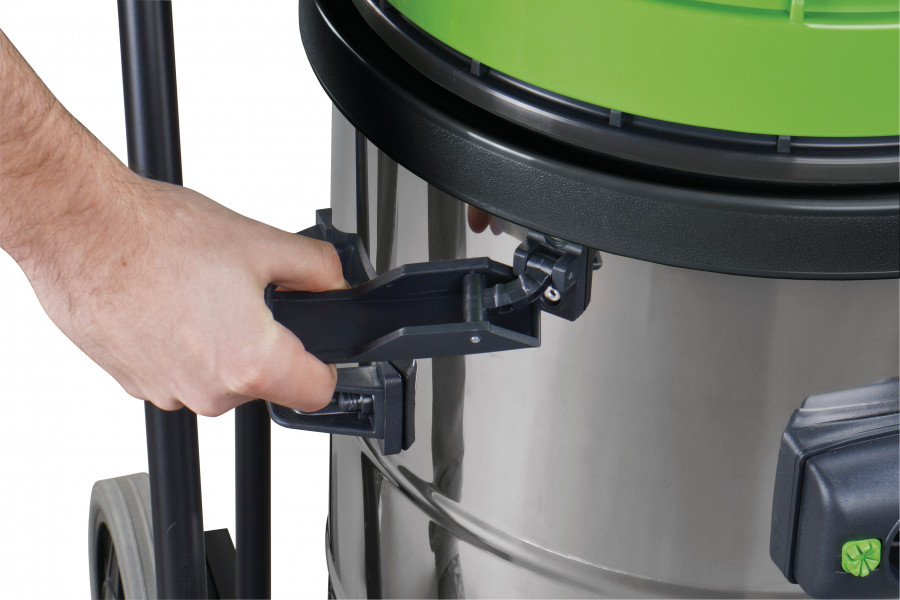

Tilting mechanism for easy container emptying
Designed for the suction of liquids, shavings, and other solid particles
Ball valve in the container for liquid drainage

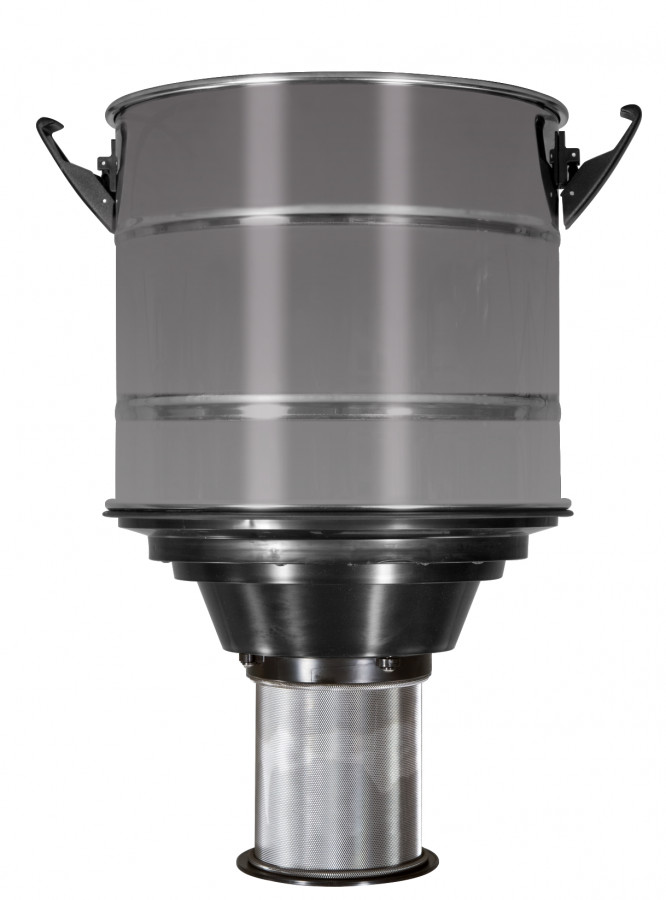

Filter basket with integrated oil filter between the container and motor

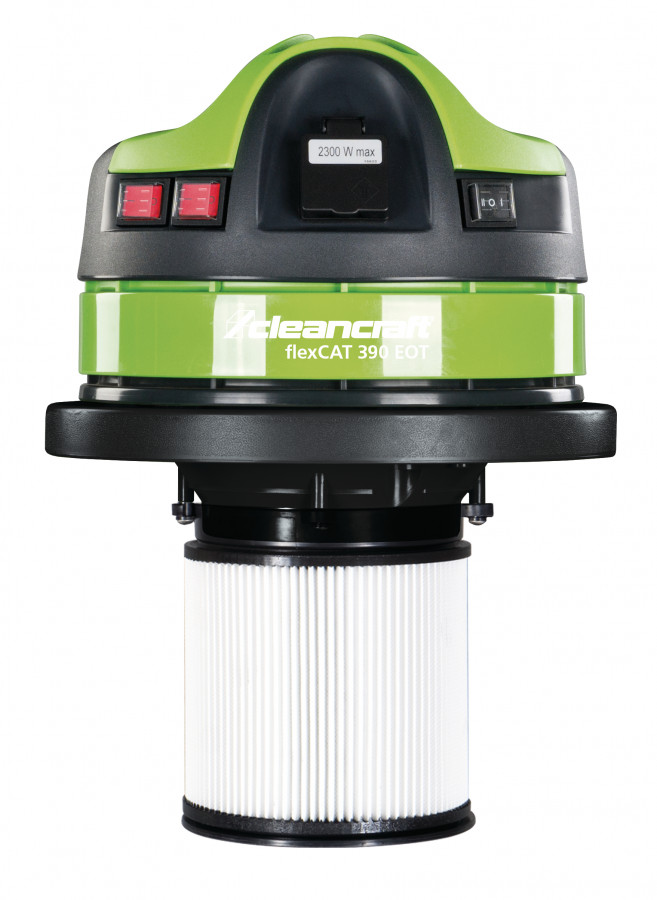

Three motors equipped with copper windings and motor protection
Ideal for demanding cleaning tasks and long-term use
Additional seal between motor head and container, resistant to oil and chemical residues
Container hose connection with locking system to prevent accidental disconnection during cleaning
Float system ensures safe shutdown when the container is full
Two separate motors that can be switched on or off – the operator can choose how many motors are running

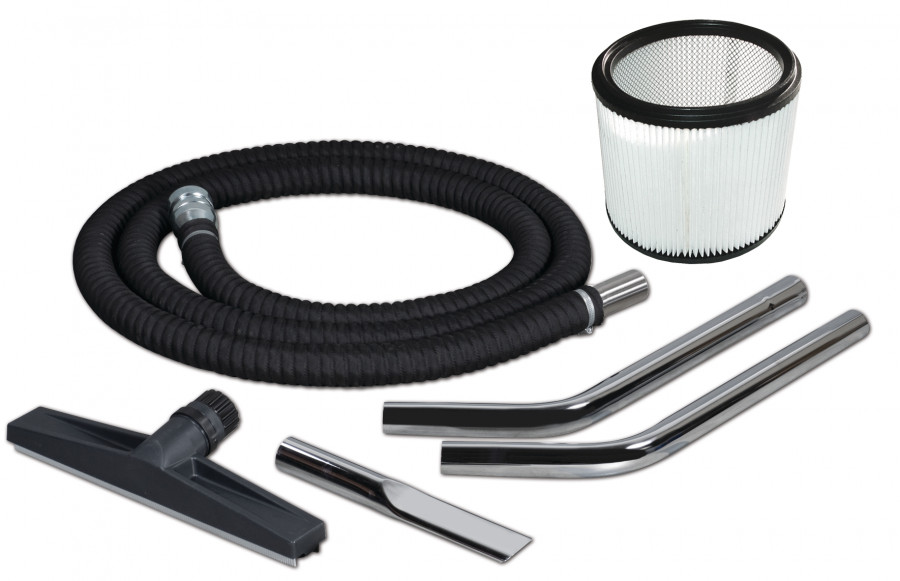

Equipment:
Oil-resistant, antistatic hose, 3 m
Tool socket
Suction tubes, 2 pieces, metal
Floor nozzle
Oil filter
Filter basket with float
Crevice nozzle
All pictures and videos are illustrative.
