Inverter type TIG welding machine. Suitable for welding of aluminium, mild steel and stainless steel.
Welding processes - AC TIG, DC TIG, MMA (electrode welding) and DC TIG Pulse.
Power factor correcting PFC for trouble-free use also on extension cable.

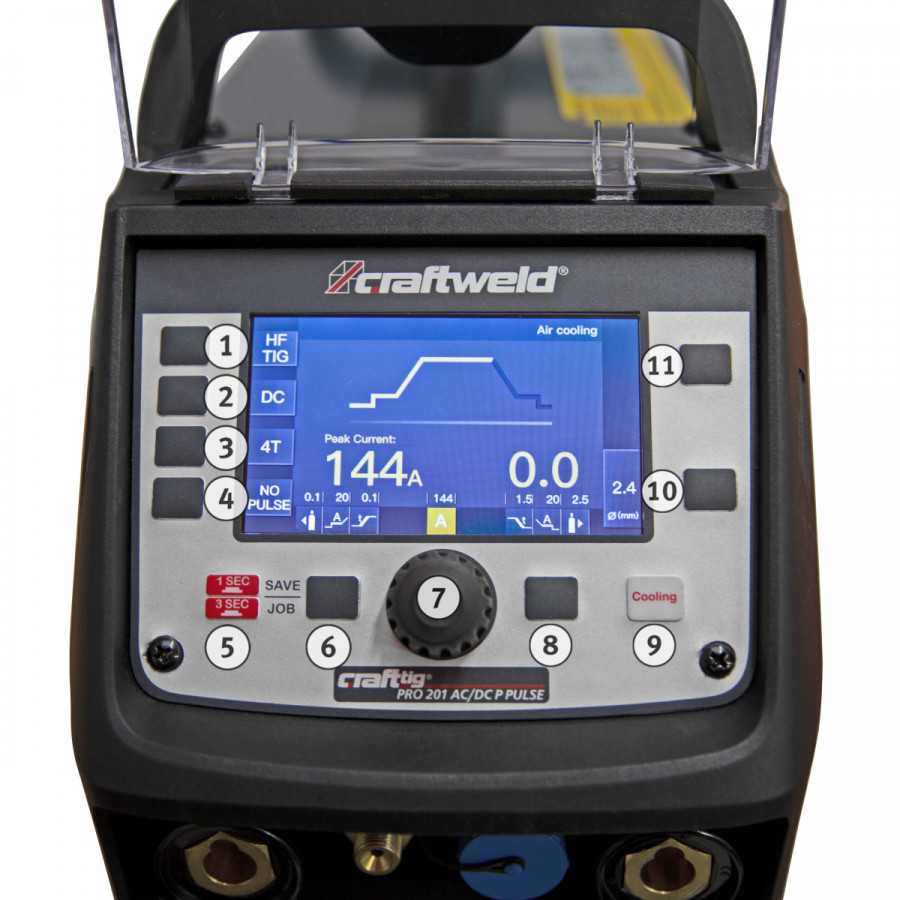

Precise setting and display of welding parameters via a large LCD screen.
Equipped with a tacking function of 0.2 s.
9 (nine) programs can be stpored in memory.

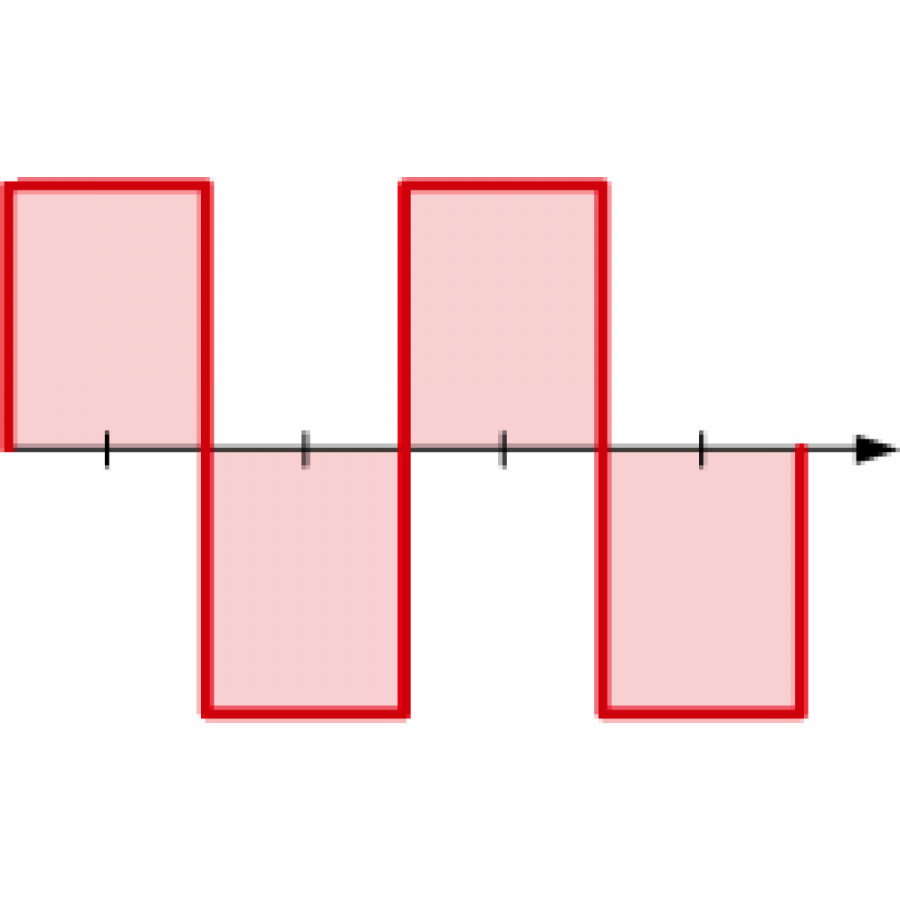

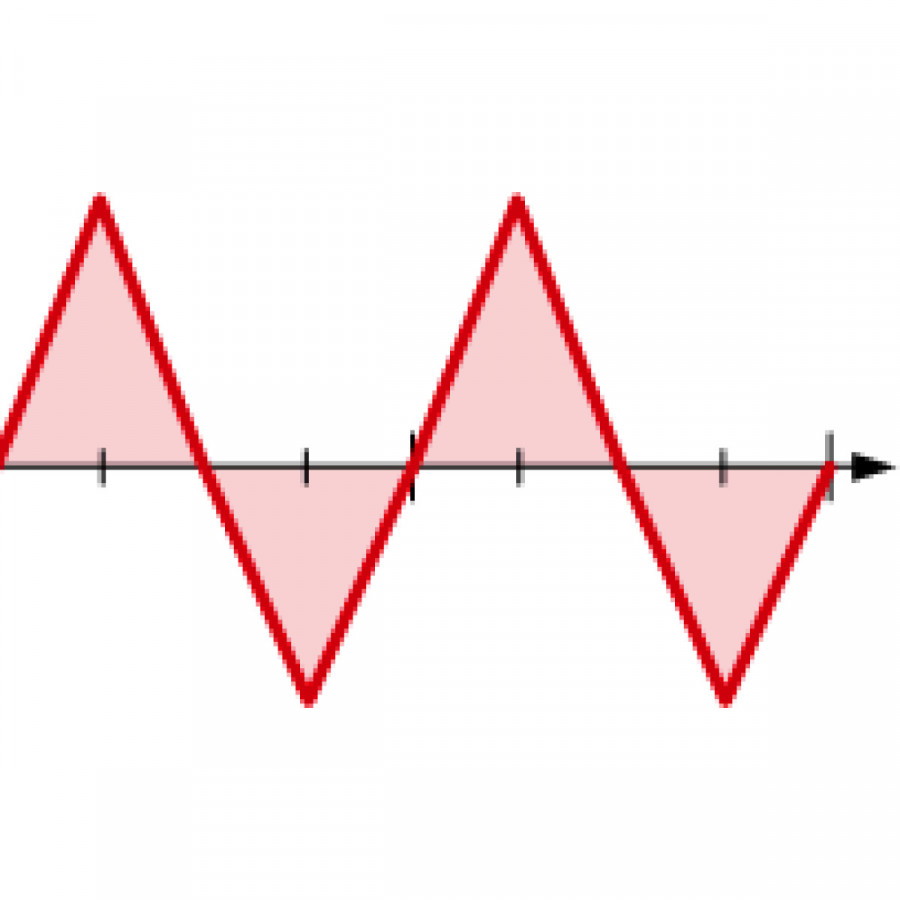

Adjustable waveforms, balance and frequency in AC mode.
Technical description:
Supply voltage - 1f-230V
Welding current - 10-200A;
Duty cycle (TIG) - 200A 60%;
Protection class - IP21S;
Dimensions: 545 x 190 x 360 mm.
Weight - only 15.4 kg;
The set includes:
4m earthing cable 16mm² 300A with clamp.
4m welding cable 16mm² 300A with clip.
TIG torch SR26 - 4m.
4m gas hose 12x6.
Pressure regulator.
All pictures and videos are illustrative.
