Teletruk TLT25D, JCB
Item code:TLT25&JCB
- 35.6 kW diesel or 43 kW LPG engine choice
- 2500 kg lift capacity and 4m lift height
- Easily-accessible components and service check areas
- Heavy Lift option for increased forward reach lift capacity
- 1400kg capacity at 2m forward reach
- Full free lift as standard, approximately 1450mm.
Request offer
_set-314532370.JPG)

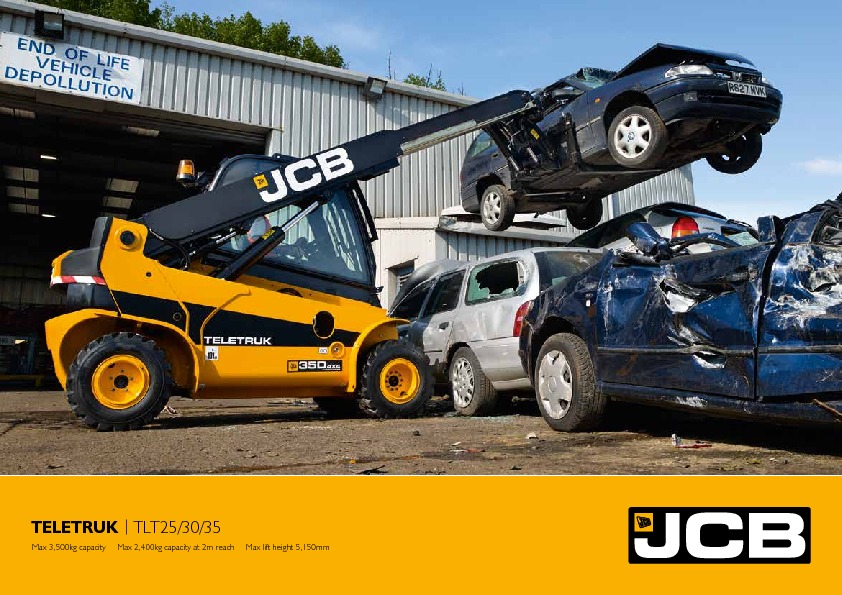

The most compact Teletruk in our range is the TLT25 which is a strong and an exceptionally versatile performer. The TLT25 offers a maximum lift capacity of 2500 kg, weighing up to 4400 kg. The 25D can lift 2500 kg at 4 m, and can lift 1400 kg at 2 m reach or the far side of a lorry. The compact design makes it ideal for working in between narrow isles widths. The JCB Teletruk is powered by either a Perkins 37 kW (50 hp) diesel engine or a GM 43 kW (57 hp) LPG engine. The forward reach is Abile to single side load, it reduces double-handling and keeps operators clear of hazardous environments. Our unique telescopic boom offers many benefits. With unrivalled visibility due to its none obstructive mast improving site safety. 111 degrees of carriage rotation makes handling of unpalletised goods much easier and safer. As a result, 50% less loading space is required which is welcome in congested yards. Models available: TLT 25D Heavy Lift, TLT 25D TCR, TLT 25G Heavy Lift, TLT 25G TCR.
Technical specificationsHONDA GX690, 24HP, 90cm x2
Rated power
37 kW
Machine weight
4220 kg
Travel speed
20 km/h
Lift height
4,0 m
Lift capacity
2500 kg
Every effort has been made to enhance the ergonomics of the Teletruk, ensuring superb operator comfort throughout the working day and enabling you to get the maximum productivity out of this uniquely versatile machine. The controls themselves are ergonomically designed with everything in easy reach and a display that is clearly viewed in any light. The JCB Teletruk also features a multifunctional control lever. The Teletruk offers several cab choices, from simple canopy to fully glazed and low cab option, providing the most comfortable working conditions whatever the climate or conditions.
