Technical specificationsCompactLine tedder for midrange and large farms
Theoretical capacity 6,4 ha/h
Connection to 3-p linkage CAT2
Stabilizer - Adjustable and standard on all Compact Line models
XXL rotor plate and strong box type frame
Gearbox not integrated in the main frame, maintenance friendly
C quality tines – strong solution to withstand heavy crop, coils diameter 68mm
Working width: 8,05m
Width, working position: 8,35m
Transport width: 2,90m
Transport length: 1,90m
Storage height: 3,15m
Weight: 920 kg
Hitch: CAT2
No of rotors: 8
No of tine arms per rotor: 5
Wheels (rotor): 16x6,50-8
Oscillation damper/integral lock: +
Adjustment of spreading angle: +
Border tedding via central adjustment
Oscillation dampers from ProLine machines
Positioned very close to the tractor
Anti wrapping cones standard
Driveline with finger clutch on the outer rotor - cost-effective solution for a possibility for a more compact folding
Very easy and fast adjustment from working to transport position (and other way opposite)
Min power requirement 60 hp
As optional equipment available (not included in price):
* Front wheel (16x6.50-8)
* Warning panels and lighting
* Tine safer clips
* Anti wrapping plates (7x) especially for long, sticky grass (trapeze shaped)
Warranty 2 years
Pictures are illustrative and for non-contractual use
Theoretical capacity 6,4 ha/h
Connection to 3-p linkage CAT2
Stabilizer - Adjustable and standard on all Compact Line models
XXL rotor plate and strong box type frame
Gearbox not integrated in the main frame, maintenance friendly
C quality tines – strong solution to withstand heavy crop, coils diameter 68mm
Working width: 8,05m
Width, working position: 8,35m
Transport width: 2,90m
Transport length: 1,90m
Storage height: 3,15m
Weight: 920 kg
Hitch: CAT2
No of rotors: 8
No of tine arms per rotor: 5
Wheels (rotor): 16x6,50-8
Oscillation damper/integral lock: +
Adjustment of spreading angle: +
Border tedding via central adjustment
Oscillation dampers from ProLine machines
Positioned very close to the tractor
Anti wrapping cones standard
Driveline with finger clutch on the outer rotor - cost-effective solution for a possibility for a more compact folding
Very easy and fast adjustment from working to transport position (and other way opposite)
Min power requirement 60 hp
As optional equipment available (not included in price):
* Front wheel (16x6.50-8)
* Warning panels and lighting
* Tine safer clips
* Anti wrapping plates (7x) especially for long, sticky grass (trapeze shaped)
Warranty 2 years
Pictures are illustrative and for non-contractual use

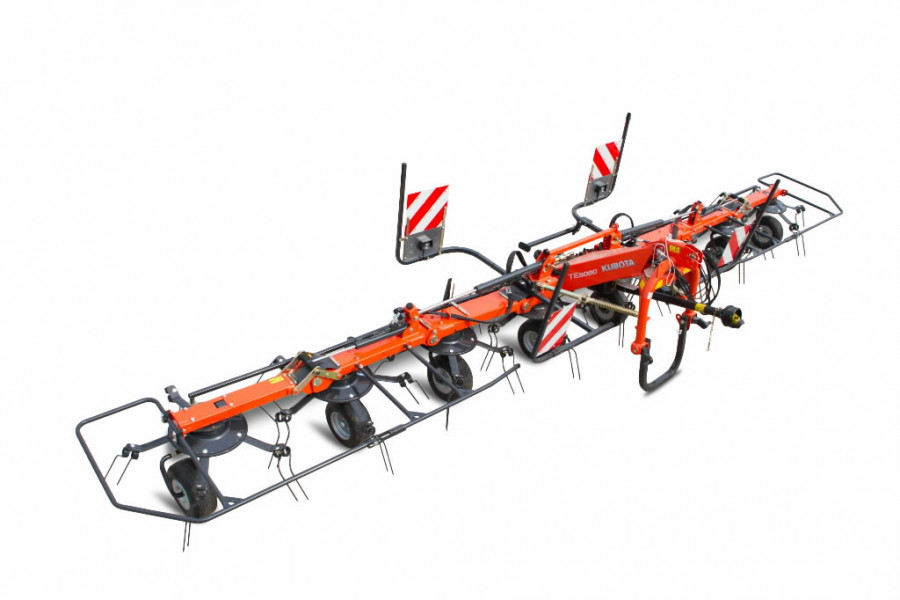

Tedder KUBOTA TE 8080, Kubota
Request offer
