Technical specificationsProfiLine tedder for large farms
Theoretical capacity 12,5 ha/h
Unique Kverneland patented TerraFlow ground coping system secures always the correct position of the machine when using with different tractors or different attachment height
Connection to drawbar: 40mm, 50mm or K80
Maintenance-free oil-immersed gearbox
Maintenance-free driveline and hinges
Carrier frame solution for use with lower power tractors. Wide track for smooth running characteristics
Optional central adjustment for border tedding – set hydraulically from the tractor
Optional hydraulic height adjustment

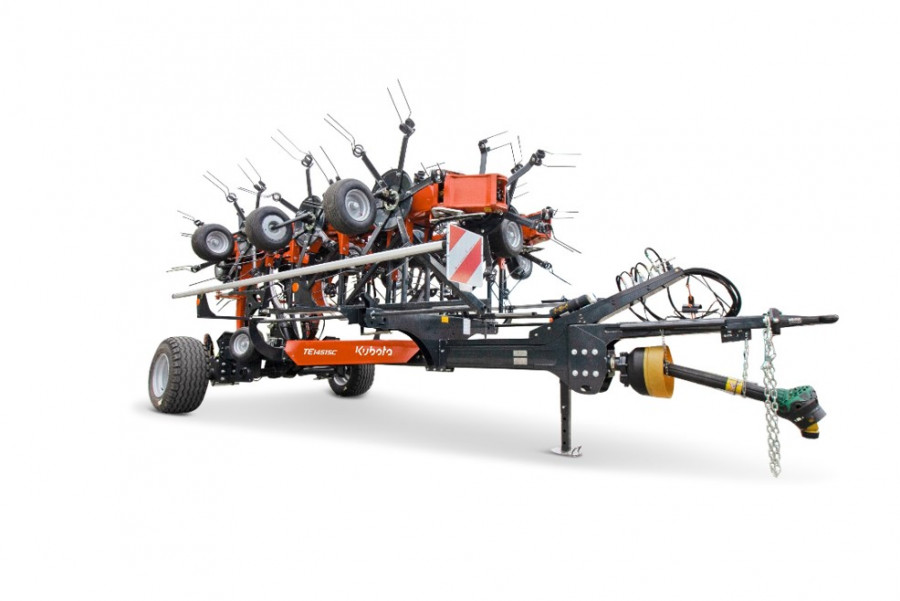

HexaLink provides the option fold arms into very compact transport and storage dimensions
U-joints provides extremely accurate and reliable power transmission where pressure is highest
Working width: 15,60m
Width, working position: 16,17m
Transport width: 2,99m
Transport length: 6,77m
Storage height: 2,89m
Capacity, theor.: 12,5 ha/h
Weight: 4150 kg
Hitch: drawbar 40mm, 50mm or K80
No of rotors: 14
No of tine arms per rotor: 6
Wheels (rotor): 16x6,50-8
Tyres on central unit: 16x6,5-8
Carrier frame wheels: 380/55-17, optional 500/50-17
Oscillation damper/integral lock: -
Adjustment of spreading angle: +
Warning panels with integrated lighting
Min power requirement 90 hp
As optional equipment included in price:
* Anti wrapping plates 10pcs
As optional equipment available (not included in price):
* Tine safer clips 90pcs
* Spare wheels 16"
* Reduction gearbox for night swaths
* Hydraulic swath board
* Hydraulic height adjustment
Warranty 2 years
Pictures are illustrative and for non-contractual use
Theoretical capacity 12,5 ha/h
Unique Kverneland patented TerraFlow ground coping system secures always the correct position of the machine when using with different tractors or different attachment height
Connection to drawbar: 40mm, 50mm or K80
Maintenance-free oil-immersed gearbox
Maintenance-free driveline and hinges
Carrier frame solution for use with lower power tractors. Wide track for smooth running characteristics
Optional central adjustment for border tedding – set hydraulically from the tractor
Optional hydraulic height adjustment
HexaLink provides the option fold arms into very compact transport and storage dimensions
U-joints provides extremely accurate and reliable power transmission where pressure is highest
Working width: 15,60m
Width, working position: 16,17m
Transport width: 2,99m
Transport length: 6,77m
Storage height: 2,89m
Capacity, theor.: 12,5 ha/h
Weight: 4150 kg
Hitch: drawbar 40mm, 50mm or K80
No of rotors: 14
No of tine arms per rotor: 6
Wheels (rotor): 16x6,50-8
Tyres on central unit: 16x6,5-8
Carrier frame wheels: 380/55-17, optional 500/50-17
Oscillation damper/integral lock: -
Adjustment of spreading angle: +
Warning panels with integrated lighting
Min power requirement 90 hp
As optional equipment included in price:
* Anti wrapping plates 10pcs
As optional equipment available (not included in price):
* Tine safer clips 90pcs
* Spare wheels 16"
* Reduction gearbox for night swaths
* Hydraulic swath board
* Hydraulic height adjustment
Warranty 2 years
Pictures are illustrative and for non-contractual use
