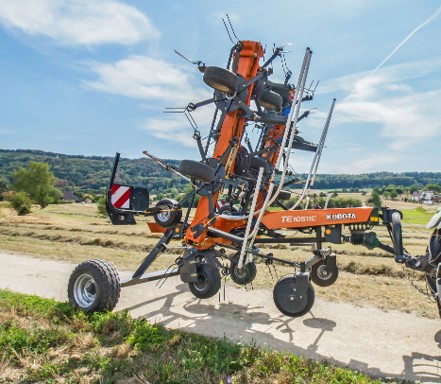

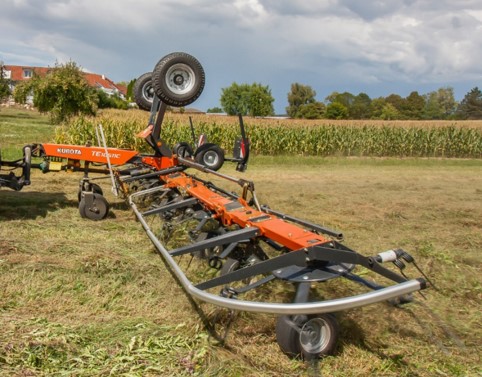

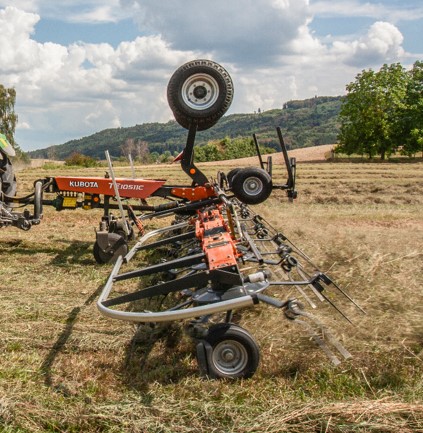

Tedder KUBOTA TE 10511C, Kubota

Item code:TE10511C&KUB
Arrow forward outline
Back
Request offer
Compare
Feature
Technical specifications
ProfiLine tedder for midrange and large farms
Theoretical capacity 9,0 ha/h

Connection to 2-p linkage arms CAT2

Maintenance-free oil-immersed gearbox
Maintenance-free driveline and hinges
Carrier frame solution for use with lower power tractors. Wide track for smooth running characteristics
Central adjustment for border tedding – set hydraulically from the tractor
Optional hydraulic headland kit available.

HexaLink provides the option fold arms into very compact transport and storage dimensions
U-joints provides extremely accurate and reliable power transmission where pressure is highest

Working width: 11,20m
Width, working position: 11,70m
Transport width: 2,96m
Transport length: 4,26m
Storage height: 3,94m
Capacity, theor.: 9,0 ha/h
Weight: 2225 kg
Hitch: CAT2, 2p linkage
No of rotors: 10
No of tine arms per rotor: 6
Wheels (rotor): 16x6,50-8
Tyres on central unit: 18,5x8,5-8
Carrier frame wheels: 10.0/75-15.3, 2,45m track
Oscillation damper/integral lock: +
Adjustment of spreading angle: +

Cab controlled border clear. system
Warning panels with integrated lighting
Min power requirement 70 hp

As optional equipment included in price:
* Tandem axle
* Anti wrapping plates 9pcs

As optional equipment available (not included in price):

* Tandem land wheel
* Tine safer clips 60pcs
* Spare wheels 16", 18,5"
* Reduction gearbox for night swaths
* Electric comfort control

Warranty 2 years

Pictures are illustrative and for non-contractual use
