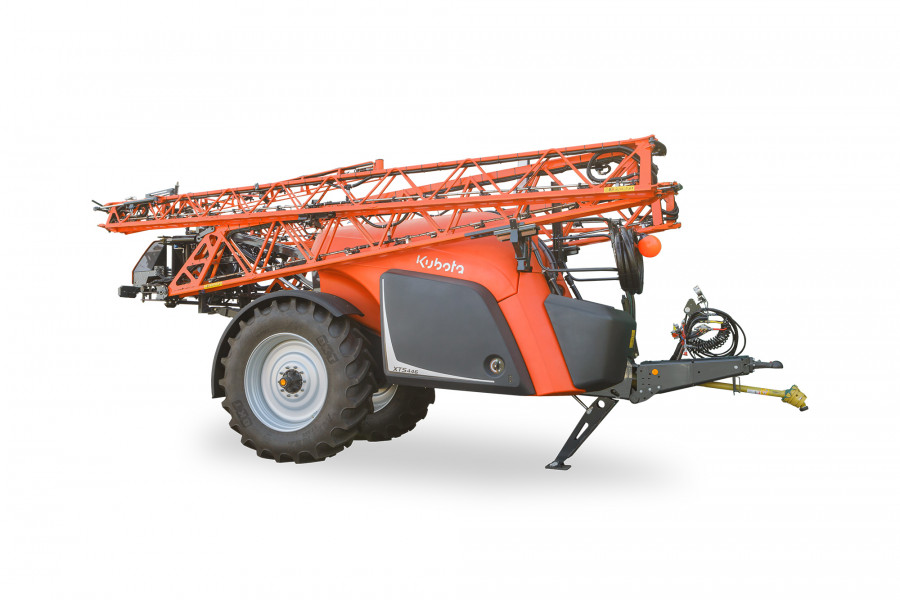

Sprayer XTS445 4500l 30m iXflow-E, Kubota
Item code:XTS445-30M-IXFLOW-E&KUBOTA
Request offer
Technical specificationsTrailed sprayer
Kubota XTS4 is a professional trailed sprayer range, passed a longterm R&D history and well accepted on the market, especially for precisssion farming requirements.
* Low gravity point and compact design secure a good stability and perfect maneuverability
* Universal drawbar
* New generation steering axle
ISOBUS compatible. Possible to use with Tellus PRO, Tellus GO or other ISOBUS compatible terminal.
HSS steel boom triangle design ensures perfect integration of galvanized steel spraying lines, nozzles and nozzle holders and direction of hoses through well protected sprayer parts.
Max transport width 2,55m and height less than 4m.
Filters are easily accessable. A valve at the bottom allows to empty the contents of the filter before removing the bowl to avoid contact with chemicals. The self-cleaning pressure filter is protected against clogging by continuous flow. Undissolved particles are returned to the tank until completely dissolved.
The width of the axle can be changed from 1.80 m to 2.25 m. This ensures maximum steering ability. The mudguards fully protect the nozzles even in curved lines. Small, narrow and tall tyres are perfect for working in crops, compacting the soil to a minimum.
Technical data:
* Nominal tank capacity 4500l
* Max tank capacity 4830l
* Clean water tank 500l
* Clean water tank extension 120l
* Hand wash tank 32l
* Chemical inductor 37l
* Min tyre size 270/95R54
* Empty weight depending on equipment 3800-4500kg (HSS 18-30m boom)
* Reversible drawbar in top linkage position 40mm fix eyelet or 80mm ball coupling
* Reversible drawbar in hitch linkage position 40mm fix eyelet, 50mm rotating eyelet or 80mm ball coupling
* Turning radius 5,25m (wheels 340/85R48 or narrower, track width2,25m)
* Suspension: drawbar and hydraulic wheel axle
* Wheel base 5,1m
* Total length 7,55 - 8,05m
* Width 2,55m (may vary depending on wheel sizes)
* Height 3,3m (may vary depending on wheel sizes)
Equipment:
Tank nominal capacity 4500l.
Boom width 30m, steel.
Hitch linkage.
Reversable drawbar allow also top linkage.
Pulling eye 50mm rotating.
PTO 6 splines.
Steering axle, adjustable, max load capacity 8 tons.
Load capacity on axle is 8 tons.
Track width can be changed from 1.50 – 2.25m in steps of 5cm.
Hydro pneumatic axle suspension.
Wheels 520/85R46 BKT 158A8
Track width adjusted at factory 1,8m.
Mudguards 550mm.
Hydraulic brakes.
Boom hydraulics Comfort 3 HSS 27-30m 3 parts foldable BG.
Automatic boom guidance by electronic sensor: BG Pro HSS 27-30m.
Balancing hilly conditions: for boom suspension in hilly conditions. Pendulum locked with pin on front part. The boom follows the machine on slopes. Slope correction: boom is hydraulically adjusted to the ground, but is still suspended. Vertical suspension via accumulator on lift cylinder.
Nozzle holders Pentajet-Electric 60pcs: nozzle holder with possibility for five nozzle holders include antidrip valve.
Recirculation system iXflow-E.
Number of boom sections: individually adjusted nozzles.
HSS boom 30m 3pf XTS
ErgoDrive headland management: Activated by switching ON or OFF. ErgoDrive controls all the necessary actions, while the operator can focus on driving safely during turning on the headland.
Load sensing hydraulics.
Sensing skids for boom. To assemble on the last boom part before the tip end of the boom to avoid that the spray boom touching the ground.
Boom lights 4x LED.
Chemical inductor: Protected by a cover. No dirt can come in during transport. Even big cans can easily be cleaned with the cleaning nozzle. Cleaning gun is included. Located next to the valve panel for easy access. Equipped with a circular rinsing system and waterproof cover, it can be rinsed safely with closed cover. Big quantities of powder and difficult tank mixtures are injected
without any problems within seconds. Possible to use the lid as a table.
Pump 2x260l/min, double piston pump. Continous pressure 15 bar, max 20 bar.
Flowmeter max 495l/min (32mm).
iXclean Comfort T cleaning system: display tank level on terminal in cab and on Focus 3 side console., automatic filling stop, boom priming and cleaning from cab, dilution of maintank from cab.. After finishing or interruption, crop protection agents are automatically flushed out of the spray lines with a minimum of clean water consumption.
Outside cleaner T/SP: cleaning in the field with water from the clean water tank, 15m of hose, spray gun that can be connected to the control panel for different purposes.
Electric level indicator T+SP: Provides the actual tank volume to the spraying computer in the cab as well as via the Focus 3 display on the control panel. Electronic level indicator is calibrated with the sprayer flowmeter.
Suction hose 8m pump 3" INOX.
Float.
Bracket to store the suction hose.
Nozzles Teejet TT 110 5 different sets (5x60pcs)
Transport wheels to reduce the transport costs from factory.
Joystick Kit IM Grip Kubota: in total 44 function assignments can be mapped to the IsoMatch Grip’s buttons. Supports up to four work modes, each identified by a colored LED.
Road lights.
Tip end protection.
KIT IM Tellus PRO IM Power Kubota 12" terminal
KIT IM Global 3 DGPS Kvg antenna
Sprayer Control license.
IsoMatch Geocontrol license.
Manufactured in Holland Kverneland Nieuw-Vennep factory
Warranty 2 years
Pictures are illustrative and for non-contractual use
