- Front and rear rotors can be lift separately (always right and left together)
- Rear rotors have a higher turning speed to form a nice and even swath
- Hydraulic adjustment of working and swath width on front and rear rotors
- Maintenance friendly oil-immersed gearbox
- Very simple electronic control unit for all functions

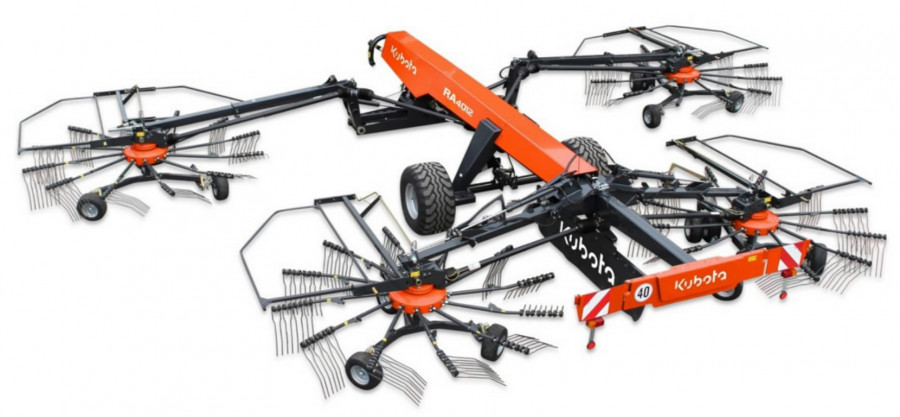

CompactLine four rotor rake
Center delivery
Theoretical capacity 15 ha/h
Center delivery
Theoretical capacity 15 ha/h
Working width
10,00 -12,50 m, hydraulically adjustable
Transport width
2,99 m
Transport length
8,75 m
Transport height
3,45/3,99 m
Theoretical capacity
15 ha/h
Weight
4300 kg
Approximate swath width
1,20-1,90 m
Rotor diameter
3,05/3,35 m (rear/front)
No of rotors
4
No of arms per rotor
4x12
No of double tines per arm
4
Tine diameter
9 mm
Height adjustment
mechanical
Tyres (rotor)
16 x 6,5 - 6
Tandem axle type
pivoting, optional
Carrying frame tyres
500/50 R17
Detachable tine arms
+
Center delivery
Theoretical capacity 14 ha/h
Front and rear rotors can be lift separately (always right and left together)
Rear rotors have a higher turning speed to form a nice and even swath
Hydraulic adjustment of working and swath width on front and rear rotors
Maintenance friendly oil-immersed gearbox
Very simple electronic control unit for all functions
Fast adapting to the conditions without leaving the cab
Changing of working width without folding and unfolding the machine completely
In combination with BX mower possibility to collect 18m into one swath
Working width: 10,00 -12,50 m, hydraulically adjustable
Transport width: 2,99 m
Transport length: 8,75 m
Transport height: 3,45/3,99 m
Theoretical capacity: 14 ha/h
Weight: 4300 kg
Approximate swath width: 1,20-1,90 m
Rotor diameter: 3,05/3,35 m (rear/front)
No of rotors: 4
No of arms per rotor: 4x12
No of double tines per arm: 4
Tine diameter: 9 mm
Height adjustment: mechanical
Tyres (rotor): 16 x 6,5 - 6
Tandem axle type: pivoting, optional
Carrying frame tyres: 500/50 R17
Detachable tine arms: +
Power requirement: min 80 hp
Hydraulic requirements: 1DA+1SA
Free float valve needed!
Optional equipment (included in offer price):
* Tandem axles (2x rotor)
Available as optional equipment (not included in price):
* Tine safer kits set (200pcs)
* Spare wheel 16" including fixation
* Single side lift front rotors
Produced in Denmark, Kverneland Kerteminde
Warranty 2 years
Pictures are illustrative and for non-contractual use
