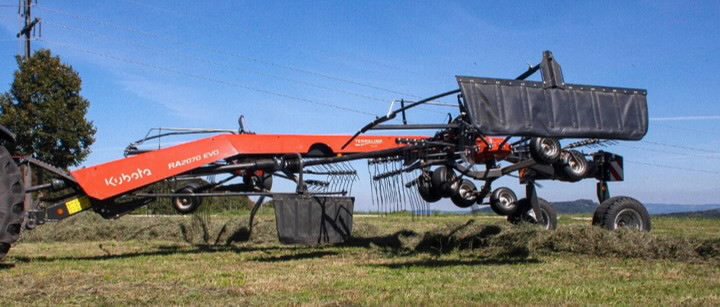

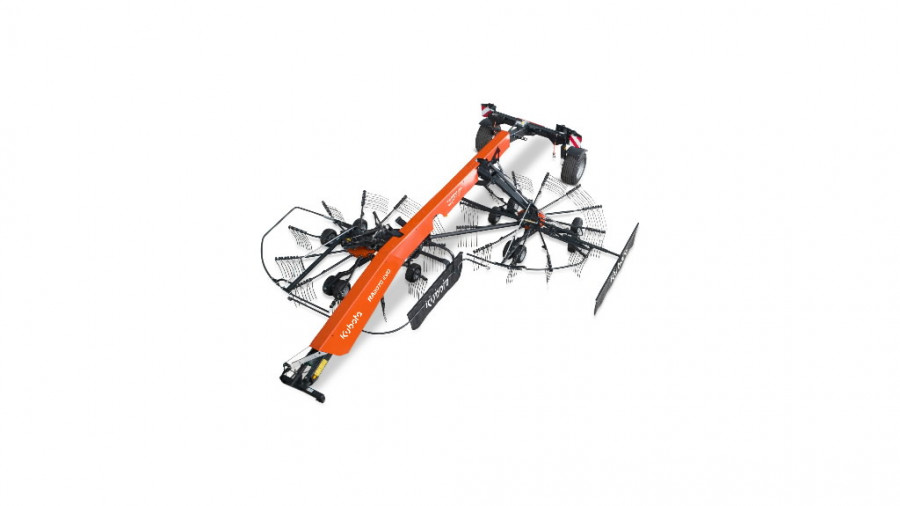

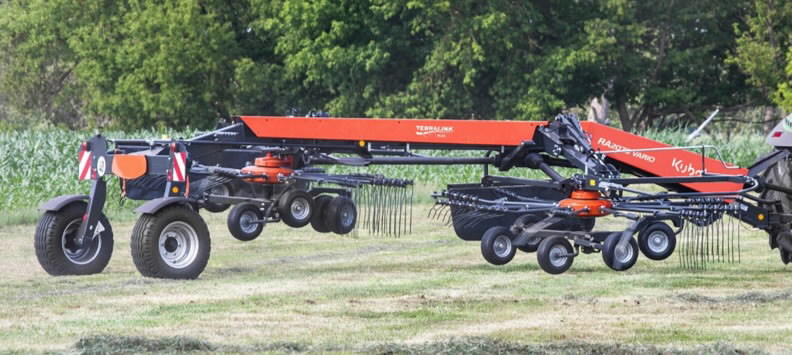

Technical specificationsCompactLine dual rotor rake
Side delivery rake
Swath delivery left
Theoretical capacity 7,6 ha/h
Attachment to 2-pt lower links
TerraLink Plus provides perfect ground contour followings
Optional Tandem axle as well for rear and front rotor
Maintenance-friendly CompactLine gear box with fully enclosed oil bath design
Automatic folding of swath board (gravity folding)
Working width: 6,65 m
Transport width: 2,80 m
Transport length: 8,65 m
Parking height: 3,50/3,99 m
Theoretical capacity: 7,6 ha/h
Weight: 2300 kg
Rotor diameter: 3,35/3,23 m
No of rotors: 2
No of arms per rotor:11/12
No of double tines per arm: 4
Tine diameter: 9 mm
Height adjustment: mechanical
Tyres (rotor):16x6,50-6
Tandem axle type: can be mounted on rear and front rotor (for front optional, not included in price)
Carrying frame tyres: 380/55 R17
New A Frame allows higher lifting on headland with up to 500 mm
Parking stand secures that the rotor keeps the parallel touch down (biggest problem on all competitive machines)
Excellent maneuverability due to 80° turning angle on the headstock
Automatic locking
Available as optional equipment (not included in price):
* Tandem axle front (steered)
* Prototype Mud guards for transport wheels
* Tine safer clips set 100pcs
Free float valve needed
Min power requirement 60 hp
Manufactured in Czech
Warranty 2 years
Pictures are illustrative and for non-contractual use
