Technical specificationsCompactLine single rotor rake
Theoretical capacity 3,9 ha/h
Swath delivery left
Light construction to work with smallest tractors and to protect the turf
Maintenance friendly oil-immersed gearbox
Compact design with low horse power requirement
Curved tine arm design for cleaner raking performance
High number of optional equipment available
Working width: 3,5 m
Transport width: 1,75 m
Transport length: 3,35 m
Parking height: 1,70 m
Theoretical capacity: 3,9 ha/h
Weight: 420 kg
Rotor diameter: 2,80 m
No of rotors: 1
No of arms per rotor: 10
No of double tines per arm: 4
Tine diameter: 9 mm
Height adjustment: mechanical
Tyres (rotor): 16x6,50-6
Tandem axle type: fixed, optional equipment
Detachable tine arms: +
Power requirement min 30 hp
Optional equipment (included in price):

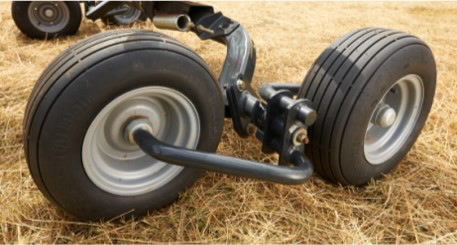

* Tandem axle
Available as optional equipment (not included in price):
* Supplementary support wheel 16" attached to 3-pt headstock
* Road lights and warning panels
* Tine safer clips
* Crank extension for height adjustment
* Twin stabilizers (needed esp. in combination with support wheel for headstock)
Manufactured in Czech
Warranty 2 years
Pictures are illustrative and for non-contractual use
