Check out the range

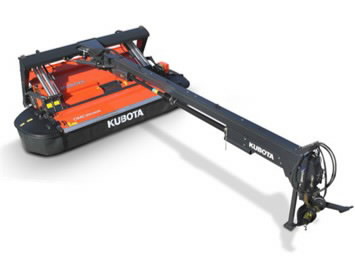

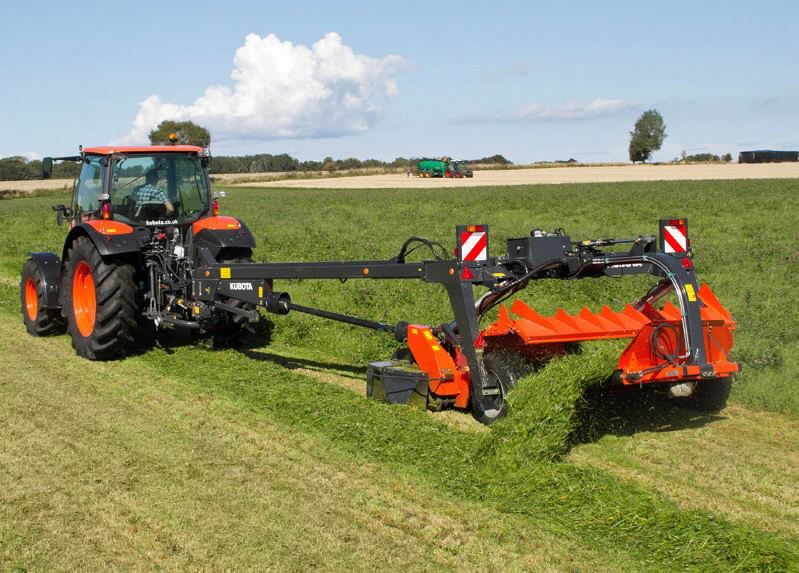

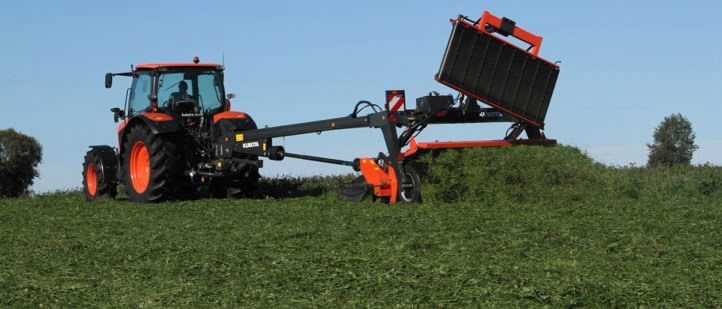

Mower KUBOTA DMC 8536T Express, Kubota
Item code:DMC8536TEXPRESS&KUB
- All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting
- NonStop BreakAway
Request offer
Fully welded cutterbar design
Trailed mower with a spring suspension system
Excellent Ground Following System
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Technical specificationsAll Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting
Fully welded cutterbar design, no bolt connections

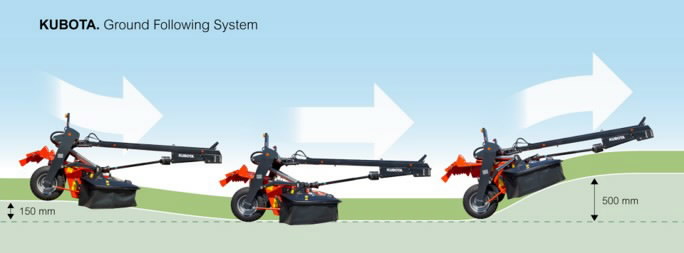

Excellent Ground Following System +500mm/-150mm
NonStop BreakAway
Very low power consumption - thanks to specially designed cutterbar bearings
Fixed main frame and reduced number of moving parts – less maintenance and wear
Mower Conditioner
Express changing blades
Trailed mower with a spring suspension system
Centre drawbar
Hitch CAT 2
Working width 3,5 m
Transport width 3,4 m
PTO 1000/540 rpm, freewheel protection
Conditioner type: SemiSwing metal tines
Conditioner rotor speed 600/900 rpm
10 triangle discs each with 3 blades
Cutting height (standard) 30-60 mm
Tyres 380/55-17
Swath width 1,9-2,6m
Lighting kit for roads
Hydraulically to transport and work position
Weight 2450 kg
Power requirement min 90 hp
No of hydraulic outlets: 1S, 1D
There is inqluded in price the following optional equipment:
* high cut skids 40 mm 2 pcs (cutting height 45-90 mm)
* protection cutterbar-end
* FlipOver widespreading 3,5 m CT trailed Mo Co
Manufactured in Denmark
Warranty 2 years
Pictures are illustrative and for non-contractual use
Cutting width
3,5 m
Transport width
3,4 m
PTO
540/1000 rpm
Hitch
CAT2
Power requirement min 90 hp
Number of discs
10
Number of knives
30
Conditioner type
SemiSwing metal tines
Conditioner speed
900/600 rpm
Tyres
380/55-17
Fully welded cutterbar design, no bolt connections
Excellent Ground Following System +500mm/-150mm
NonStop BreakAway
Very low power consumption - thanks to specially designed cutterbar bearings
Fixed main frame and reduced number of moving parts – less maintenance and wear
Mower Conditioner
Express changing blades
Trailed mower with a spring suspension system
Centre drawbar
Hitch CAT 2
Working width 3,5 m
Transport width 3,4 m
PTO 1000/540 rpm, freewheel protection
Conditioner type: SemiSwing metal tines
Conditioner rotor speed 600/900 rpm
10 triangle discs each with 3 blades
Cutting height (standard) 30-60 mm
Tyres 380/55-17
Swath width 1,9-2,6m
Lighting kit for roads
Hydraulically to transport and work position
Weight 2450 kg
Power requirement min 90 hp
No of hydraulic outlets: 1S, 1D
There is inqluded in price the following optional equipment:
* high cut skids 40 mm 2 pcs (cutting height 45-90 mm)
* protection cutterbar-end
* FlipOver widespreading 3,5 m CT trailed Mo Co
Manufactured in Denmark
Warranty 2 years
Pictures are illustrative and for non-contractual use
