Mower KUBOTA DMC 7036T, Kubota
Item code:DMC7036T&KUB
- All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting
- NonStop BreakAway
- 3-dimensional suspension and excellent ground adaptation thanks to responsive kinematics 450 mm upwards, 250 mm downwards

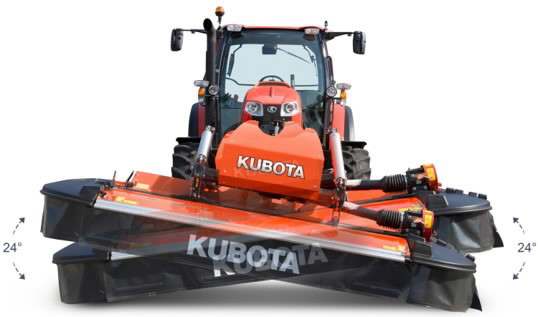

- Sideward adaptation in total 24 degrees
Request offer
Front mower conditioner
Fully welded cutterbar design
For tractors from 90hp and upwards
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Technical specificationsFront mower conditioner
Front hitch CAT 2
All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting - clean cut, less wear for blades
Fully welded cutterbar design, no bolt connections
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Excellent ground adaptation thanks to responsive kinematics: 450 mm upwards, 250 mm downwards
Sideward adaptation in total 24 degrees
Cutting width 3,5 m
Transport width 3,35 m
PTO 1000 rpm
Conditioner type: SemiSwing metal tines
Conditioner rotor speed 600/900 rpm
10 discs each with 3 blades
Cutting height 30-60 mm
Mowing angle: -24/+24
BreakAway, NonStop, spring loaded auto reset
Headland clearance of 350 mm on headland turns and transport
Weight 1465 kg
Power requirement min 90 hp
No of hydraulic outlets: 1S
From optional equipment are included in price:
* high cut skids 40mm
* protection cutterbar-end
* A-frame
Manufactured in Denmark
Warranty 2 years
Pictures are illustrative and for non-contractual use
Cutting width
3,5 m
Transport width
3,35 m
PTO
1000 rpm
Hitch
CAT2
Power requirement min.
90 hp
No of discs
10
No of knives
30
Mowing angle
-24/+24
Breakaway
NonStop
Conditioner type
SemiSwing metal tines
Conditioner speed
900/600 rpm
Front hitch CAT 2
All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting - clean cut, less wear for blades
Fully welded cutterbar design, no bolt connections
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Excellent ground adaptation thanks to responsive kinematics: 450 mm upwards, 250 mm downwards
Sideward adaptation in total 24 degrees
Cutting width 3,5 m
Transport width 3,35 m
PTO 1000 rpm
Conditioner type: SemiSwing metal tines
Conditioner rotor speed 600/900 rpm
10 discs each with 3 blades
Cutting height 30-60 mm
Mowing angle: -24/+24
BreakAway, NonStop, spring loaded auto reset
Headland clearance of 350 mm on headland turns and transport
Weight 1465 kg
Power requirement min 90 hp
No of hydraulic outlets: 1S
From optional equipment are included in price:
* high cut skids 40mm
* protection cutterbar-end
* A-frame
Manufactured in Denmark
Warranty 2 years
Pictures are illustrative and for non-contractual use
