Technical specificationsRear mower conditioner
Fast changeable knives
Hitch CAT 2
All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting - clean cut, less wear for blades
Fully welded cutterbar design, no bolt connections
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Perfect ground following ability - 400 mm up and 300 mm downwards
Sideward adaptation 30 degrees

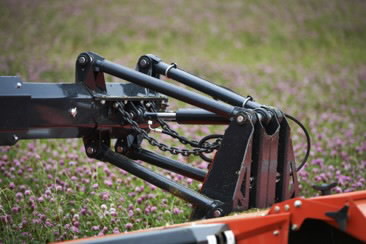

QuattroLink suspension, inspired from racecars - better tracking, faster speed and instant ground adapation
Sideshift up to 400 mm (Vario arm) - adjustment of overlap on the go
Constant ground pressure
Excellent weight distribution during transport
Integrated vertical parking device
Dual adjustment of conditioner hood – adjust at front and rear end of conditioner
Cutting width 3,18 m
Transport width 3,0 m
Transport height 3,7 m
PTO 1000 rpm
Conditioner type: SemiSwing metal tines
Conditioner rotor speed 700/1000 rpm
8 discs each with 3 blades
Cutting height 30-60 mm
Mowing angle: -30/+30
BreakAway, NonStop, spring loaded auto reset
Clearance min 500 mm
Vertical transport of up to 120°
Weight 1400 kg
Power requirement min 90 hp
No of hydraulic outlets: 2D
From optional equipment are included in price:
* high cut skids 40mm
* protection cutterbar-end
Available as optional equipment (not included in price):
* Wide spreading kit
* Hydraulic foldable side guards
Manufactured in Denmark
Warranty 2 years
Pictures are illustrative and for non-contractual use
