- All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting
- NonStop BreakAway
- Excellent ground adaptation thanks to responsive kinematics 430 mm upwards, 210 mm downwards
- Sideward adaptation in total 17 degrees
- Two speed gear box – the rotor speed can easily be changed by simply switching pulleys, to adapt to different conditioning requirements

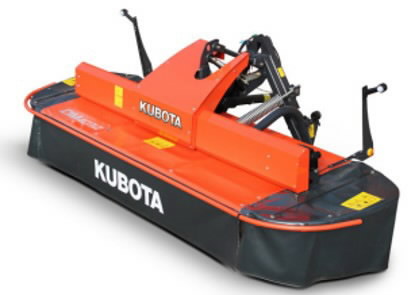

Front plain mower
FlexiSwath technology
Fully welded cutterbar design
For tractors from 60hp and upwards
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
FlexiSwath technology
Fully welded cutterbar design
For tractors from 60hp and upwards
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Cutting width
3,2 m
Transport width
3,0 m
PTO
750/1000 rpm
Hitch
CAT2
Power requirement min.
60 hp
No of discs
8
No of knives
24
Mowing angle
-17/+17
Breakaway
NonStop
Overrun clutch
+
Friction clutch
-
New FlexiSwath technology
Front hitch CAT 2
FlexiSwath - New solution for swath collection with a front mounted disc mower

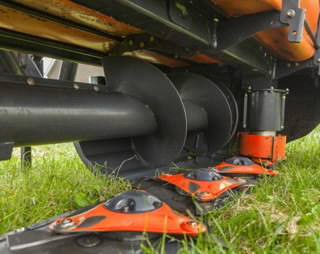

Crop is collected by means of the auger and guide plates

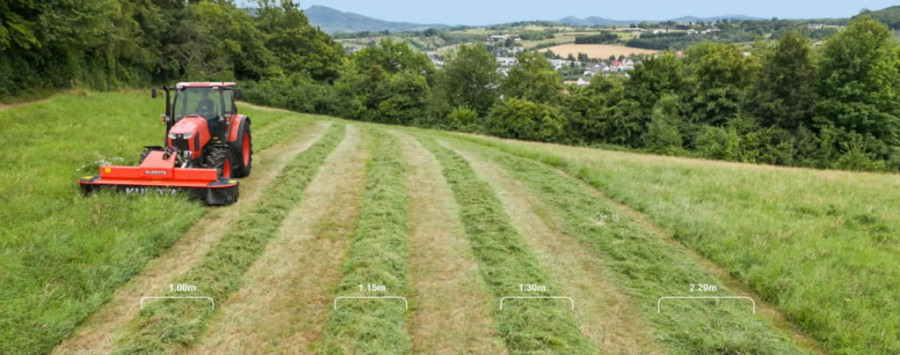

Possible to prepare a swath of 1.0, 1.15 or 1.3m or wide spreading of 2.2m
Change over is done in a minutes – move the swath plates to set the swath width
Clean cutting performance, the crop is immediately transported away from the discs by the auger
The crop is moved into an airy box-shaped swath, speeding up the drying process and making it easier to pick it up or turn it with the rotary tedder
The crop is NOT touching the ground before being transported into the swath, meaning less pollution and dirt in the swath
All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting - clean cut, less wear for blades
Fully welded cutterbar design, no bolt connections
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Excellent ground adaptation thanks to responsive kinematics: 430 mm upwards, 210 mm downwards
Sideward adaptation in total 17 degrees
Two speed gear box – the rotor speed can easily be changed by simply switching pulleys, to adapt to different conditioning requirements
Cutting width 3,2 m
Transport width 3,0 m
PTO 750/1000 rpm, overrun clutch
8 discs each with 3 blades
Cutting height 30-60 mm
Mowing angle: -17/+17
BreakAway, NonStop, spring loaded auto reset
Weight 875 kg
Power requirement min 60 hp
No of hydraulic outlets: 1S
From optional equipment are included in price:
* high cut skids 40mm
* protection cutterbar-end
* A-frame
Manufactured in Denmark
Warranty 2 years
