- All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting
- NonStop BreakAway
- The centre suspension provides an even weight distribution across the entire mowing width, and a constant, faster and more precise adaptation to ground contours
Fully welded cutterbar design

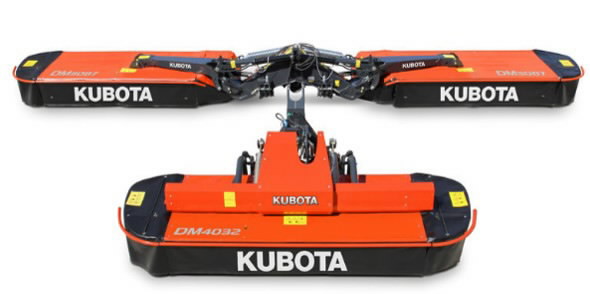

Butterfly mower
Fast changeable knives
For tractors from 150hp and upwards
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Hydraulic lift
Butterfly mower
Fast changeable knives
For tractors from 150hp and upwards
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Hydraulic lift
Cutting width
9,5 m
Transport width
less than 3 m
Transport height
less than 4 m
PTO
1000 rpm
Hitch
CAT2/3
Power requirement min.
150 hp
No of discs
20
No of knives
60
Mowing angle
-15/+15
Breakaway
NonStop
Overrun clutch
+
Friction clutch
+
Hitch CAT 2/3
All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting - clean cut, less wear for blades
Fully welded cutterbar design, no bolt connections
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Mowing units positioned very close to the tractor ensure gravity point close to the tractor
Cutting width 9,5 m
Transport width <3 m
Transport height <4 m
PTO 1000 rpm, overrun clutch + friction clutch
20 discs each with 3 blades
Cutting height 30-60 mm
Mowing angle: -15/+15
BreakAway, NonStop, spring loaded auto reset
Hydraulic lift on headlands up to 400 mm
Supplied with two mounting options of the mowing section, what ensures optimal overlap between a front and rear mounted unit
Vertical Parking Stand
Swath discs (RH)
Hydraulic lift

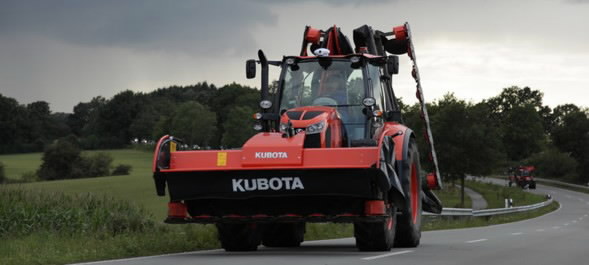

100° Vertical Transport Position
Weight 1500 kg
Power requirement min 150 hp
No of hydraulic outlets: 2D
From optional equipment are included in price:
* high cut skids 40mm
* protection cutterbar-end 2 pcs
As optional electric lift control joystick available
Optional hydraulic ground pressure adjustment
Manufactured in Denmark
Warranty 2 years
Pictures are illustrative and for non-contractual use
