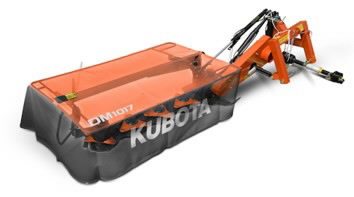

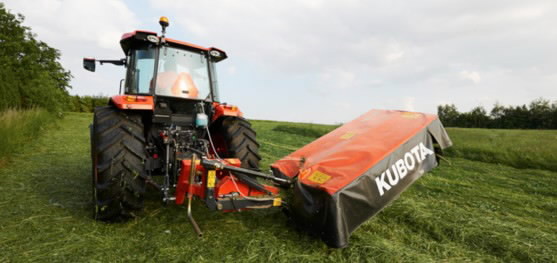

Mower KUBOTA DM 1017, Kubota
Item code:DM1017&KUB
- All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting
- BreakAway
Request offer
Fully welded cutterbar design
Rear mower
For tractors from 36hp and upwards
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Hydraulic lift
Technical specificationsRear mower
Hitch CAT 2
All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting - clean cut, less wear for blades
Fully welded cutterbar design, no bolt connections
Very low power consumption - thanks to specially designed cutterbar bearings
Cutting width 1,7 m
Transport width 1,2 m
PTO 540 rpm, overrun clutch
4 discs each with 3 blades
Cutting height 30-60 mm
Mowing angle: -45/+15
BreakAway, spring loaded
Swath board (RH)
Hydraulic lift
Weight 395 kg
Power requirement min 36 hp
No of hydraulic outlets: 1S
Manufactured in Denmark
Warranty 2 years
Pictures are illustrative and for non-contractual use
Cutting width
1,7 m
Transport width
1,2 m
PTO
540 rpm
Hitch
CAT2
Power requirement min.
36 hp
No of discs
4
No of knives
12
Mowing angle
-45/+15
Breakaway
+
Overrun clutch
+
Hitch CAT 2
All Kubota mowers are equipped with Triangular Counter-Rotating Discs, 3 blades per disc for constant cutting - clean cut, less wear for blades
Fully welded cutterbar design, no bolt connections
Very low power consumption - thanks to specially designed cutterbar bearings
Cutting width 1,7 m
Transport width 1,2 m
PTO 540 rpm, overrun clutch
4 discs each with 3 blades
Cutting height 30-60 mm
Mowing angle: -45/+15
BreakAway, spring loaded
Swath board (RH)
Hydraulic lift
Weight 395 kg
Power requirement min 36 hp
No of hydraulic outlets: 1S
Manufactured in Denmark
Warranty 2 years
Pictures are illustrative and for non-contractual use
