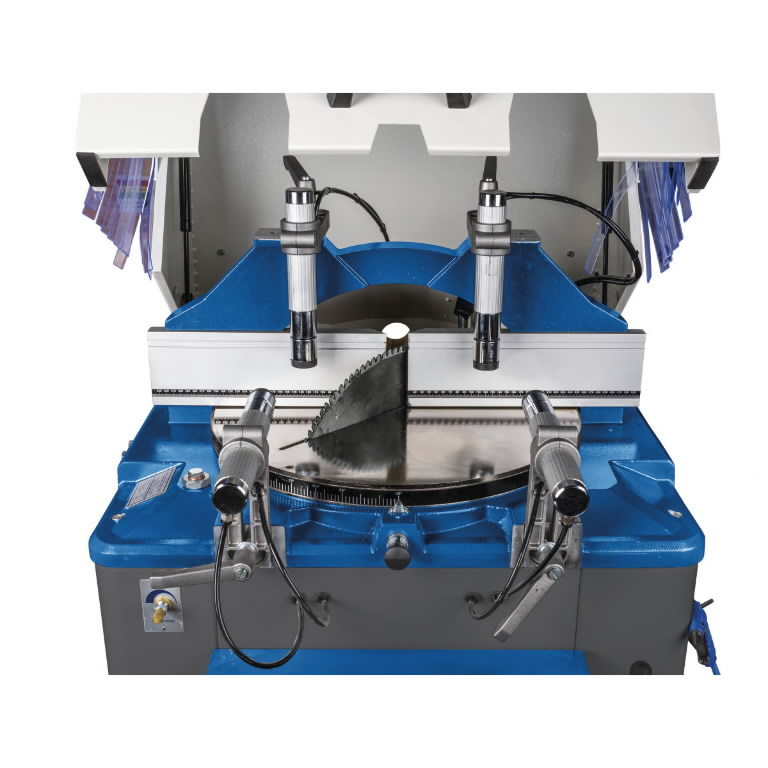

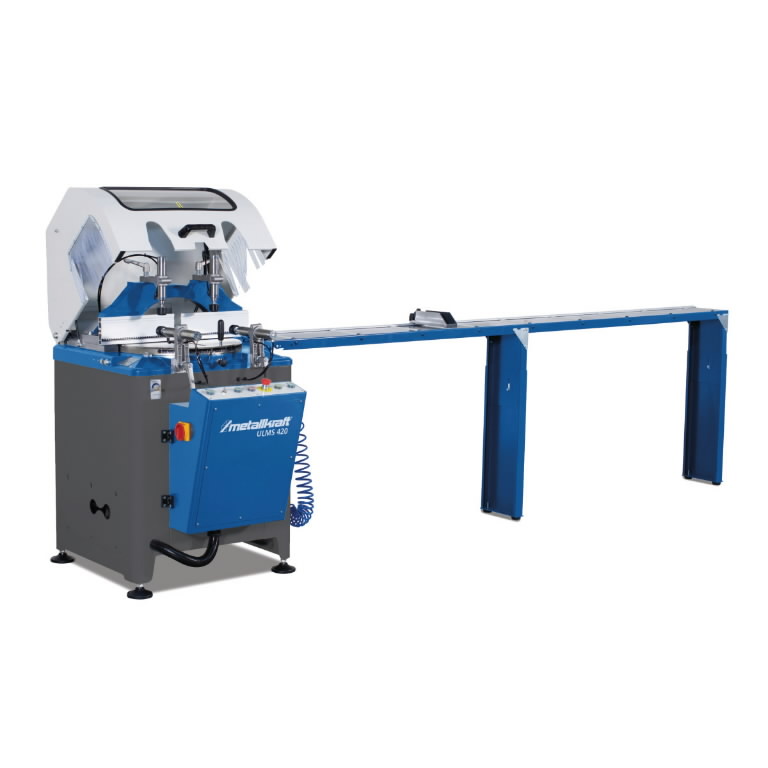

Light alloy crosscutting saw with rising blade ULMS 500, METALLK
Item code:3627500&METALLK
Request offer
Technical specificationsDrive motor output 3.0kW/400V
Cutting capacity 0° (square) solid material 155 x 155mm
Cutting capacity -45° (square) solid material 130 x 130mm
Cutting capacity +45° (square) solid material 130 x 130mm
Saw blade speed 2347min¯¹
Saw blade diameter 500mm
Saw blade bore from to 30 – 32mm
Saw blade thickness 4.0mm
Miter angle -67.5 / -45 / -30 / -22.5 / -15 / 0 / 15 / 22.5 / 30 / 45 / 67.5°
Exhaust connector diameter 2 x 100mm
Air consumption approx. 38l/min
Pneumatic operating pressure 6 – 8bar
Length (product) approx. 855mm
Width/depth (product) approx. 1135mm
Height (product) approx. 1360mm
Net weight approx. 216kg
Delivery Contents
2 x saw blade 500x30x4.0 mm 120 TFZ N HW
Operating tool
Coolant tank
Pneumatic gun and spiral hose
Cutting capacity 0° (square) solid material 155 x 155mm
Cutting capacity -45° (square) solid material 130 x 130mm
Cutting capacity +45° (square) solid material 130 x 130mm
Saw blade speed 2347min¯¹
Saw blade diameter 500mm
Saw blade bore from to 30 – 32mm
Saw blade thickness 4.0mm
Miter angle -67.5 / -45 / -30 / -22.5 / -15 / 0 / 15 / 22.5 / 30 / 45 / 67.5°
Exhaust connector diameter 2 x 100mm
Air consumption approx. 38l/min
Pneumatic operating pressure 6 – 8bar
Length (product) approx. 855mm
Width/depth (product) approx. 1135mm
Height (product) approx. 1360mm
Net weight approx. 216kg
Delivery Contents
2 x saw blade 500x30x4.0 mm 120 TFZ N HW
Operating tool
Coolant tank
Pneumatic gun and spiral hose
