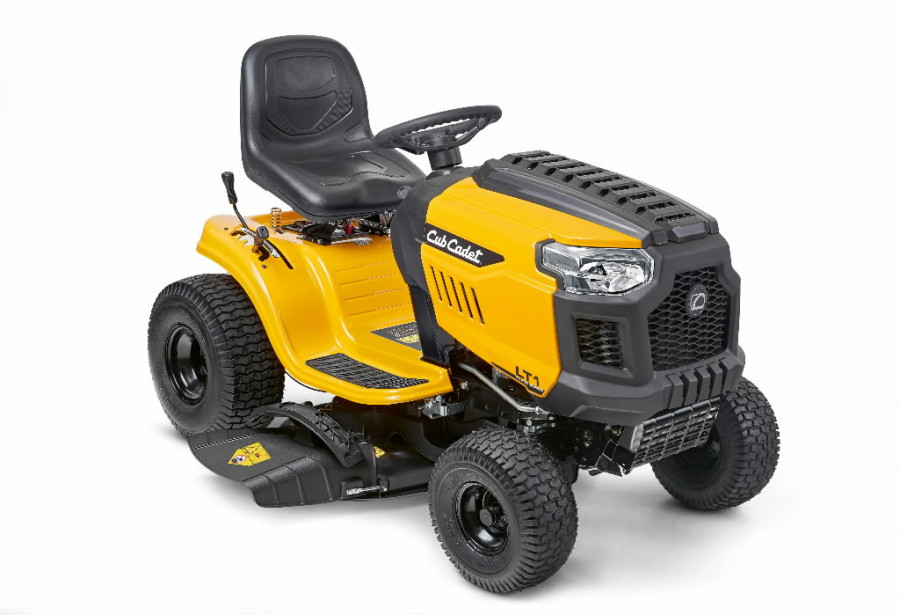

Lawn Tractor LT1 NS92, Cub Cadet

ENGINE
Engine typeCub Cadet OHV
Engine displacement439 cm³
Rated power7,5 kW / 2.450 min-1
CylindersSingle
Tank volume (capacity)3,8 l
DRIVE SYSTEM
TransmissionTransmatic
Speeds7 (f/r), shift-on-the-go
ControlFoot pedal control with lever
Cruise control–
CUTTING SYSTEM
Lawn area (rec./up to)4.000 m²/h
Cutting width92 cm
Cutting height (min-max)30–95 mm
Number of blades2
Deck engagementManual lever control
Deck height positions5 positions
Deck wheels–
Wash nozzle/Mulch Kit–/spring-loaded
DISCHARGE SYSTEM
TypeSide Discharge
Bag (capacity)/accessory no.Optional 200 l/(OEM-190-180A)
Bag lever/hardtop–/–
Bag fill indicator/grass deflector–/Standard
FRAME
Front axleSteel
Front bumperoptional (OEM-190-679)
Turning radius46 cm
Wheel size (f/r in inch)15 x 6 / 20 x 8
Wheel bearingsSleeve bearings
FrameEasy entry frame
HeadlightsStandard
COMFORT
Seat typeHigh Back Comfort Seat
Seat adjustmentTool-less
Steering wheelStandard
Toolbox/Cupholder–/–
Mow-in-reverse–
Battery chargeroptional (196-967-678)
DIMENSIONS
Noise level LpA/LwA/LwAg88/98/100 dB (A)
Vibration value body/K-factor1,0 / 0,5 m/s2
Vibration value hand/arm / K-factor5,0 / 1,5 m/s2
Dimensions (L/W/H)170 / 107 / 100 cm
Net weight150 kg
