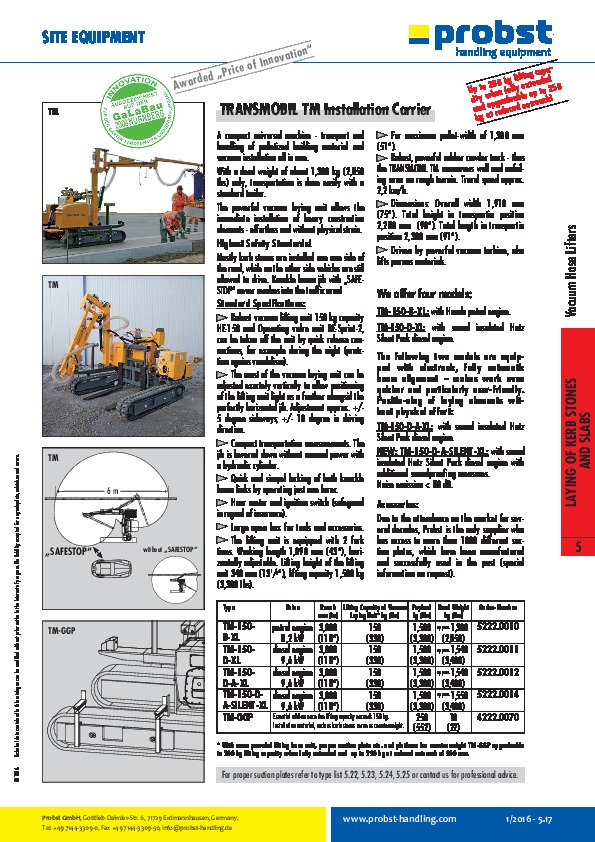

Installation Carrier- TRANSMOBIL TM-150-D-A-XL, Probst
Item code:5222.0012&PROBST
Request offer

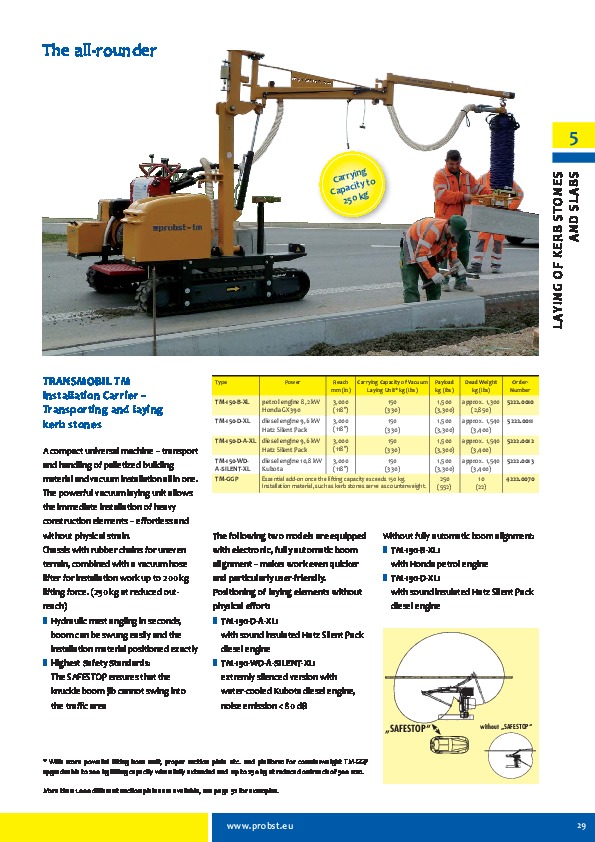

Technical specificationsA compact universal machine - transport and handling of palletized building
material and vacuum installation all in one. The powerful vacuum laying unit
allows the immediate installation of heavy construction elements - effortless
and without physical strain.
Standart Specifications:
- Robust vacuum lifting unit 150 kg capacity HE-150 and Operating valve unit
BE-Sprint-2, can be taken off the unit by quick release connections, for
example during the night (protction agains vandalism).
- The mast of the vacuum laying unit can be adjusted exactely vertically to
allow positioning of the lifting unit light as a feather alongsid the perfectly
horizontal jib. Adjustment approx. +/- 5 degree sideways; +/- 10 degree in
driving direction.
- Compact transportation measurements. The jib is lowered down without
manual power with a hydraulic cylinder.
- Quick and simpel locking of both knuckle boom links by operating just one
lever.
- Hour meter and ignition switch (safeguard in regard of insurance).
- Large open box for tools and accessories.
- The lifting unit is equipped with 2 fork tines. Working length 1,090 mm
(43”),
horizontally adjustable. Lifting height of the lifting unit 340 mm (131/2”),
lifting capacity 1,500 kg (3,300 Ibs).
- For maximum pallet-width of 1,300 mm (51”).
- Robust, powerful rubber crawler track - thus the TRANSMOBIL TM
maneuvers well and unfailing even on rough terrain. Travel speed approx. 2,2 km/h.
- Dimensions: Overall width 1,910 mm (75”). Total height in transporting
position 2,280 mm (90”). Total length in transporting position 2,300 mm
(91”).
- Driven by powerful vacuum turbine, also lifts porous materials.
Technical Data:
Engine: 9,6 kW Diesel Engine
Reach: 3,000 mm
Lifting Capacity of Vacuum: 150 kg
Payload: 1,500 kg
Dead Weight: 1,540 kg
material and vacuum installation all in one. The powerful vacuum laying unit
allows the immediate installation of heavy construction elements - effortless
and without physical strain.
Standart Specifications:
- Robust vacuum lifting unit 150 kg capacity HE-150 and Operating valve unit
BE-Sprint-2, can be taken off the unit by quick release connections, for
example during the night (protction agains vandalism).
- The mast of the vacuum laying unit can be adjusted exactely vertically to
allow positioning of the lifting unit light as a feather alongsid the perfectly
horizontal jib. Adjustment approx. +/- 5 degree sideways; +/- 10 degree in
driving direction.
- Compact transportation measurements. The jib is lowered down without
manual power with a hydraulic cylinder.
- Quick and simpel locking of both knuckle boom links by operating just one
lever.
- Hour meter and ignition switch (safeguard in regard of insurance).
- Large open box for tools and accessories.
- The lifting unit is equipped with 2 fork tines. Working length 1,090 mm
(43”),
horizontally adjustable. Lifting height of the lifting unit 340 mm (131/2”),
lifting capacity 1,500 kg (3,300 Ibs).
- For maximum pallet-width of 1,300 mm (51”).
- Robust, powerful rubber crawler track - thus the TRANSMOBIL TM
maneuvers well and unfailing even on rough terrain. Travel speed approx. 2,2 km/h.
- Dimensions: Overall width 1,910 mm (75”). Total height in transporting
position 2,280 mm (90”). Total length in transporting position 2,300 mm
(91”).
- Driven by powerful vacuum turbine, also lifts porous materials.
Technical Data:
Engine: 9,6 kW Diesel Engine
Reach: 3,000 mm
Lifting Capacity of Vacuum: 150 kg
Payload: 1,500 kg
Dead Weight: 1,540 kg
