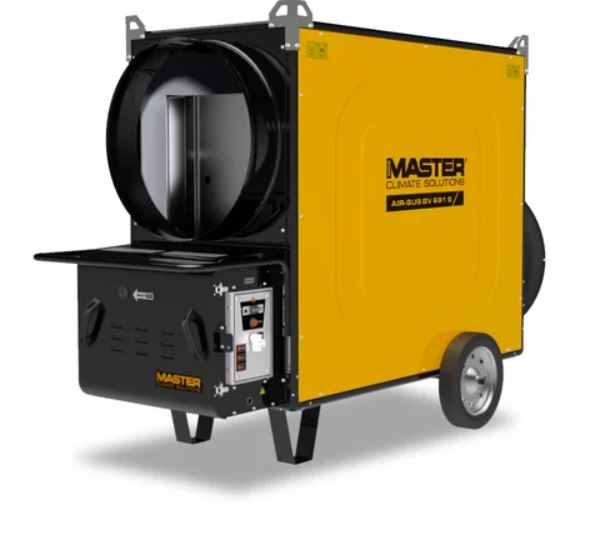

Indirect oil heater BV 691 S, 225 kW, 4-way outlet, Master

Power: 225 kW
Air displacement: 12.800 m³/h
Fuel consumption: 21,44 l/h
Thermostat control: optional
Packaging dimension (l x w x h): 2150 x 840 x 1560 mm
Rated current: 12,6 A
Flue tube Ø: 200 mm
Blast opening Ø: 4x320 mm
Net / gross weight: 380 / 410 kg
Power supply: 230/50 V/Hz
Fan: axial
Electric power: 2,8 kW
Product size (l x w x h): 2000 x 985 x 1620 mm

Axial fan
Achieved pressure 150 Pa
Possible connection to an optional room thermostat
Possible connection to 4, 2 or 1 flexible tubes
Flue gas exhaust
Separate oil burner
Summer-Winter switch for ventilation only
Fuel pre-heat filter included
Electronic flame control with photocell
Fan-Limit thermostat with automatic reset
Limit thermostat with manual reset
Two oil filters: oil pump filter and suction filter
Suction filter with heating option as a standard
High efficiency heat exchanger
Stainless steel combustion chamber
Trolley included
On request: gas burner instead of oil burner
