Metallkraft
Check out the range

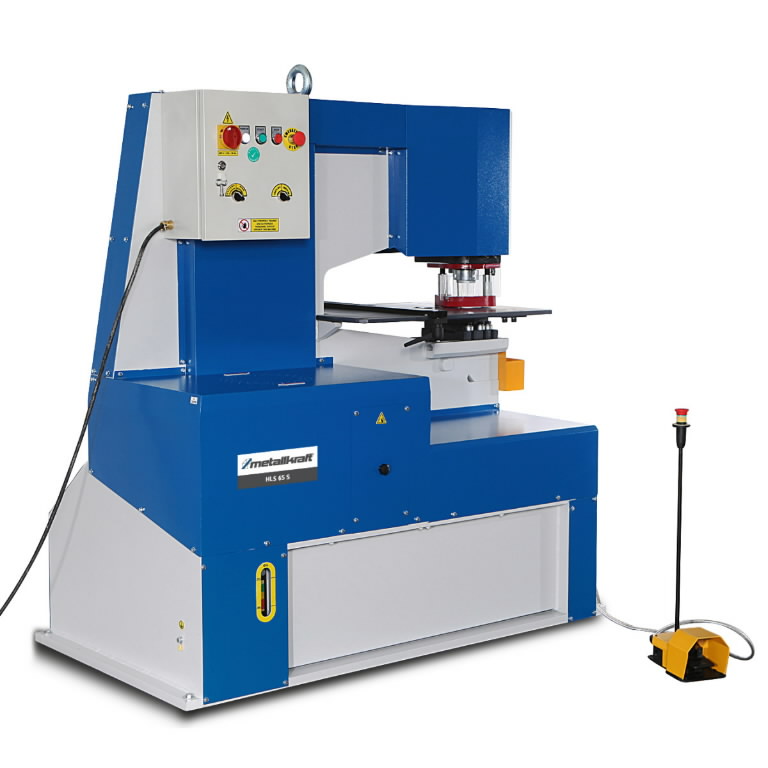

Hydraulic punch HLS 65 S, METALLK

Item code:3818065&METALLK
Arrow forward outline
Back
Request offer
Compare
Feature
Technical specifications
Drive motor output 5.5kW
Supply voltage 400V
Punching force 65t
Punching station diameter x max. sheet thickness (steel 400 N/mm²) 26x20mm
Punching station diameter x max. sheet thickness (steel 400 N/mm²) 57x10mm
Punching station reach 625mm
Punching station max. lift stroke 55mm
Punching station stroke count 22/min
Punching station working height 950mm
Dimensions (l*w*h) 1600x900x1800mm
Weight 2440kg

Delivery contents:
Stamp holder with bayonet lock
Stamp and Die Reductions No. 1, No. 2, No. 3, No. 30, No. 45 and No. 60
Stop with scale
pedal
hook wrench
hydraulic oil
