Suction rate: 650 l/min
Filling capacity: 520 l/min
Effective delivery volume (at 80% max. pressure): 450 l/min
Maximum pressure: 11 bar
Mains voltage: 380 - 415 V
Rated input power: 4 kW
Maximum speed: 1400 rpm
Tank capacity: 90 l
Sound pressure level (LpA): 88 dB(A)
Sound power level (LwA): 97 dB(A)
Dimensions: 1188 x 520 x 1110 mm
Weight: 119 kg
Cable length: 1.5 m
More powerful and robust V-belt compressor for demanding use
Belt drive for low speeds and a particularly quiet operation
Two-stage compression for particularly high performance and long service life
For three-phase current
Working pressure can be regulated according to application and air quality improved thanks to the filter pressure reducer with manometer and oil-mist lubricator
Convenient pressure switch for good cold starting, complete with relief valve
Additional manometer for displaying the tank pressure
Overload protection: protects the motor from overheating
Oil-lubricated 2-cylinder piston compressors for high air supply volume

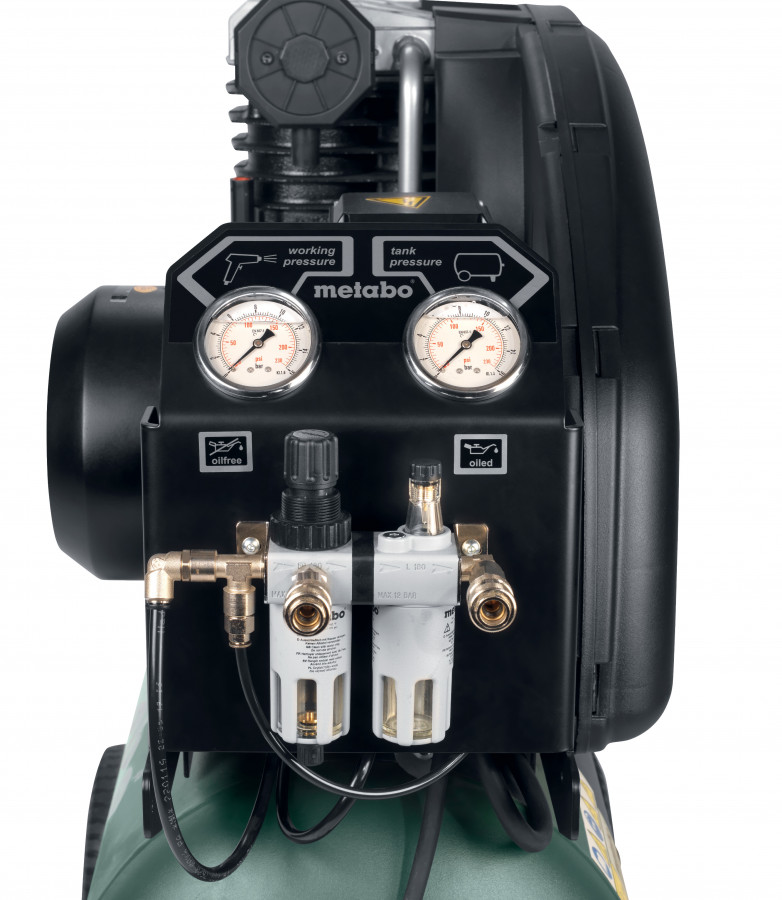

Instrument panel with easy to read manometer for tank- and working pressure
Re-cooler for less condensation water formation
Large, rubberised wheels for comfortable transport
Steering castors with locking brake for high manoeuvrability
Cable winding mechanism
Ergonomic and long pull handle with integrated cable drum
10 year tank warranty against rust
Scope of delivery
3 Universal couplings
