Comparative technical values:
Suction rate: 280 l/min
Filling capacit:y 140 l/min
Effective delivery volume (at 7.2 bar working pressure): 130 l/min
Maximum pressure: 8 bar
Rated input power: 1,7 kW
Maximum speed: 2.850 /min
Tank capacity: 50 l
Sound pressure level (LpA): 97 dB(A)
Dimensions: 770 x 386 x 662 mm
Weight: 30 kg

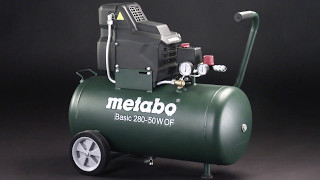

Powerful, robust compressor for simple, commercial use
Oil-free piston compressor: simple transportation and reduced service requirements
For single phase alternating current
Operating pressure can be regulated according to application by means of a pressure reducer and manometer
Convenient pressure switch for good cold starting, complete with relief valve
Overload protection: protects the motor from overheating
Rubberised, stable wheels for mobile use
No testing required before initial operation
Additional manometer for displaying the tank pressure
Rubber-coated handle for comfortable handling
10 year tank warranty against rust
Scope of delivery:
Universal quick-action coupling, pull handle with rubber-grip
