Technical specificationsNo offset with rear wheels for agri purposes
Hammer blades
For rear use, CAT3
Dedicated for intensive work and rough terrains, ideal for service providers
Recommended power requirement: 100-260 hp
Working width 4,0m
Transport width 4,32m
Weight 2200kg
Rear wheels 2 pcs 10/8.0x 12.8, semi pivoting (180°) for transport position
PTO Walterscheid, 2 pcs
PTO speed 1000 rpm, freewheel clutch

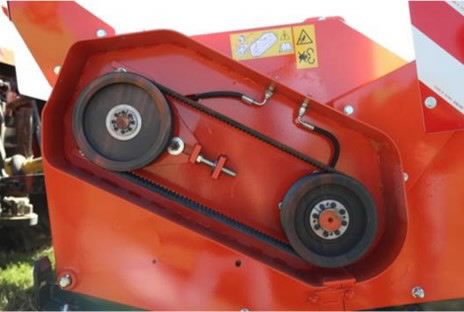

No of transmission belts 2x4, V-belts, screw tensioning
Hammer blades 78 pcs, available also universal/Y-blades 152 pcs
Blade distance 55 mm
Rotor 273 x 10 mm
Cutting diameter 767 mm
Rotor speed 1603 rpm
Blade tip speed 64 m/s
Skids
Centralized greasing point on each side

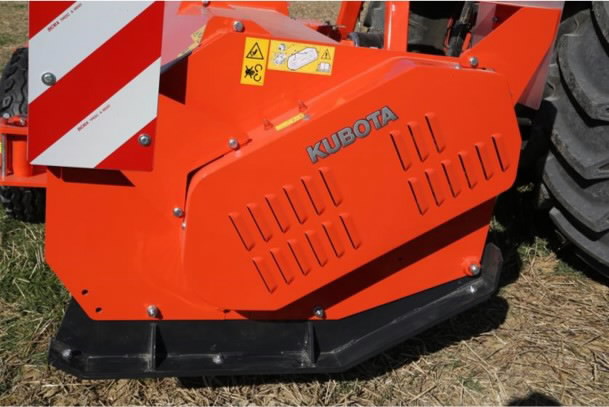

Removable side cover for easy and fast maintenance
Optional equipment (included in price):
Warning panel for road transport
2nd counterknife for ideal cutting quality
Bolted double skin
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
Hammer blades
For rear use, CAT3
Dedicated for intensive work and rough terrains, ideal for service providers
Recommended power requirement: 100-260 hp
Working width 4,0m
Transport width 4,32m
Weight 2200kg
Rear wheels 2 pcs 10/8.0x 12.8, semi pivoting (180°) for transport position
PTO Walterscheid, 2 pcs
PTO speed 1000 rpm, freewheel clutch
No of transmission belts 2x4, V-belts, screw tensioning
Hammer blades 78 pcs, available also universal/Y-blades 152 pcs
Blade distance 55 mm
Rotor 273 x 10 mm
Cutting diameter 767 mm
Rotor speed 1603 rpm
Blade tip speed 64 m/s
Skids
Centralized greasing point on each side
Removable side cover for easy and fast maintenance
Optional equipment (included in price):
Warning panel for road transport
2nd counterknife for ideal cutting quality
Bolted double skin
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
Chopper KUBOTA SE 8400HB, Kubota
Request offer
