- Wide choice of blades and sideways adjustment to maneuver around or under trees and bushes

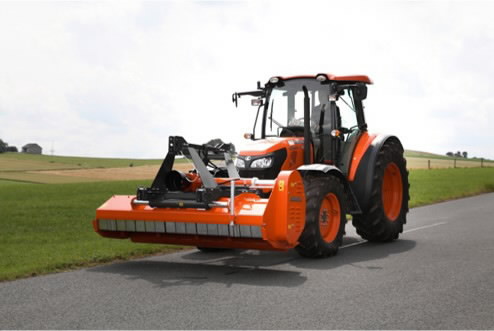

- As well for front and rear use
- Five grooved V-belts with an automatic tensioner ensure smooth power transmission. No maintenance required

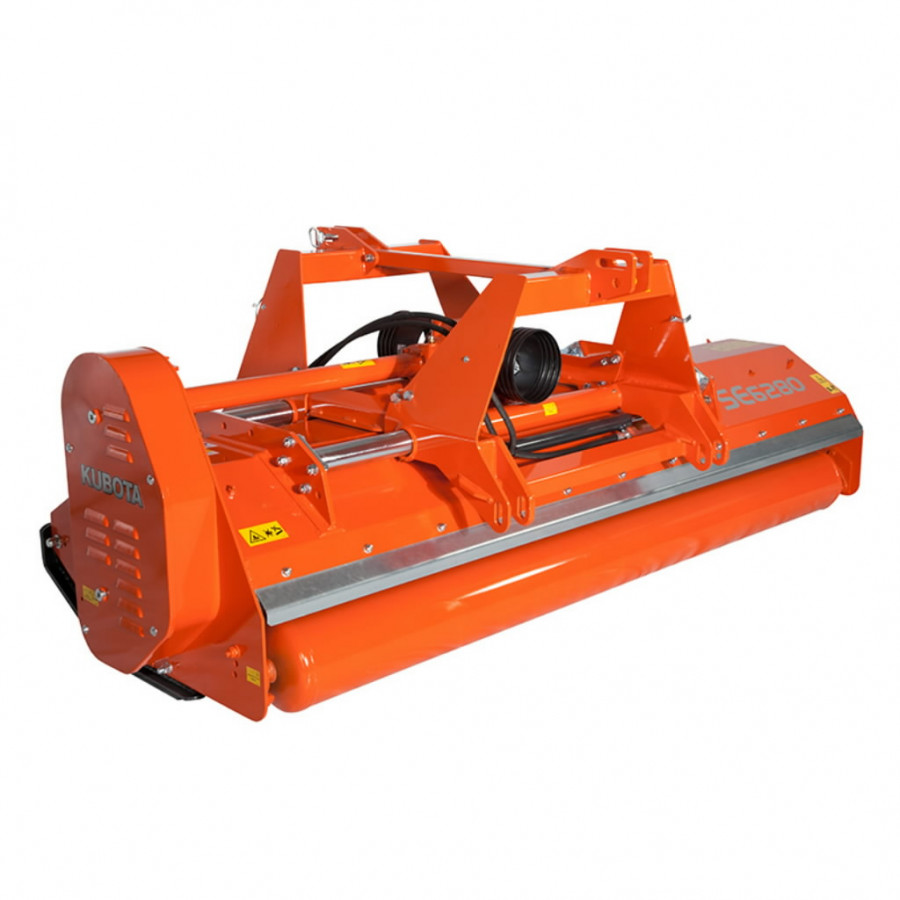

Offset multifunctional chopper
Compact heavy duty machine
For tractors 90 - 160 hp
Solid construction for long life and minimal maintenance
The standard roller and the skids support the chopper and provide a regular working height
Compact heavy duty machine
For tractors 90 - 160 hp
Solid construction for long life and minimal maintenance
The standard roller and the skids support the chopper and provide a regular working height
Working width:2,8 m
Transport width:3,0 m
PTO:540/1000 rpm
Power requirement:90-160 hp
Universal blades:72
Hammer blades:36
Offset:550 mm
Rear roller diam.:245 mm
As well for front and rear use, CAT2

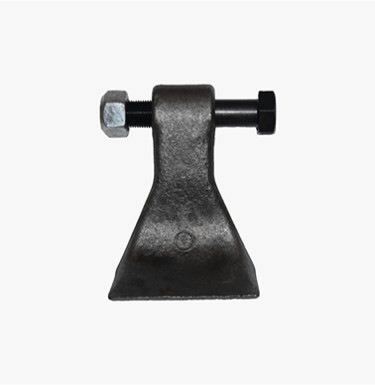

With hammer blades
Recommended power requirement: 90-160 hp
Working width 2,8 m
Transport width 3,0 m
Weight 1220 kg
PTO Walterscheid
PTO speed 540/1000 rpm
No of transmission belts 5, V-belts, automatic tensioning, maintenance free
Hammer blades 36 pcs, available also universal blades 72 pcs
Blade distance 75 mm
Cutting height adjustable in 3 steps

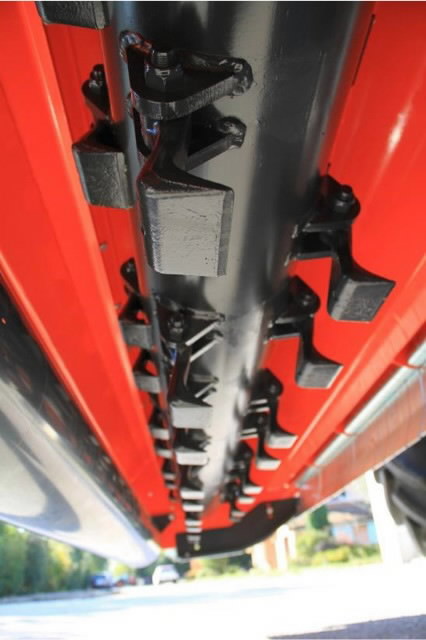

Rotor 245 x 10 mm
Cutting diameter 541 mm
Rotor speed 1844-1949 rpm
Blade tip speed 52-55 m/s
Offset: 550 mm, hydraulically adjustable
Rear roller diam 245 mm
Skids
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
