Technical specificationsMultifunctional chopper with offset
For rear use, CAT2
With universal blades
Recommended power requirement: 70-160 hp
Working width 2,8 m
Transport width 3,0 m
Weight 1135 kg
PTO Walterscheid
PTO speed 540/1000 rpm

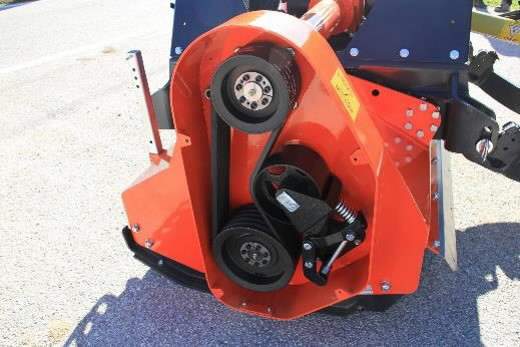

No of transmission belts 5, V-belts, automatic tensioning, maintenance free

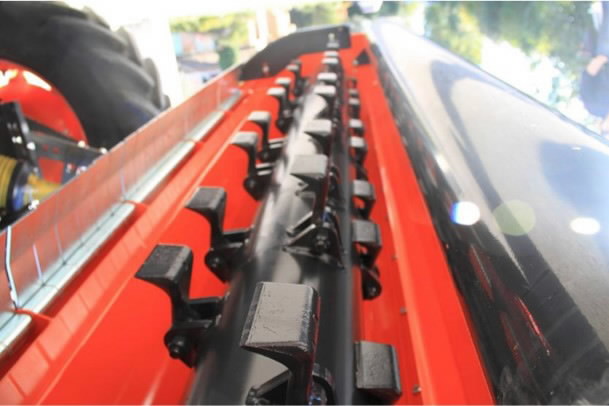

Universal blades 72 pcs, available also with hammer blades 36 pcs
Blade distance 75 mm
Rotor 245 x 10 mm
Cutting diameter 541 mm
Rotor speed 1844-1949 rpm
Blade tip speed 52-55 m/s
Offset: 550 mm, hydraulically adjustable
Rear roller diam 245 mm
Skids
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
