Technical specificationsMultifunctional chopper with offset
As well for front and rear use, CAT2
With hammer blades
Recommended power requirement: 60-140 hp
Working width 3,25 m
Transport width 3,45 m
Weight 1080 kg
PTO Walterscheid
PTO speed 540/1000 rpm
No of transmission belts 5, V-belts, automatic tensioning, maintenance free

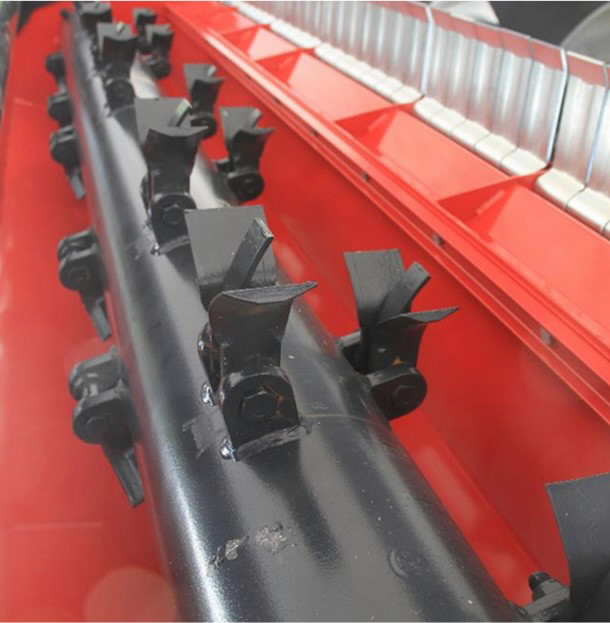

Hammer blades 28 pcs, available also universal (Y) blades 56 pcs
Blade distance 75 mm
Rotor 220 x 10 mm
Cutting diameter 503 mm
Rotor speed 1730-1828 rpm
Blade tip speed 46-48 m/s
Offset: 500 mm, hydraulically adjustable, auto-alignment

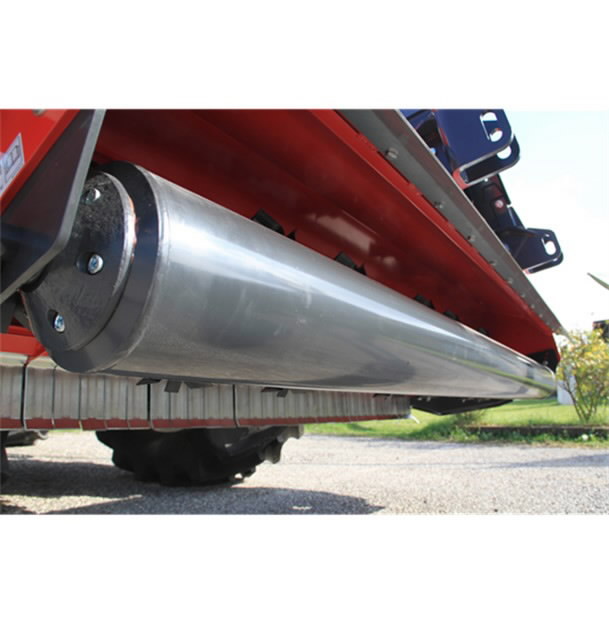

Rear roller diam 195 mm
Skids
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
