Kubota
Check out the range

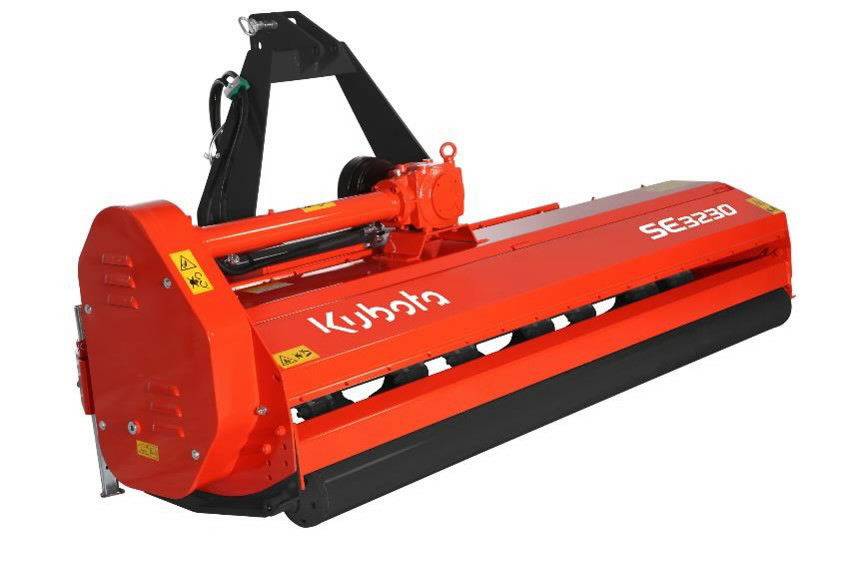

Chopper KUBOTA SE 3230, Kubota

Item code:SE3230&KUB
Arrow forward outline
Back
  • Wide choice of blades and sideways adjustment to maneuver around or under trees and bushes
Like
Request offer
Compare
Offset chopper Compact heavy duty machine For tractors 50 - 75 hp Solid construction for long life and minimal maintenance The standard roller and the skids support the chopper and provide a regular working height
Feature
Technical specifications
Working width
2,3 m
Transport width
2,52 m
PTO
540 rpm
Power requirement
50 -75 hp
Universal blades
60
Hammer blades
30
Offset
500 mm
Rear roller diam.
160 mm
For rear use, CAT2
Offset chopper

Recommended power requirement: 50-75 hj
Working width 2,3 m
Transport width 2,52 m
Weight 620 kg

PTO speed 540 rpm, freewheel clutch
Transmission belts 5, V-belts, automatic tensioning, maintenance free
Universal blades 60 pcs, available also hammer blades 30 pcs
Blade distance 75 mm
Rotor 169 x 10 mm
Rotori shaft diam 50 mm
Cutting diam 452 mm
Rotor speed 2160 rpm
Blade tip speed 51 m/s
Offset 500 mm
Rear roller diam 160 mm
Skids
Double skin 4mm

Manufactured in Italy
Warranty 2 years

Pictures are illustrative and for non-contractual use
