Technical specificationsOffset verge chopper
For rear use, CAT2
Different working angle positions: adjustable +90/-65°
Horisontal working angle: adjustable 30-125 °
Recommended power requirement: 70-150 hp
Working width 2,5 m
Transport width 3,05m
Weight 985kg
PTO Walterscheid
PTO speed 540 rpm, freewheel clutch
Transmission belts 5 pcs, V-belts, automatic tensioning, maintenance free
As standard an oil accumulator (180bar loaded) prevent damages due to obstacles collision, by folding in chopping unit
Hammer blades 32 pcs, available also universal blades 64 pcs
Blades distance 75 mm
Rotor 169 x 10 mm
Cutting diameter 452 mm
Rotor speed 1858 rpm
Blade tip speed 44 m/s
Offset: 1250 mm, hydraulically adjustable
Rear roller diam 195 mm
Skids
Double skin 4mm as standard
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
For rear use, CAT2
Different working angle positions: adjustable +90/-65°
Horisontal working angle: adjustable 30-125 °
Recommended power requirement: 70-150 hp
Working width 2,5 m
Transport width 3,05m
Weight 985kg
PTO Walterscheid
PTO speed 540 rpm, freewheel clutch
Transmission belts 5 pcs, V-belts, automatic tensioning, maintenance free
As standard an oil accumulator (180bar loaded) prevent damages due to obstacles collision, by folding in chopping unit
Hammer blades 32 pcs, available also universal blades 64 pcs
Blades distance 75 mm
Rotor 169 x 10 mm
Cutting diameter 452 mm
Rotor speed 1858 rpm
Blade tip speed 44 m/s
Offset: 1250 mm, hydraulically adjustable
Rear roller diam 195 mm
Skids
Double skin 4mm as standard
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use

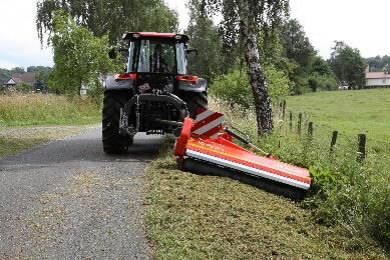

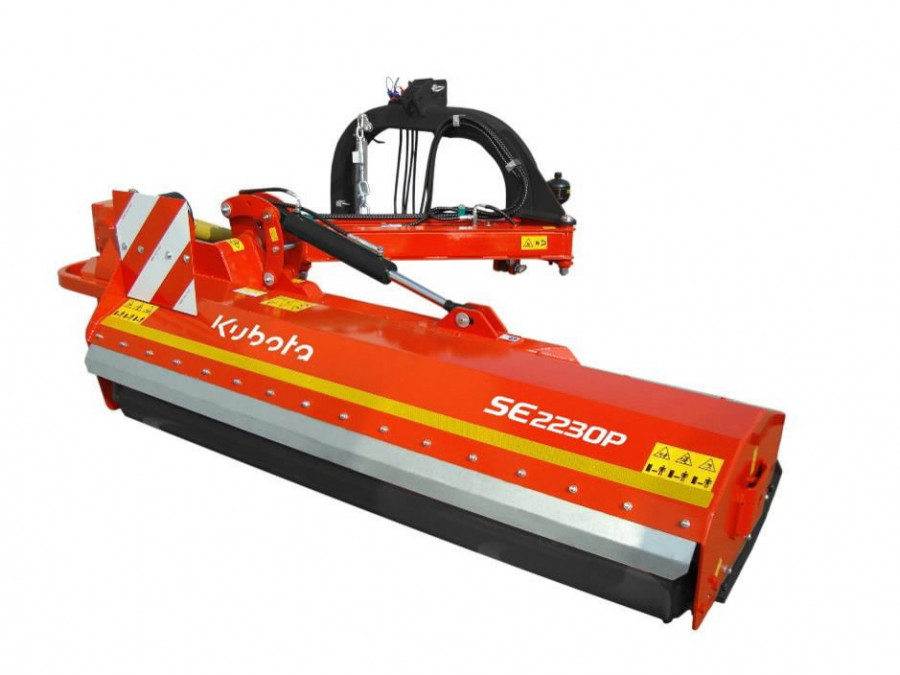

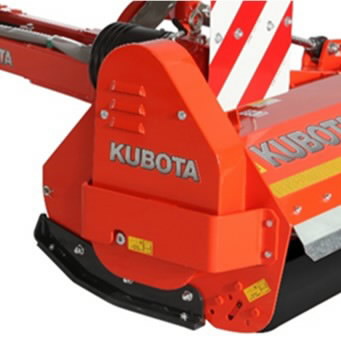

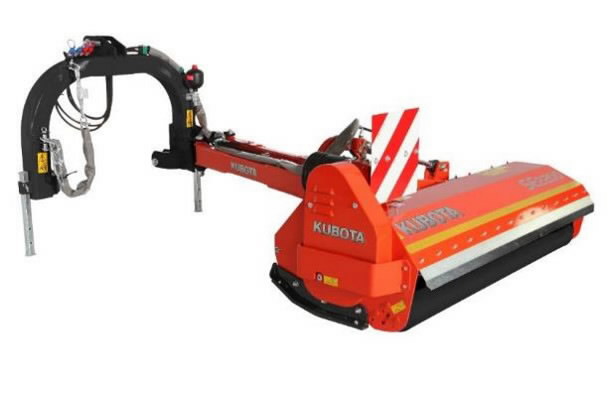

Chopper KUBOTA SE 2250P HB, Kubota
