Technical specificationsOffset verge chopper
For rear use, CAT2
Different working angle positions: adjustable +90/-65°
Horisontal working angle: adjustable 30-125 °
Recommended power requirement: 70-150 hp
Working width 2,3 m
Transport width 2,85m
Weight 960kg
PTO Walterscheid
PTO speed 540 rpm, freewheel clutch
Transmission belts 5 pcs, V-belts, automatic tensioning, maintenance free
As standard an oil accumulator (180bar loaded) prevent damages due to obstacles collision, by folding in chopping unit
Universal/Y-blades 60 pcs, available also hammer blades 30 pcs
Blades distance 75 mm
Rotor 169 x 10 mm
Cutting diameter 452 mm
Rotor speed 1858 rpm
Blade tip speed 44 m/s
Offset: 1250 mm, hydraulically adjustable
Rear roller diam 195 mm
Skids
Double skin 4mm as standard
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use
For rear use, CAT2
Different working angle positions: adjustable +90/-65°
Horisontal working angle: adjustable 30-125 °
Recommended power requirement: 70-150 hp
Working width 2,3 m
Transport width 2,85m
Weight 960kg
PTO Walterscheid
PTO speed 540 rpm, freewheel clutch
Transmission belts 5 pcs, V-belts, automatic tensioning, maintenance free
As standard an oil accumulator (180bar loaded) prevent damages due to obstacles collision, by folding in chopping unit
Universal/Y-blades 60 pcs, available also hammer blades 30 pcs
Blades distance 75 mm
Rotor 169 x 10 mm
Cutting diameter 452 mm
Rotor speed 1858 rpm
Blade tip speed 44 m/s
Offset: 1250 mm, hydraulically adjustable
Rear roller diam 195 mm
Skids
Double skin 4mm as standard
Manufactured in Italy
Warranty 2 years
Pictures are illustrative and for non-contractual use

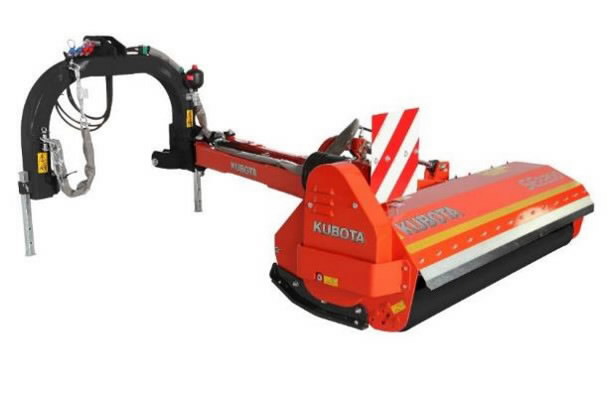

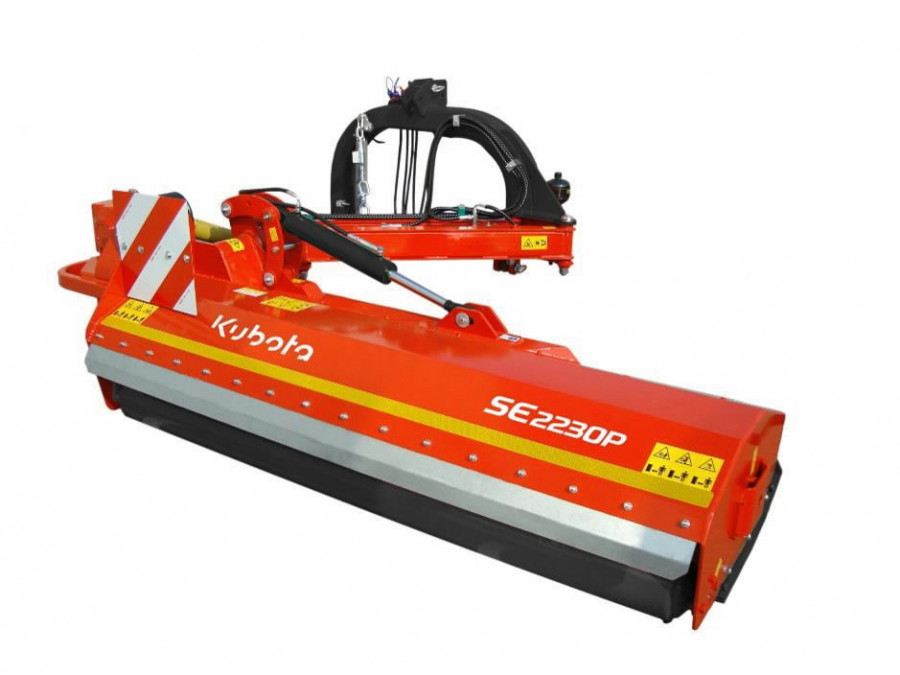

Chopper KUBOTA SE 2230P, Kubota
