- 400mm SideShift of mowing unit to adjust to changing field conditions
- New suspension concept inspired by racecar suspensions
- New efficient FlipOver – no need to dismantle swath plates – change is a 1 minute job
- New BreakAway protection across full working witdth – no limiting factors
- Excellent weight distribution during transport – integrated vertical parking device
- Vario - Adjustment on the GO
- GEOMOW – control the headland with Section Control

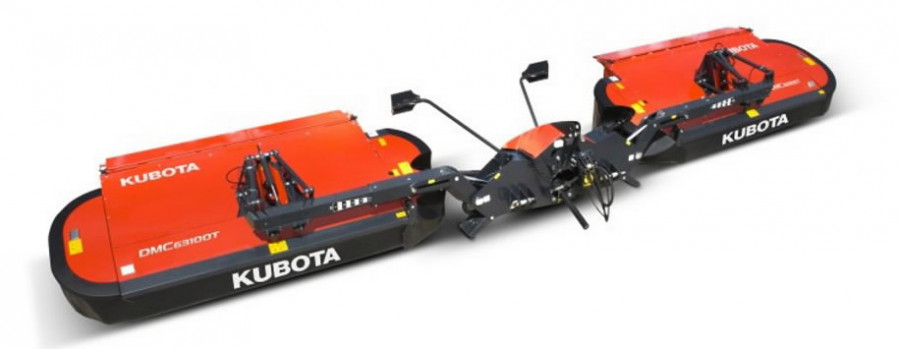

Butterfly mower with a racecar QuattroLink Suspension Concept
Fully welded cutterbar design
Excellent Ground Following System
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Fully welded cutterbar design
Excellent Ground Following System
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Cutting width (included front mower)
9,8 - 10,2 m
Transport width
2,9 m
PTO
1000 rpm
Hitch
CAT2
Power requirement (included front mower) min 200 hp
Number of discs
2x10
Number of knives
2x30
Conditioner type
SemiSwing metal tines
Conditioner speed
1000/700 rpm
Hydraulics
required LS
New efficient FlipOver – no need to dismantle swath plates – change is a 1 minute job
New BreakAway protection across full working witdth – no limiting factors
Excellent weight distribution during transport – integrated vertical parking device
Vario - Adjustment on the GO
GEOMOW – control the headland with Section Control
Fully welded cutterbar design
Butterfly mower with a racecar QuattroLink Suspension Concept
Excellent Ground Following System
Very low power consumption and noise level - thanks to specially designed cutterbar bearings and transmission details
Butterfly mower conditioner
Quick changeable knives
QuattroLink suspension
Central drawbars
CAT 2 attachments
Cutting width (included front mower): 9,8 - 10,2 m
Transport width: 2,9 m
PTO: 1000 rpm
Conditioner type: SemiSwing metal tines
Conditioner speed: 1000/700 rpm
Number of discs: 2x10
Number of knives: 2x30
Lights for road transport

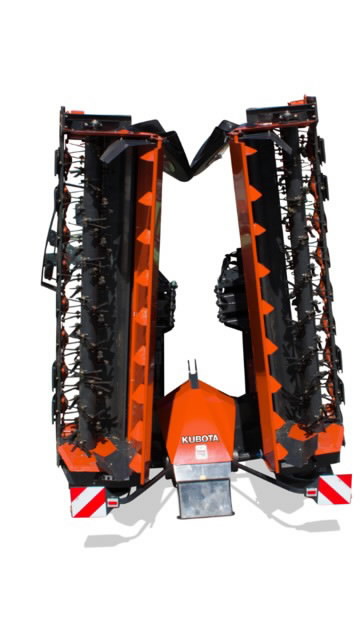

Hydraulically foldable to transport and working position
Weight 3120 kg
Power requirement (included front mower) min 200 hp
Hydraulics: required LS
Oil flow is automatically adjusted to actual consumption at any given time, no risk of overheating oil due to high overflow

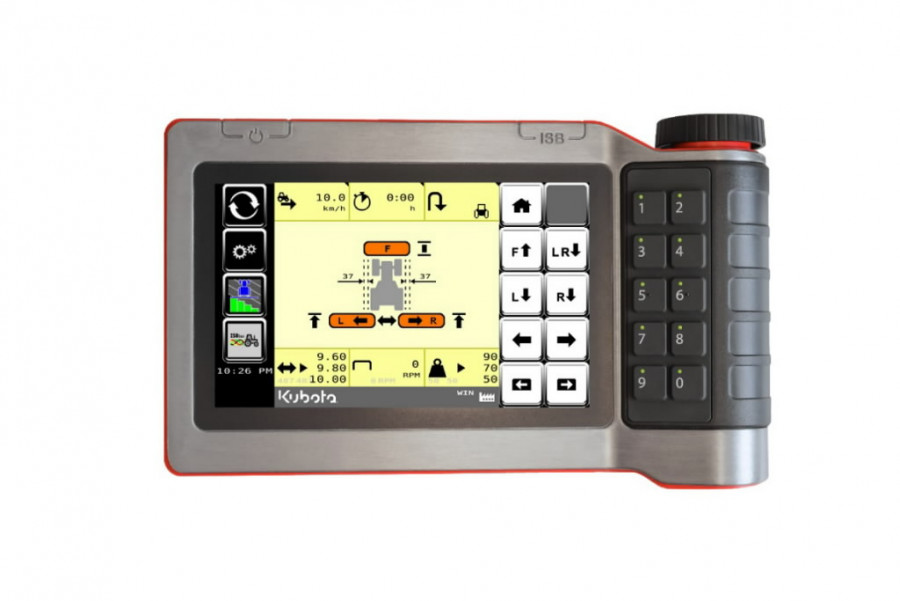

Flow is controlled electronically from control box

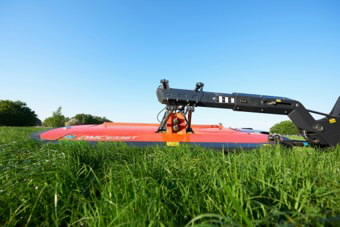

QuattroLink suspension is developed for better tracking, faster speed and instant ground adapation
700mm vertical working range
30°Transverse working range
Constant ground pressure
Geomow allows potential increase in capacity up to 10%
There is included in price the following optional equipment:
* high cut skids 40 mm 2 pcs (cutting height 45-90 mm)
* protection cutterbar-end
Manufactured in Denmark
Warranty 2 years
Pictures are illustrative and for non-contractual use
