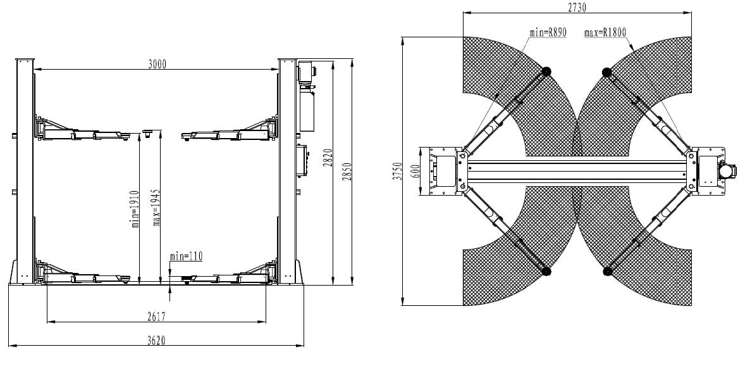

Technical data
Weight 1000 kg
Lifting capacity 5000 kg
Lift height 1910 mm
Platform initial height 110 mm
Height 2850 mm
Width 3620 mm
Lifting arms lenght: 890-1800mm
Lifting time ≤ 45 s
Descent time ~ 45 s
Power supply 3/N/PE-380V, 50Hz,16A
Power 3 kW
Hydraulic oil 12 L
Working temperature 5° - 40° C
Working humidity 30 - 95%
Noise < 70db
Storage temperature -25° - 55°
Foundation depth w/o floor covering 300 mm
Concrete strength B25
Fuse protection 3C16 A
Size of the concrete block 1,5m x 4m x 0,3m
The lift should be fixed on a smooth and solid concrete ground with its strength more than 210 kg/cm², tolerance of fatness less than 5mm and minimum thickness of 300mm. In addition, newly built concrete ground must undergo more than 28 days’ cure and reinforcement.
All pictures and videos are illustrative.
