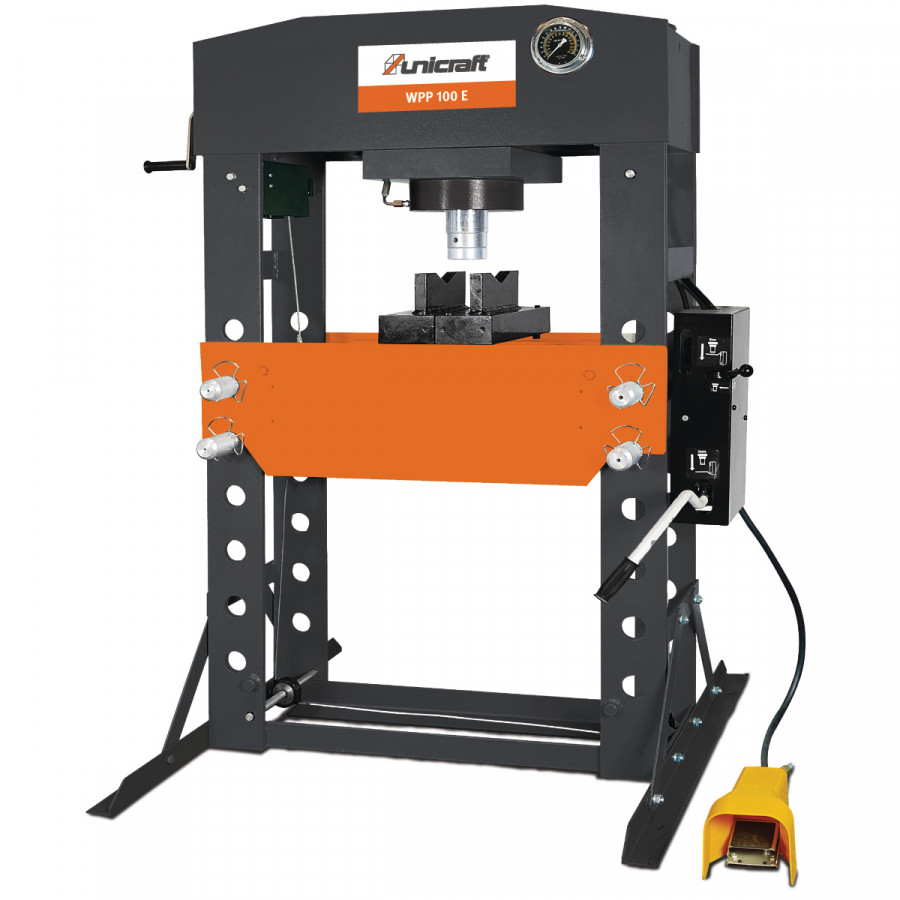

Hydraulic press 100T WPP 100 E

Robust press with conventional equipment Ideal for versatile use in crafts and repairs in schools, training workshops, garages, workshops, agriculture, forestry and horticulture Press cylinder with integrated return spring Display of the pressure via pressure gauge Pressure force 100t Piston stroke 300mm Piston travel 254mm Piston stroke per pumping operation footpedal 5.85mm Piston speed with foot pedal 3.33mm/s Length (product) approx. 1199mm Width/depth (product) approx. 990mm Height (product) approx. 1848mm Net weight approx. 666kg Width/depth of machine feet 990mm Frame depth 268mm Hole spacing for table height adjustment 140mm Clear height max. 813mm Clear height min. 113mm Clear width 787mm Diameter piston rod 140mm Hydraulic oil tank capacity 4.95l Air consumption approx. 200l/min Pneumatic operating pressure 7.5 – 8.5bar
