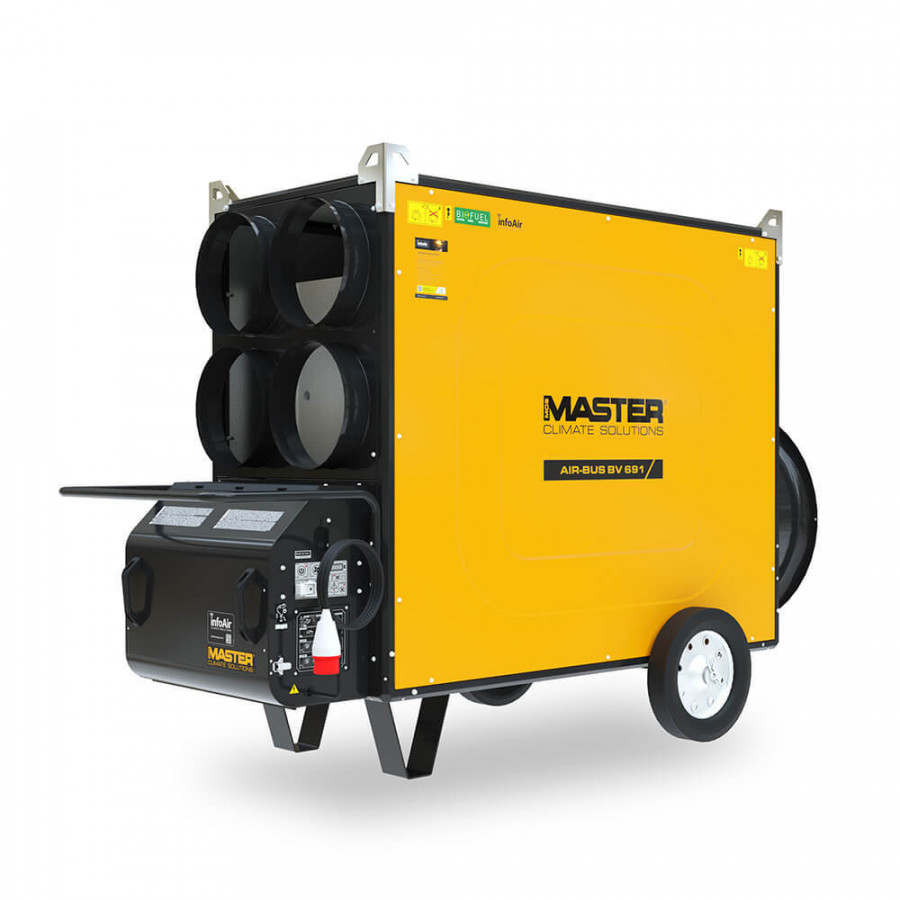

Oil heater BV 691 TE 3ph, 4 air outlets 225 kW BV 691 TE

Key Features: Compatible with remote monitoring system InfoAir Strong and robust steel frame with metric bolts Powerful fan Air pressure: 250 Pa Digital control of the combustion Unique 'cold start' button for very cold environments Possible connection to 4, 2, or 1 flexible tubes Flue gas exhaust Separate Riello oil burner Summer/Winter switch for ventilation only Electronic flame control with photocell Fan-Limit thermostat with automatic reset Limit thermostat with manual reset Fuel preheater Two oil filters: oil pump filter and suction filter Quick connector to external tank (optional) High-efficiency heat exchanger made of stainless steel pipes Stainless steel combustion chamber Robust wheels included 4 robust crane hooks Fuel compatibility: biofuel HVO 100, diesel, or kerosene Heating power: 225 kW Heating power: 768000 Btu/h Heating power: 193500 kcal/h Air flow: 12800 m³/h Fan type: Axial Air pressure: 250 Pa Thermostat control: Analogue or digital Fuel consumption: 21,44 l/h Power supply: 380-400/3ph/50 V/Hz Electric power: 2,8 kW Rated current : 6,5 A Electronic box protection: IP44 Flue tube:Ø: 200 mm Air outlet diameter: 4 x 320 mm Product size (l x w x h): 2150 x 840 x 1560 mm Box size (l x w x h): 2200 x 985 x 1620 mm Net/gross weight: 380/410 kg Suitable for: Agriculture Automotive Commercial buildings Construction Emergency services Events and festivals Industrial, factories and production Military and aerospace Rental companies Transport and logistics
