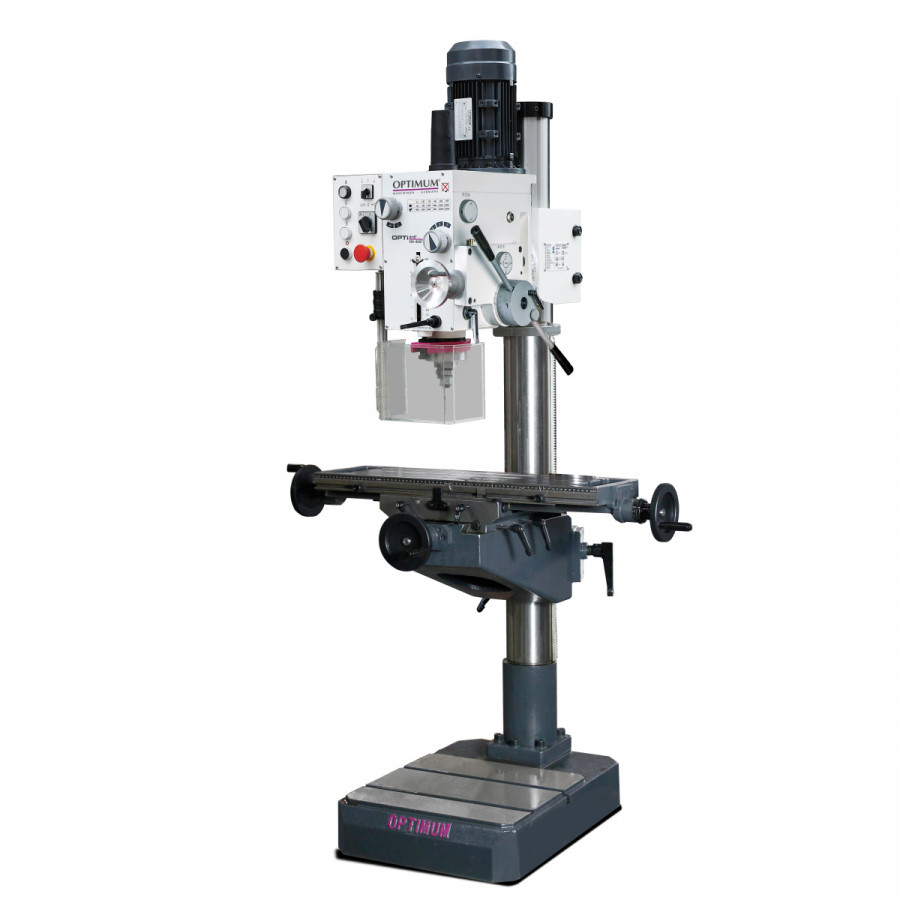

Product info
Electrical connection 400 V / 3 Ph ~50 Hz
Motor power 1.1 / 1.5 kW
Drilling capacity in steel (S235JR)32 mm
Continuous drilling cap. steel 25 mm
Thread tapping steel (S235JR) M16
Throat depth 280 mm
Spindle stroke 120 mm
Spindle sea tMT 4
Spindle speeds 95 - 3 200 rpm
Number of steps 2 x 6 speeds
Quill feed speed 0.1 / 0.18 / 0.26mm/rev
Drilling head angle 45°
Drilling table size length x width 730 x 210 mm
T-slot size (slot width)14 mm
Travel X axis manual 480mm
Travel Y axis manual 180mm
Travel Z axis manual560mm
Length x width x height 1060 x 745 x 2090 mm
Net weight 370 kg
