2689,99 €
Factory order. Ask for delivery time
Product info

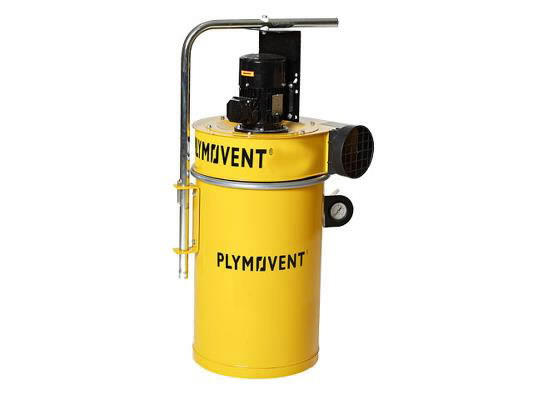

The MistWizard MW-2 for wall mounting.
The filter effectively collects the coolant mist and smoke from the machine process and returns the recovered coolant back to the machine tool.
The MistWizard features a three-way filter system:
• AquaSpin cyclonic inlet
• oil coalescing filter wrapper; filter class G3
• CoolantTec hydrophobic filter cartridge
A pressure gauge indicates the degree of saturation of the filter cartridge.
Kit contains the MistWizard oilmist filter and FUA-1800 fan.
Technical data:
Oilmist filter dimensions H = 600 mm / D 420 mm;
Filter (CoolantTec) 10 m²;
Extraction fan input 400V/3ph/50Hz;
Energy consumption 0,55 kW;
Max air volume 1000 m³/h;
Control - with manual switch;
Overall height 1070 mm;
Overall weight 25 kg.
- Weight 25 kg
- Weight with package 25 kg
- Sales unit pcs
- GTIN / EAN 8717491303375
