Product info
This arm/fan combination is recommended for light duty welding - e.g. maintenance work and workbench applications.

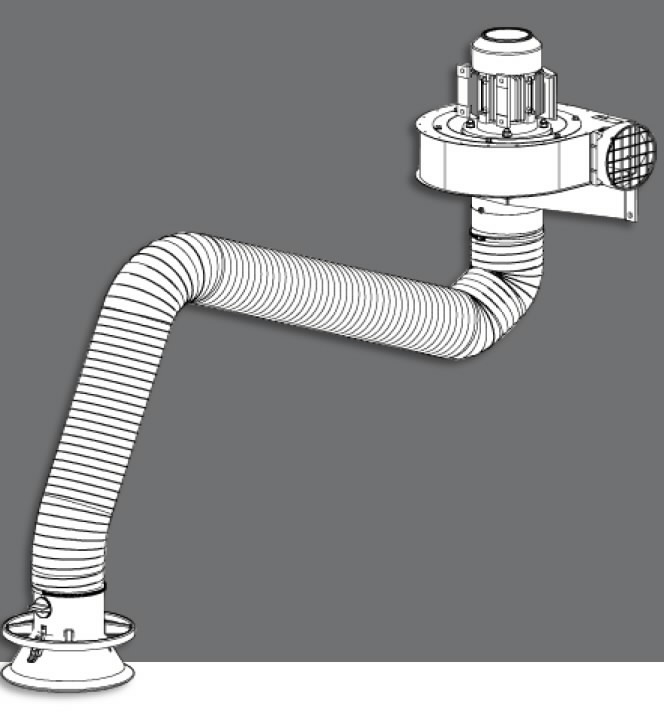

Extraction arm (EconomyArm), the spring-balanced support mechanism and friction brake guarantee smooth operation inside the entire working radius.
Extraction arm length 4m, diameter 160mm.
Arm is 360° rotatable.
Easy to use ring handle.
Low noise level.
Fan 0,55kW. Max. air volume 1000 m³/h.
Connection voltage 400V/3ph/50Hz.
Total weight approx.36kg.
Control equipment: wall mounted on/off switch.
Item 0000110465 includes: 0000100303 (fan FUA-1800) + 0000101146 (extraction arm EA-4/H) + 0328270150 (switch MPS).
- Weight 36 kg
- Weight with package 36 kg
- Sales unit pcs
- GTIN / EAN 8717491303290
- Manufacturer part number 0000110465
