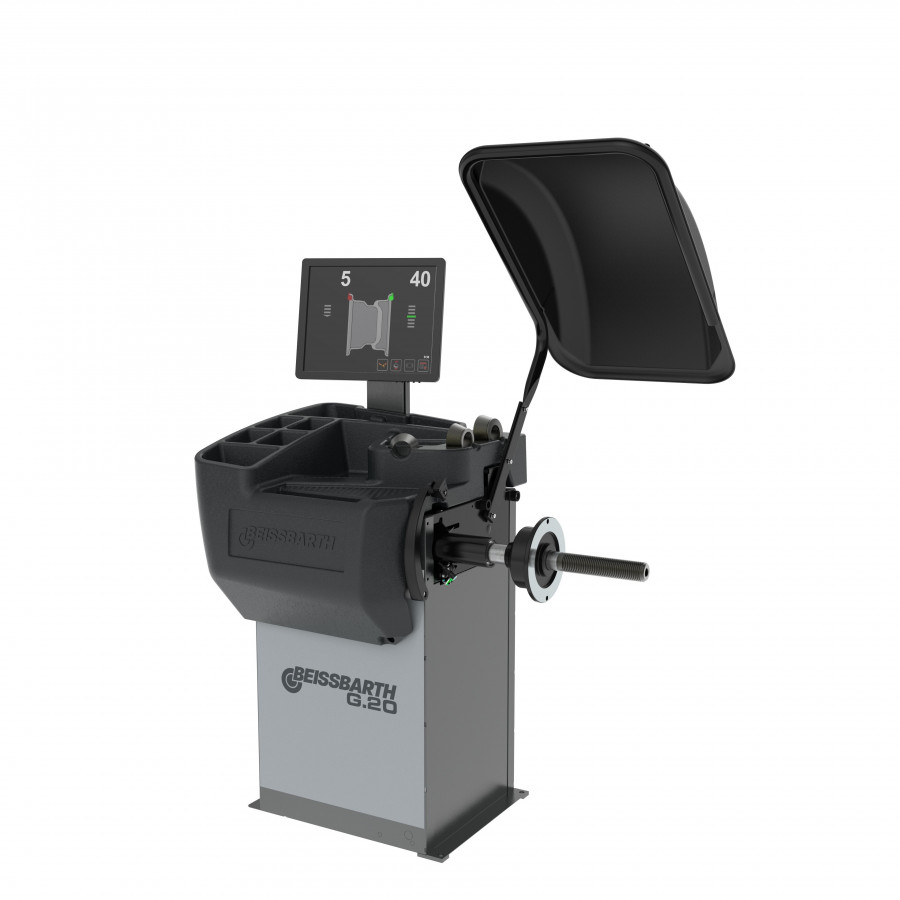

Wheel balancer G.20

Compact car wheel balancer Measurement and balancing: Balancing in 4.7 seconds Automatic stop of the wheel 15° before correction position LED for better visibility when placing weights Internal line laser for precise positioning of weights Split program for hiding weights behind different spokes Wheel data recognition: Automatic data arm for measuring distance and diameter and weight placement Automatic selection ofclip-on and adhesive weight program Highest measurement accuracy +/- 0.5g Auto Adaptive Mode: Dynamic tolerance adjustment based on weight and size Minimizes remaining imbalance to eliminate smallest vibrations noticeable by the driver Wheel guard with virtual sonar: Automatic recognition of rim width in steel rims Without manual input with measuring gauge or sonar Closing of wheel guard automatically starts balancing program 17" touchscreen monitor: Graphical step-by-step illustrations Simplifies correct balancing with guided processes Touchscreen usbale with gloves on Quick clamping: Mechanical clamping with quick-lock nut Stable 40mm shaft Wheel weights up to 75kg Optional with wheel lift Scope of delivery: 4 cones Ø43-112,5mm Quick-lock nut ProGrip 40x4 Clamping cap Pressure ring Rubber ring 60g counterweight Weight pliers Max. wheel diameter 36" | 914mm " Weight 110 kg Shaft diameter 40 mm Measuring speed 100 rpm Measuring time 4,7 s Display 17" Industrial Touchscreen Max. rim width 20 " Max. rim diameter 30 " Max. wheel weight 75 kg Length 1100 mm Height 1550 mm Electrical connection 230 V | 50 - 60 Hz | 1 ph Width 960 mm Motor power 0,15 kW Min. rim diameter 10 " Number of cones 4 Balancing accuracy +/- 0,5 g Packaging length 1100 mm Packaging width 700 mm Packaging height 1165 mm Min. rim width 1,5 "
