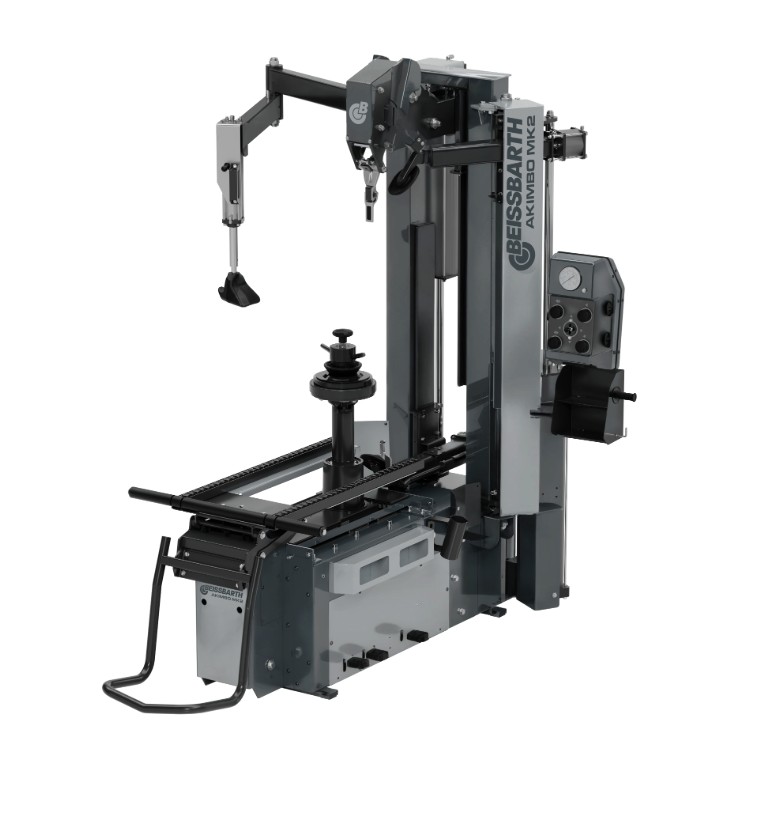

Tyre changer leverless Akimbo MK2 | WDK

Leverless Demounting Group and Center Post Locking No contact with the rim Center hole clamping ensures firm grip of wheel Mechanical locking pin for high durability Optional clamping adapters for closed center rims Automatic Adjustment to Rim Size Radial positioning of tools and both bead breaker discs with rim size Guided by laser to prevent tools from damaging rims Infinitely variable from 10 to 33" rims Automatically moves leverless tool and both bead breaking discs out of working zone with press of a button Maximum Rigidity by Design Double column design prevents torsion and flexing during operation Rail-guided demounting tool and bead breaker discs for maximum stability Industrial components for high durability All tools controlled pneumatically, no Bowden cables Integrated Center Wheel Lift Lifts wheels directly onto center post No moving or lifting of heavy wheel Allows technician to stay on one side of the machine Automatically descends with release of pedal Supports wheels up to 80kg Pneumatic Bead Pushing Arm and Double Bead Breaker Discs Premium travelling bead pusher arm to keep bead in drop center during rotation Easier handling of UHP and runflat tyres Pusher arm mounted to column instead of tool arm to prevent tool movements when force is applied Bead breaker discs operated by two independent cylinders for more flexibility Clean and Intuitive Operating Console: Minimal buttons to reduce complexity Joystick for better control of leverless demounting tool Separate button for rim size adjustment Ergonomic height BeadLock Pro included: Prevents hard tyres from rotating on the rim Protects TPMS sensors during mounting phase. Upgrade Options: Tubeless inflation kit Bottom mounting tool for soft tyres WDK-Approved: Secure mounting and demounting of UHP and runflat tyres Scope of deliveries: 1x BeadLock Pro 3x upper protection leverless tool 2x lower protection leverless tool 2x rubber protection center post 1x pin for reversed wheels 1x Brush 1x Plastic lever 1x WDK RFT/UHP bead clamp 230V plug Technical data: Length 2000 mm Height 1950 mm Width 1300 mm Max. wheel diameter 1200 mm Max. rim diameter 33 " Min. rim diameter 10 " Motor power 1,5 kW Bead breaker force 12000 N Max. wheel width 380 mm Max. wheel weight 80 kg Rotation speed 0 - 18 U/min Space requirement width 1502 mm Operating pressure 8 - 10 bar
