Product info

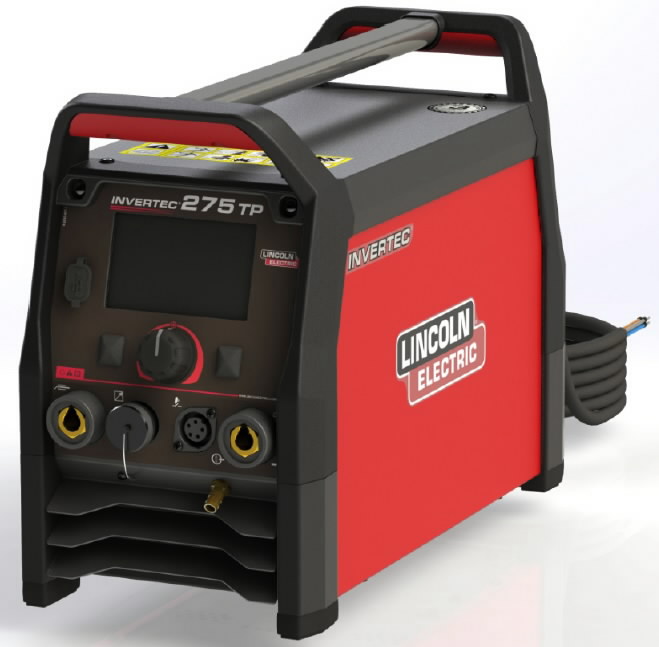

The Invertec® 275TP is a new generation TIG inverter which is the next step in professional welding offering excellent welding processes and high performance, to increase productivity.
Welding processes:
Welding with covered electrodes (MMA), TIG- direct current welding and TIG pulse welding.
"Tack for thin" function is ideal for spot welding activities multiple and repetitive where it is essential to create a uniform, controlled look.
Synergic TIG mode will set all correct parameters for an easy and qualitative weld.
Kit also includes:
• Input cable 3 m (no plug)
• Gas hose 2 m
• Ground cable with clamp 3 m
• Metallic clips to fix the hose
• USB key with user manual
• Quick Start papers
Invertec 275TP brochure_ENG
User manual_RU
Input - 400V ±15%, 3Ph 50/60Hz, generator ready.
Light weight - just 16kg.
Welding amperage - 5 - 270A.
Duty cycle - 270A@40% / 230A@60% / 200A@100%.
USB connectivity provide:
- Full system update & diagnostics.
- Transfer settings between machines.
- Simple welding data collection on USB (start time, average current, average voltage, arc time, welding mode/job number, job name).
- Weld quality data monitoring (data on TFT user interface screen or CSV file transfer)
- Software updating.
Full 3-year warranty.
