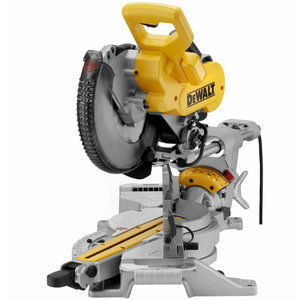

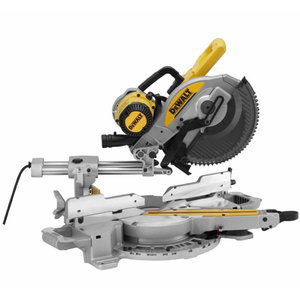

Crosscut and mitre saw DWS727, 250mm

Power Input: 1675 Watts Power Output: 750 Watt Blade Speed: 4000 rpm Blade Diameter: 250x30 mm Bevel Capacity: 49 ° Mitre Capacity [right/left]: 60/50 ° Cutting Capacity at 90°/45° (W x H) 305x50 mm Cutting Capacity at 90°/90° (W x H) 305x77 mm Cutting Capacity at 90°/90° (W x H) mm Cutting Capacity at 45°/90° (W x H) 210x77 mm Cutting Capacity at 45°/90° (W x H) mm Cutting Capacity at 90°/45° (W x H) mm Max. Cutting Capacity at 45°/45° 210x50 mm Max. Depth of Cut [Saws] 150 mm Weight: 22 kg Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right Compact and lightweight design characteristics deliver a saw with application focused capacities which is easy to transport around the jobsite The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles Linear 32mm horizontal rails with roller bearings provide maximum precision when cutting materials up to 305 mm wide Base and fence designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy in key applications Machined side handles meet latest IEC table requirements and improve portability and handling whilst providing a stable, base for wider material The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity Intuitive bevel lock with machined stops provides accurate and simple setting of bevel angles up to 49° left and right AirLock compatible dust extraction improves cut line visibility and provides cleaner and safer jobsites Scope of delivery: 32 tooth blade, blade spanner, dust bag
