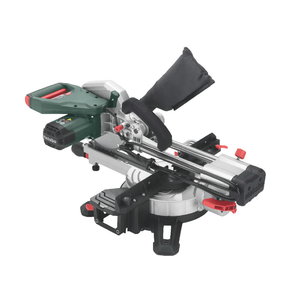

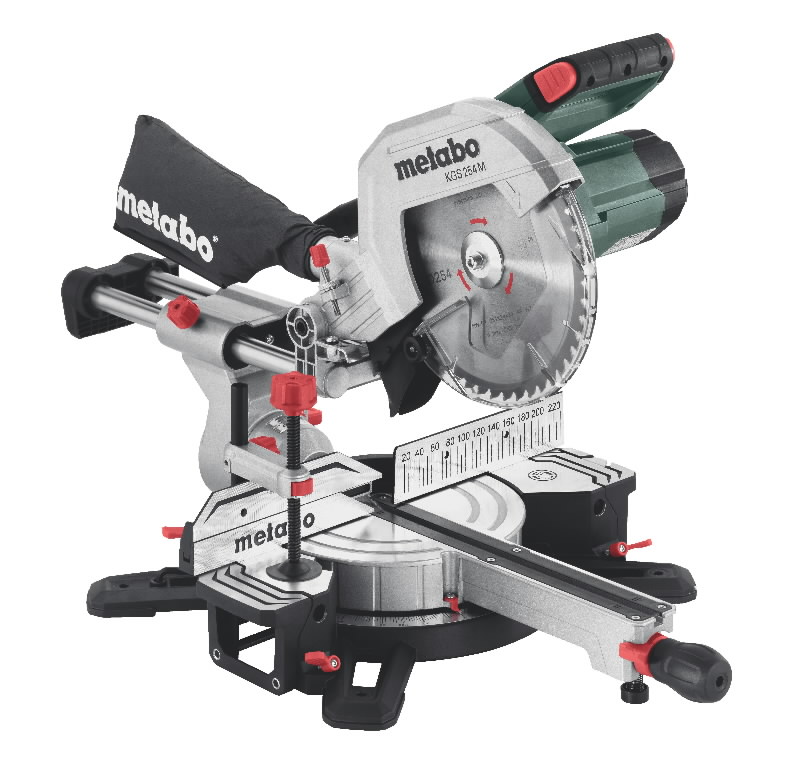

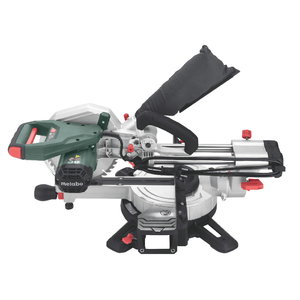

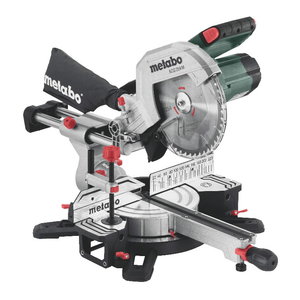

Crosscut and mitre saw KGS 254 M

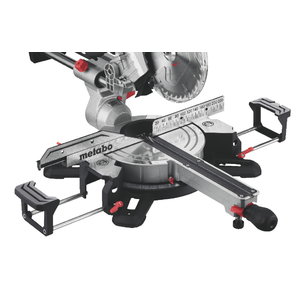

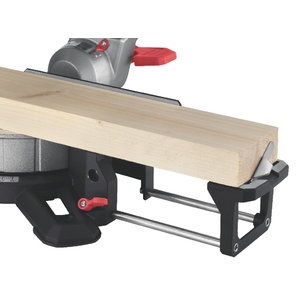

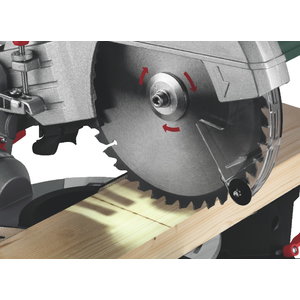

Dimensions L x W x H: 726 x 485 x 543 mm Maximum cutting width 90°/45°: 305 mm/215 mm Maximum cutting depth at 90°/45°: 92 mm/47 mm Maximum cross-section of the workpiece - Straight cut 90°/90°: 305 x 92 mm - Double mitre 45°/45°: 215 x 47 mm Turntable setting left/right: 50 °/50 ° Saw blade tilt left/right: 47 °/2 ° Saw blade: Ø 254 x 30 mm Rated input power S1 100%: 1.450 W Rated input power S6 20%: 1.800 W Idle revolution: 4.500 /min Revolutions at rated load: 3.200 /min Weight: 16,1 kg Cable length: 2 m Crosscut and mitre saw of the mobile M-class with sliding function - light, precise, user-friendly Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED Large cutting capacity thanks to sliding function for wide work pieces Turntable with fast, precise setting of common angles using stop points Saw blade inclination from -2 to 47°, therefore also suited for undercuts Robust die-cast aluminium design for the highest demands Effective dust extraction via integrated dust scoop Soft start for long service life of motor and drive Extendable table width extensions, also removable to put underneath extremely long work pieces Quick-action clamp for secure fixing of the work piece from the top or front Depth guide for easy creation of grooves All scales and operating elements are visible from the working position and can be operated intuitively Ergonomic handle areas for carrying with one or two hands Scope of delivery Saw blade "precision cut wood - classic"", 254x30 Z48, 2 Table length extensions, Length Guide, Material clamp, Tool for saw blade change, Cable winder, Chip Collection Bag
