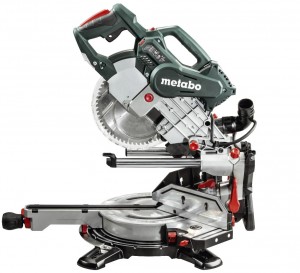

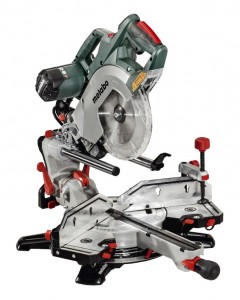

Mitre saw KGSV 72 Xact SYM, angle function

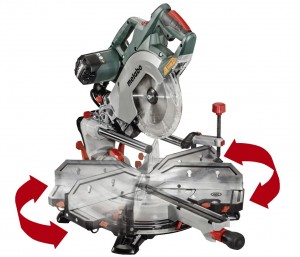

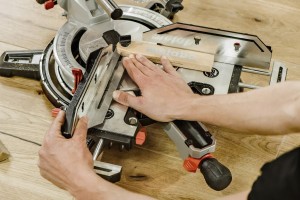

The new KGSV 72 Xact SYM mitre saw is a mobile all-rounder for floorers: It is the world's only saw to combine the classic functions of a mitre saw with a symmetrically adjustable stop system. Thanks to this patent-pending combination, users can accurately cut panels and also skirtings. The user can saw accurate mitres quickly by transferring angles directly from the bevel without any calculating and measuring thanks to the symmetrically adjustable stop system. The saw is constructed with integrated traction bars that do not extend rearwards making it extremely compact and easy to transport. With its finetoothed saw blade and traction function guided by bearings on both sides, it delivers precise cutting results in floor panels up to 305 mm, skirtings and aluminium profiles. Dimensions: 660 x 540 x 415 mm Cutting capacity 90°/90°: 305 x 72 mm Cutting capacity 45°/45°: 215 x 42 mm Turntable setting left/right: 50°/50° Saw blade tilt left/right: 47°/47° Saw blade: 216 mm Rated input power (S6 20%): 1,800 W No-load speed: 2,200 – 6,300 /min Cutting speed: 25 – 70 m/s Angle stop system inside/outside: 0 – 50° Weight (without mains cable): 18.3 kg Double line laser Extremely compact thanks to incorporated traction bars, no space required behind the saw Symmetrically adjustable stop system for time-saving and accurate sawing of mitres Speed control for extended range of application, e.g. for cutting aluminium profiles and plastics Scope of delivery: Carbide saw blade, 2 integrated table width extensions, material, clamp, tool for saw blade change, cable winder, angle bevel
