Product info

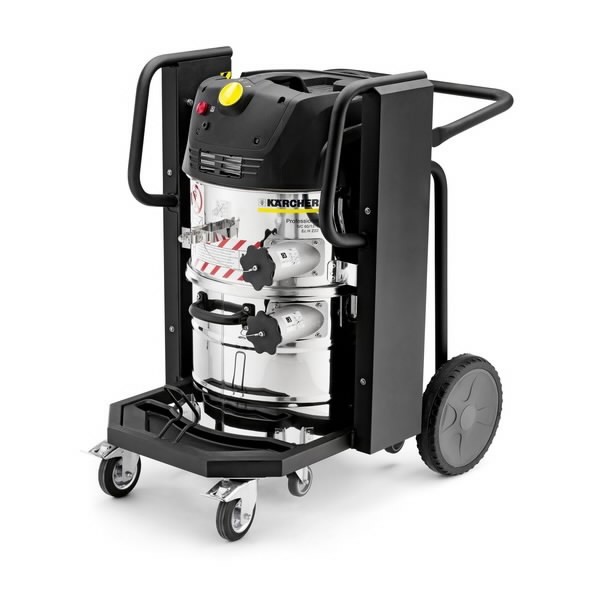

Explosion-proof industrial vacuum IVC 60/12-1 Ec H Z22 is used wherever special safety precautions must be taken due to the conditions. The compact class machine is certified for use in ATEX Zone 22 and has a 2-stage filter concept, which comprises a safety filter sack (BIA-C Class M) and a flat pleated filter for dust filter class H.This also makes it suitable for vacuuming hazardous, even carcinogenic, dusts.
Technical data
Current type (Ph/V/Hz)1 / 220 - 240 / 50 - 60
Air flow (l/s/m³/h)39 / 140
Vacuum (mbar/kPa)223 / 22,3
Container capacity (l)60
Rated input power (kW)1
Filter area (m²)0,95
Nominal diameter of connectionID 70
Nominal diameter of accessoryID 40
Sound pressure level (dB(A))76
Weight without accessories (kg)59
Weight incl. packaging (kg)83,4
Dimensions (L × W × H) (mm)970 x 690 x 995
