Product info
For cutting of all metals - stainless steel, aluminum, mild steel, non-ferrous metals also with painted surface.
From thin sheets to heavy plates.
Pilot ARC-Controller: Only after ignition of the arc the set welding current is released.
With 2- and 4-stroke function.

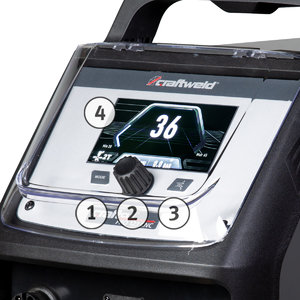

Precise setting and display of welding parameters via LC display.

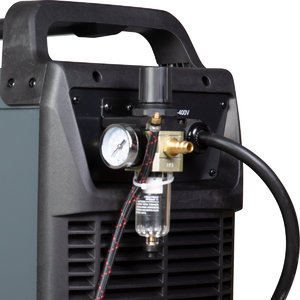

Integrated filter pressure regulator for setting the cutting pressure.
Technical description.
Maximum separating cutting power:
- steel ST37 or similar ~50mm;
- aluminium ~40mm;
- stainless steel ~50mm;
Maximum quality cutting:
- steel ST37 or similar ~40mm;
- aluminium ~35mm;
- stainless steel ~ 40mm;
Supply voltage 400V.
Current control range 20-120A.
Air consumption 200 l / min.
Required air pressure 5 bar.
The set includes:
Plasma torch BT CUT 125 CNC
Ground cable 4m, 12mm² with ground clamp 300 A.
- Weight 32.4 kg
- Weight with package 35.6 kg
- Dimensions (with package) 41 x 79 x 57 cm
- Sales unit pcs
- GTIN / EAN 4036351363453
- Manufacturer part number 1365125
