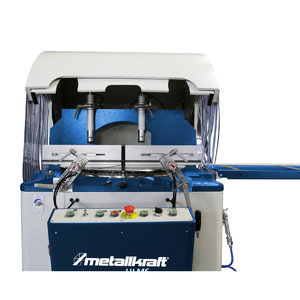

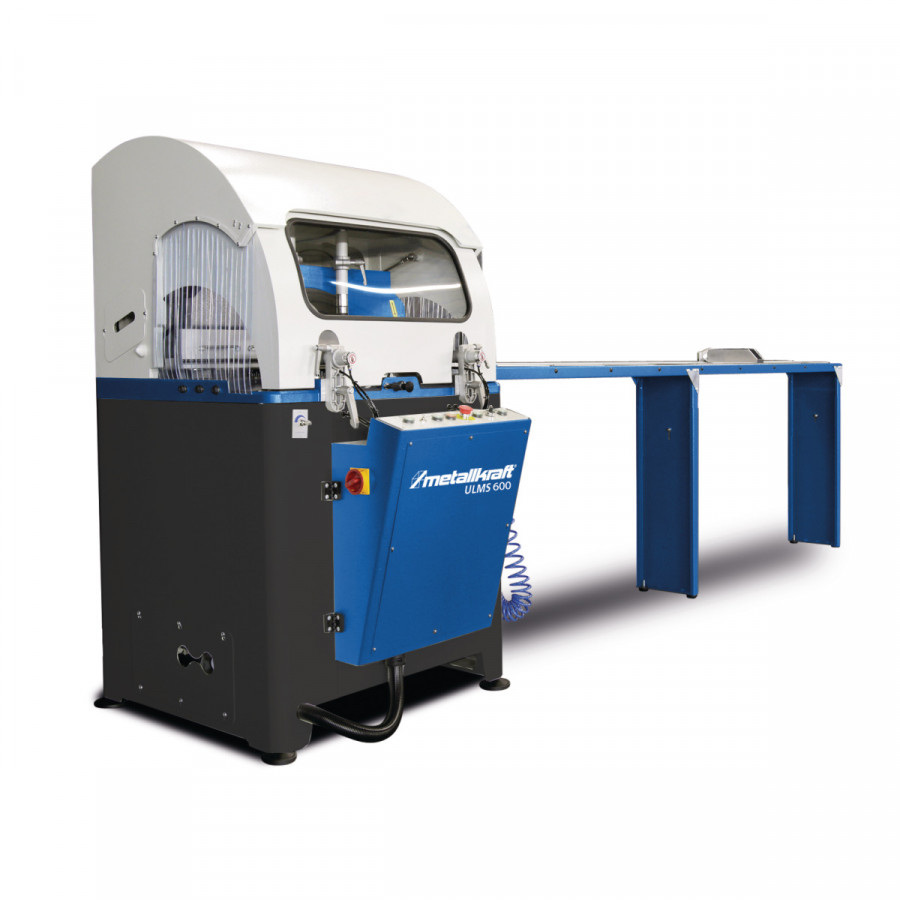

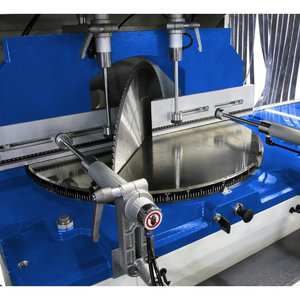

Light alloy crosscutting saw with rising blade ULMS 600

For cutting aluminum, light alloys, thermosetting plastics and wood For miter cuts from -45 to +45 degrees Feed of the saw blade steplessly adjustable Pneumatic vertical and horizontal clamping by 4 vices Starting the sawing process with two-hand control Integrated minimum quantity lubrication High working safety due to sawing operation with closed hood (equipped with contact switch) Simple miter adjustment due to mounted turntable Saw blade speed(s) 2193min¯¹ Saw blade diameter 600mm Saw blade bore 30 – 32mm Saw blade thickness 4.7mm Miter angle -67.5 / -45 / -30 / -22.5 / - 15 / 0 / 15 / 22,5 / 30 / 45 / 67.5° Exhaust connector diameter 2 x 100mm Length (product) approx. 945mm Width/depth (product) approx. 1230mm Height (product) approx. 1675mm Net weight approx. 331kg Drive motor output 3.0kW Total current draw 15A Supply voltage 400V Mains frequency 50 – 60Hz EMV class A Air consumption approx. 58l/min Pneumatic operating pressure 6 – 8bar Cutting capacity 0° (square) solid material 195 x 195mm Cutting capacity -45° (square) solid material 180 x 180mm Cutting capacity +45° (square) solid material 180 x 180mm Delivery Contents: 2 x Saw blade 600 x 30 x 4 mm Z 144 Operating tool Coolant tank Pneumatic gun and spiral hose
