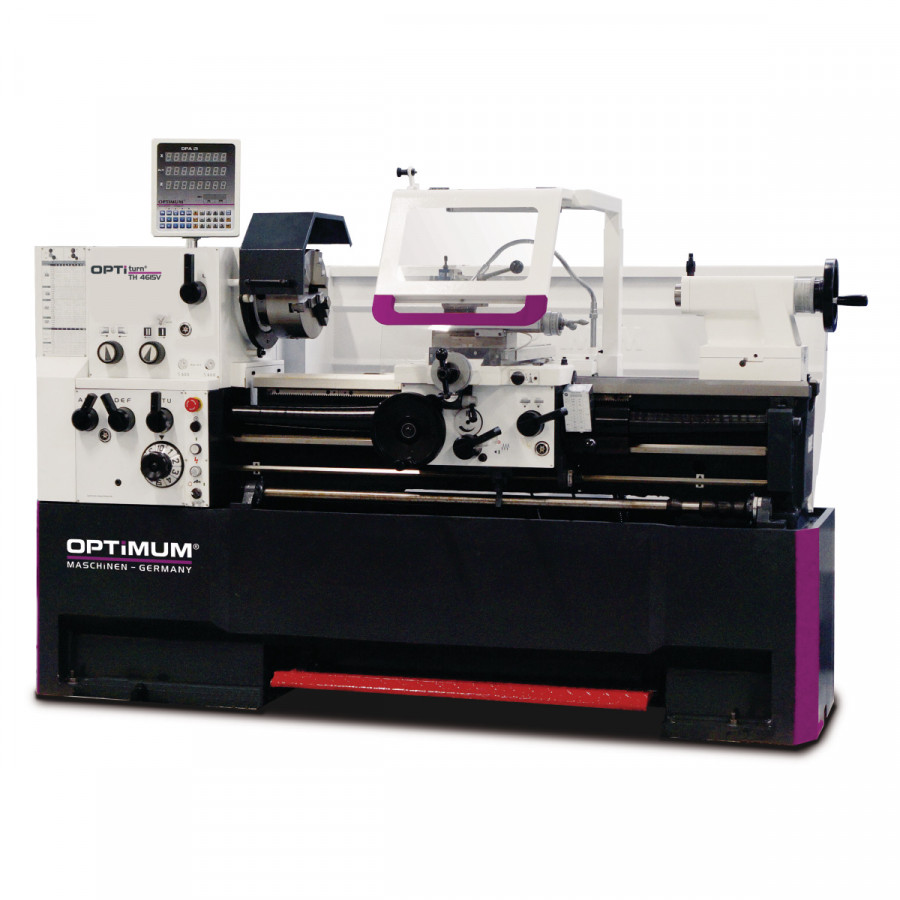

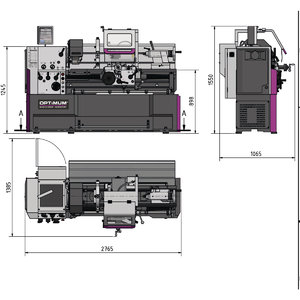

Metal lathe OPTIturn TH 4615V

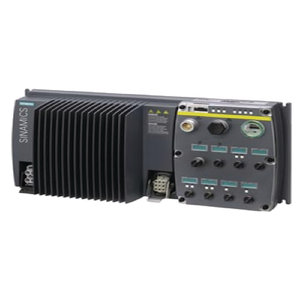

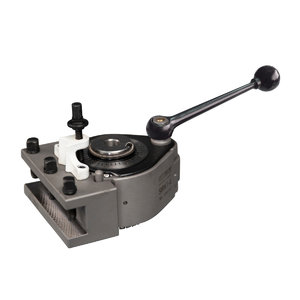

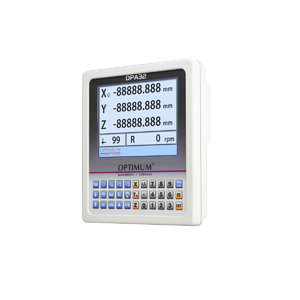

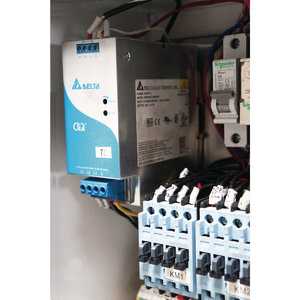

Unique in precision and operation with Siemens Inverter Vario drive Hardened and ground Z-axis guideway Guaranteed concentricity of the spindle nose ≤ 0.015mm Shafts, Wheels and main spindle run in an oil bath Lead screw cover Precisely machined slide All guides can be adjusted using wedge strips Mechanical longitudinal feed cut-off of the bed slide with four adjustable eccentrics Right-hand/left-hand travel on the bed slideright/left rotation on the bed slide switchable via switching spindle Two-channel safety electronics Central lubrication in the bed slide Adjustment range top slide ± 90° Smooth-running gear wheels, hardened and ground with 2 adjustable precision tapered roller bearings Switch with life cycle calculation, tested according to EN ISO 13849 Large dimensioned chip guard with integrated LED machine lamp Handwheels with adjustable fine scaling 0,04 / 0.02mm Safety handwheels with disengagement function in accordance with EN23125 in the X and Z axes High-speed feed gearbox in closed design, gears and shafts hardened and ground, running in an oil bath in precision bearings Adjustable scale of the thread gauge Tailstock for taper turning adjustable ± 10mm Tailstock quill and handwheel with adjustable fine scaling 0,025mm Quick, easy and tool-free adjustment of the tailstock using a clamping lever Cable routing via energy chain Heavily ribbed prism bed, induction-hardened and precision-ground from gray cast iron Coolant device with separate coolant tank with level indicator and oil separator; Easy and complete emptying and cleaning in accordance with DIN Emergency stop device with foot actuation Quick-change steel holder 5-B included in scope of delivery Steel holder 25x120 type D for square chisel 20mm included in scope of delivery Dimensions and weights: Length (product) approx. 2765mm Width/depth (product) approx. 1065mm Height (product) approx. 1550mm Net weight approx. 2020kg Work areas: Center height 230mm Distance between center 1560mm Swing diameter above machine bed 460mm Swing diameter in bed bridge 690mm Swing diameter above planing slide 270mm Turning length in bed bridge 240mm Bed width 300mm Speed range: Speed control electronically adjustable Number of gears 2 Speed range 30 – 2000min¯¹ Electrical Data: Drive motor output 7,5kW Supply voltage 400V Mains frequency 50Hz Total rated value 8.5kW Cooling lubricant system: Cooling lubricant system coolant pump output 125W Standards and certifications: Standard DIN EN 55011 EMC level C3 Spindle: Spindle chuck Camlock DIN ISO 702-2 No. 8 Spindle bore 80mm Tool holder max. chuck height 25mm Spindle cone MT 7 Tailstock: Tailstock chuck MT 4 Tailstock quill stroke 130mm Tailstock quill diameter 60mm Pitches: Metric pitch 0,1 – 14mm/rev Number of metric pitches 41 Imperial pitch 112 – 2Gg/1" Number of imperial pitches 41 Diametrical pitch 4 – 112DPI Number of diametrical pitches 50 Modular thread pitch 0,1 – 7mm/rev Number of modular thread pitches 34 Travel: Travel upper slide 125mm Travel cross slide 285mm Travel carriage saddle 1305mm Feed: Longitudinal feed range 0,031 – 1,7mm/rev Number of longitudinal feeds 42 Flat feed range 0,014 – 0,784mm/rev Number of flat feeds 42 Delivery Contents: Fixed steady rest aperture Ø 25 - Ø 178mm Rotating steady rest aperture Ø 19 - Ø 114mm LED machine light Adapter MK7-MK4 Non-rotating center point MK4 Non-rotating, but temperature-resistant center point MK4 Quick-change steel holder 5-B Steel holder 25x120 type D for square chisel 20mm Thread watch Set of change gears Initial machine filling with quality oil Operating tool Equipment: Digital position indicatorDPA 32
