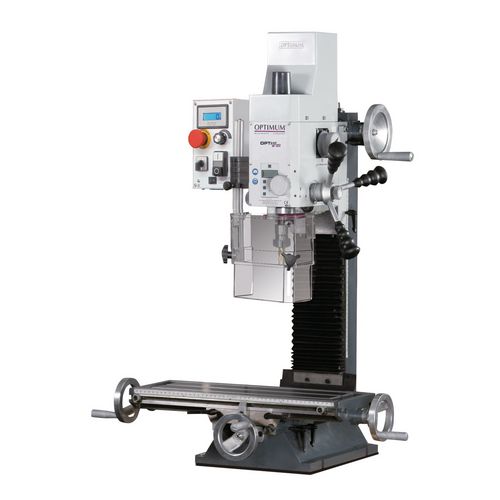

Drilling-milling machine OPTImill BF 20Vario

Sturdy design with electronically infinitely variable drive and longer cross table Drilling/milling output: Max. size milling head 63mm Max. size shaft milling cutter 20mm Drilling performance steel (S235JR) 16mm Continuous drilling performance steel (S235JR) 12mm Electrical Data: Supply voltage 230V/50Hz Milling table horizontal: Horizontal milling table length 500mm Horizontal milling table width 180mm Min. clearance vertical spindle - horizontal milling table 0mm Max. clearance vertical spindle - horizontal milling table 375mm Horizontal milling table T-groove size 12mm Horizontal milling table T-groove number 3 Horizontal milling table T-groove spacing 63mm Horizontal milling table max. load bearing capacity 40kg Travel: Travel X axis manual 280mm Travel Y axis manual 175mm Travel Z axis manual 280mm Vertical spindle: Vertical spindle reach 185mm Vertical spindle spindle chuck MT 2 / M 10 Vertical spindle speed range 90 – 1480 / 150 – 3000min¯¹ Vertical spindle swivel range milling cutter head Z - X plane ± 90° Vertical spindle number of gears 2 Vertical spindle speed control electronically adjustable Vertical spindle tightening bar M 10 Vertical spindle quill stroke 50mm Vertical spindle drive motor output normal operation 0.85kW Delivery Contents: Conical mandrel MK 2, B16 Pulling rod M 10 operating tool
