Mobile stocker‘s ladder 60°, 5 steps 1,25m 2230

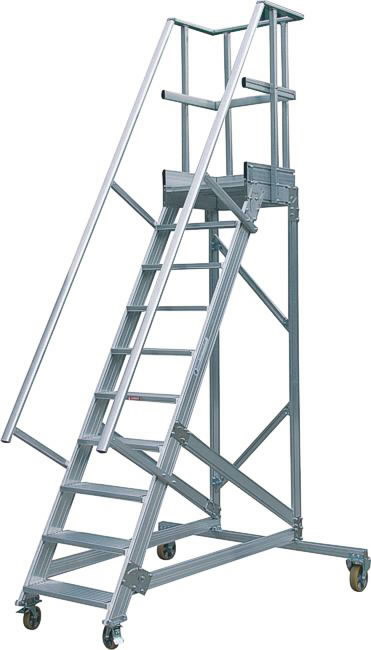

Mobile podium,step angle 60° Step width optionally 600, 800 or 1,000 mm. Handrails on both sides as standard. 1,100 mm high guardrail on platform with knee and foot rail. Platform length 500 mm. Extension for aluminium profile steps and grating platforms in steps of 500 mm. Where aluminium chequer plate is used intermediate sizes are possible. Aluminium profile steps 200 mm deep, alternatively aluminium or steel grating steps 240 mm deep at additional cost. Front or side exit on request. Chassis on step section = Ø 125 mm castors with brakes, chassis on support section = mobile cross-beam with Ø 160 mm fixed castor. Outer step width incl. handrail on both sides = step width+150 mm. Low play castor bearings, therefore extremely stable. Permissible load of step 150 kg, permissible load total 150 kg/m² (max. 300 kg). For use only by one person. Not available on stock, production on order. Shipped in subassemblies pre-assembled in the factory. Platform height 1,25m Step width 800mm.
